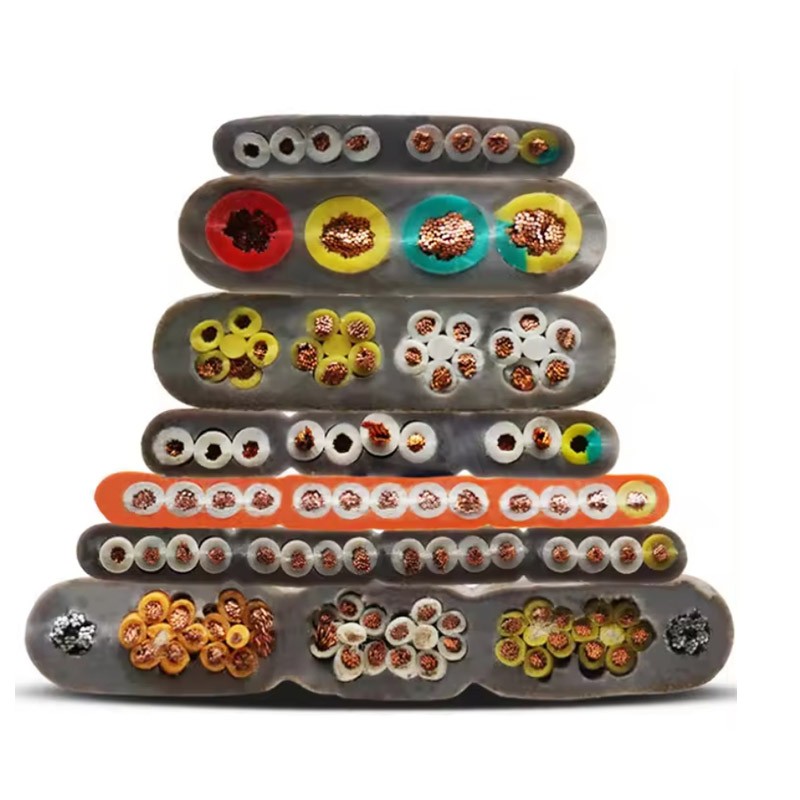

H05VVD3H6-F H05ZZD3H6-F power and signal Parallel Flat Travelling Cable

H05VVD3H6-F H05ZZD3H6-F power and signal Parallel Flat Travelling Cable,In the realm of electrical engineering, selecting the appropriate cable for specific applications is crucial for ensuring performance and safety. The H05VVD3H6-F and H05ZZD3H6-F parallel flat travelling cables are specifically designed to transmit power and signals in environments where space is limited and flexibility is essential. These cables are often used in systems requiring frequent bending and movement, such as elevators and conveyor belts. This article will delve into the structure, features, applications, and provide a comparative analysis of these two cable types.

Structure of H05VVD3H6-F and H05ZZD3H6-F Cables

H05VVD3H6-F Cable:

• Conductor: This cable uses finely stranded bare copper conductors, which provide excellent conductivity and flexibility, essential for dynamic applications.
• Insulation: The insulation is made from PVC (Polyvinyl Chloride), which offers good electrical insulation properties and flexibility.
• Sheathing: The outer sheath is also made from PVC, providing adequate protection against mechanical stress and environmental factors.

H05ZZD3H6-F Cable:

• Conductor: Similar to H05VVD3H6-F, this cable also uses finely stranded bare copper conductors for high conductivity and flexibility.
• Insulation: The insulation in H05ZZD3H6-F is made from low smoke zero halogen (LSZH) material. LSZH insulation emits fewer toxic fumes and smoke when exposed to fire.
• Sheathing: The outer sheath is also made from LSZH, enhancing the cable’s fire-resistant properties and making it suitable for use in areas with strict fire safety requirements.

Features of H05VVD3H6-F and H05ZZD3H6-F Cables

H05VVD3H6-F Cable:

• Flexibility: Designed for applications requiring frequent bending, making it suitable for dynamic environments.
• Durability: PVC insulation and sheathing provide good protection against wear and tear, mechanical stress, and environmental factors.
• Cost-Effective: Generally more affordable due to the use of PVC materials.

H05ZZD3H6-F Cable:

• Fire Safety: LSZH insulation and sheathing ensure minimal smoke and toxic fume emission in case of fire, enhancing safety in populated or enclosed spaces.
• Flexibility: Maintains excellent flexibility, suitable for dynamic applications where cables need to bend and move frequently.
• Durability: LSZH materials provide enhanced protection against mechanical stress and environmental factors compared to standard PVC.

Applications of H05VVD3H6-F and H05ZZD3H6-F Cables

H05VVD3H6-F Cable:Elevator Systems: Ideal for power and signal transmission in elevators, where cables need to bend and move constantly.Conveyor Belts: Suitable for use in conveyor systems, providing reliable power and signal transmission in dynamic environments.Indoor Use: Commonly used in indoor applications where fire safety is not the primary concern.

H05ZZD3H6-F Cable:Public Buildings: Suitable for use in schools, hospitals, and office buildings where fire safety regulations are stringent.Transport Systems: Used in public transport systems like subways and trains, where low smoke and low toxicity are critical in case of fire.High-Risk Areas: Ideal for applications in environments where fire risk is high and minimal smoke and toxic emissions are crucial for safety.

Comparison Between H05VVD3H6-F and H05ZZD3H6-F Cables

While both cables are designed for dynamic applications requiring frequent bending, there are key differences:Fire Safety: H05ZZD3H6-F is superior in terms of fire safety due to its LSZH materials, which emit minimal smoke and toxic fumes compared to the PVC materials in H05VVD3H6-F.Cost: H05VVD3H6-F is generally more cost-effective, making it a suitable choice for applications where budget constraints are a primary concern and fire safety requirements are not as stringent.Environmental Resistance: Both cables offer good environmental resistance, but the LSZH materials in H05ZZD3H6-F provide enhanced durability against harsh conditions.

H05VVD3H6-F H05ZZD3H6-F power and signal Parallel Flat Travelling Cable,Choosing between H05VVD3H6-F and H05ZZD3H6-F parallel flat travelling cables depends on specific application needs, particularly concerning fire safety, flexibility, and cost. H05VVD3H6-F is an excellent choice for cost-effective solutions in less fire-sensitive environments, while H05ZZD3H6-F is ideal for high-risk areas requiring stringent fire safety measures. Understanding these differences ensures optimal performance and safety in various dynamic applications, from elevator systems to public transportation and beyond. By selecting the appropriate cable, you can enhance the reliability, safety, and efficiency of your electrical installations.
