ZR-KVVP ZR-KVVRP control cable is a commonly used electrical cable that is widely used in industrial automation control systems. The following is a detailed introduction to the use, structure and characteristics of ZR-KVVP ZR-KVVRP control cable:
ZR-KVVP ZR-KVVRP control cable use
Type
Description
KVV
Control cable with Cu core,flame retardant,PVC insulation and sheath
KVVR
Control cable with Cu core,flame retardant,PVC insulation and sheath,copper wire braided shielding
KVVR
Control soft cable with Cu core,flame retardant,PVC insulation and sheath
KVVRP
Control soft cable with Cu core,flame retardant,PVC insulation and sheath,copper wire braided shielding
KVVP2
Control cable with Cu core,flame retardant,PVC insulation and sheath,copper tape wrapped shielding
KVVP22
Control cable with Cu core,flame retardant,PVC insulation and sheath,steel tape armor
KVVP32
Control cable with Cu core,flame retardant,PVC insulation and sheath,steel wire armor
ZR-KVVP ZR-KVVRP control cable is mainly used to connect sensors, actuators, regulators and other equipment in various control equipment, instruments and automation systems. It is used to transmit control signals and data signals to achieve interlocking control between equipment. , signal collection and transmission. Its main application areas include but are not limited to:
Industrial automation production line
Power system control
Petrochemical field
Steel smelting
Municipal Engineering
achitechive

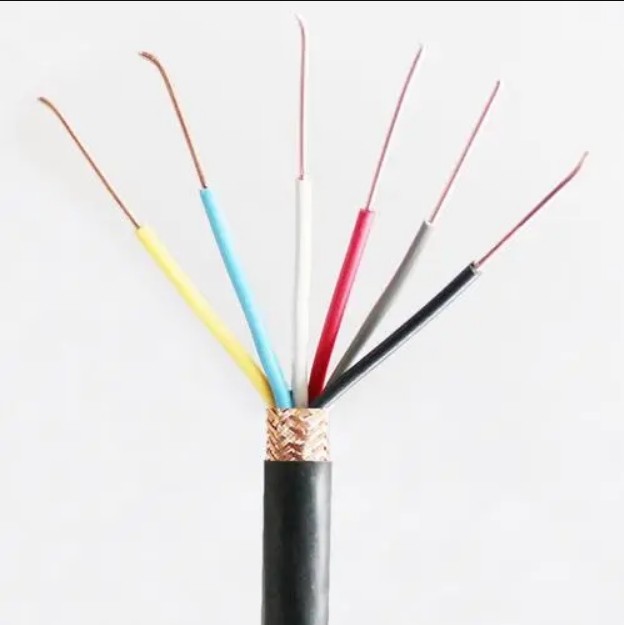

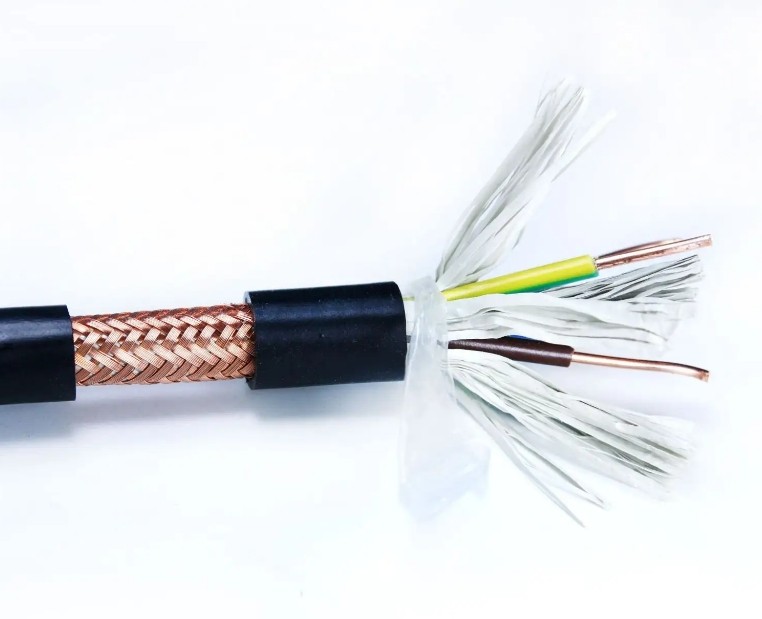

ZR-KVVP ZR-KVVRP control cable structure
The structure of ZR-KVVP control cable usually includes the following parts:
Conductor: Generally, multi-strand thin copper wire or hard copper wire is used, which has good electrical conductivity.
Insulation layer: Covers the outside of the conductor, usually using materials such as PVC (polyvinyl chloride) or XLPE (cross-linked polyethylene) to prevent current leakage.
Braided shielding: The insulation layer is coupled with copper wire braided shielding to reduce external electromagnetic interference and improve the stability of signal transmission.
Sheath: Usually PVC or special wear-resistant material is used to protect the overall structure of the cable and enhance wear resistance.
Features
ZR-KVVP ZR-KVVRP control cable has the following characteristics:
Flexibility: Due to the use of multiple strands of thin copper wire or aluminum wire as the conductor, the cable has good flexibility and is easy to bend and install.
Anti-interference: The braided shielding structure can reduce external electromagnetic interference and ensure the stability of signal transmission.
Wear resistance: The outer sheath is usually made of wear-resistant materials, which can be used for a long time in harsh environments without being easily damaged.
Diversification: According to different usage occasions and requirements, KVVP control cables can have a variety of specifications, models and structures to meet different application needs.
ZR-KVVP ZR-KVVRP control cable conductor size
Nominal cross
section area(mm)
Conductor structure
Pieces/diameter(mm)
Conductor DC resistance at 20℃
Voltage withstand stress
Non tinned
tinned
0.5
1/0.8
36.0
36.7
3.5kv/5min,Insulation without puncture
7/0.30
36.0
36.7
16/0.20
39.0
40.1
0.75
1/0.97
24.5
24.8
7/0.37
24.5
24.8
24/0.20
26.0
26.7
1.0
1/1.3
18.1
18.2
7/0.43
18.1
18.2
32/0.20
19.5
20.0
1.5
1/1.38
12.1
12.2
7/0.52
12.1
12.2
30/0.25
13.3
13.7
2.5
1/1.78
7.41
7.56
7/0.68
7.41
7.56
49/0.26
7.98
8.21
4
1/2.25
4.61
4.70
7/0.85
4.61
4.70
56/0.30
4.95
5.09
6
1/2.76
3.08
3.11
7/1.04
3.08
3.11
84/0.30
3.30
3.39
10
7/1.35
1.83
1.84
To sum up, ZR-KVVP ZR-KVVRP control cable plays an important role in industrial automation control systems. Its flexibility, anti-interference ability and wear resistance make it a reliable connection medium between various control devices. , providing stable and reliable electrical transmission guarantee for industrial production and equipment operation.
