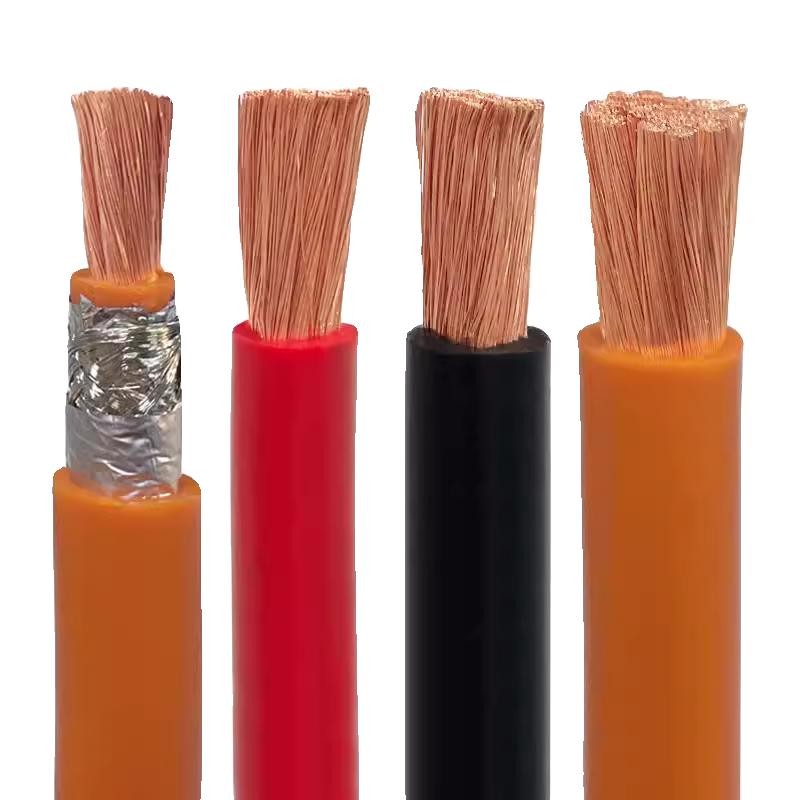

EV car special soft silicone high voltage cable EVP shielded silicone cable used to connect the charging port and battery, inside the battery, battery and engine and other components, as a carrier of power transmission. According to the series, it can be divided into three common specifications: single layer without shielding, single layer with shielding, and double layer without shielding.

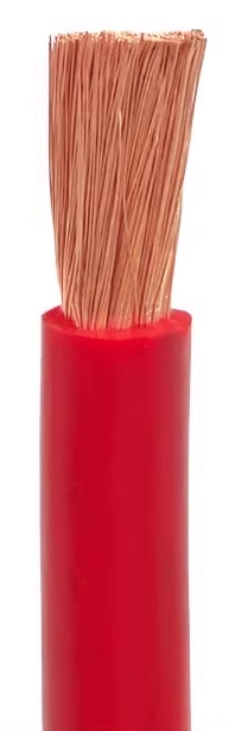

EV car special soft silicone high voltage wire structure
|
Model |
| EV silicone high voltage line | |
|
Working temperature -60℃+200℃ Pressure resistant |
|
| 1500V | |
|
Insulation Silicone rubber conductor |
|
EVP shielded silicone wire structure
|
Model |
| EVP shielded silicone high voltage line | |
|
Working temperature -60℃+200℃ Pressure resistant |
|
| 1500V | |
|
Insulation Silicone rubber conductor |
|
|
Multiple strands of fine pure copper Shield |
|
|
Tinned copper wire braid + aluminum foil |
|
|
serial model |
Size |
conductor diameter |
conductor DC resistance(Ω/km) |
Reference allowable load current |
finished O.D. |
|
EVRP-150
|
2.5mm2 |
2.06 |
7.60 |
30 |
5.80 |
|
|
4mm2 |
2.70 |
4.71 |
40 |
6.80 |
|
|
6mm2 |
3.40 |
3.14 |
52 |
7.50 |
|
|
10mm2 |
4.50 |
1.82 |
70 |
9.20 |
|
|
16mm2 |
5.60 |
1.16 |
95 |
10.80 |
|
|
25mm2 |
7.20 |
0.743 |
130 |
13.20 |
|
|
35mm2 |
8.30 |
0.527 |
160 |
14.50 |
|
|
50mm2 |
10.10 |
0.368 |
210 |
16.50 |
|
|
70mm2 |
12.10 |
0.259 |
260 |
19.00 |
|
|
95mm2 |
14.50 |
0.196 |
320 |
21.60 |
|
|
120mm2 |
15.90 |
0.153 |
370 |
23.60 |
