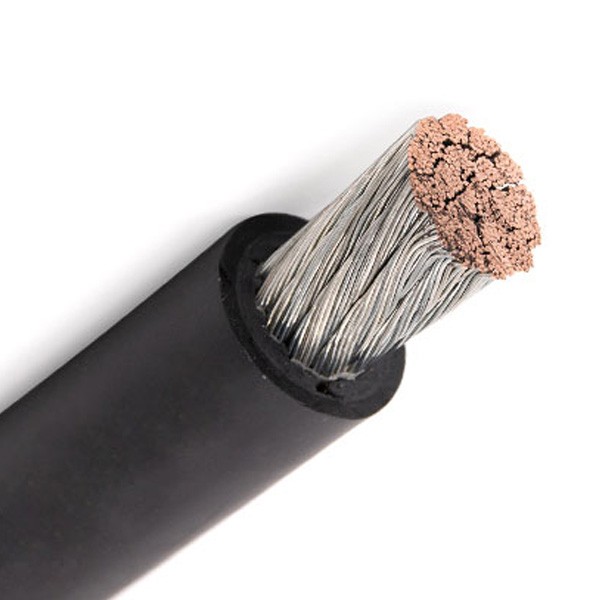

Flexible single-conductor rubber NSGAFÖU 1,8/3 kV cable For track bound vehicles and trackless trolley buses as well as for installations in dry locations, in switchboards and distributors up to 1.000 V as a short circuit and earth fault proof cable at the nominal voltage of Uo / U 1.8 / 3 kV.Wiring of machines, tools, devices, appliances and control cabinets Railway vehicles, buses;short-circuit-proof up to 1000 V in switching stations and power distributors In ducts, tubes, pipes, conduits and closed installation channelsBundled or for connection of movable parts,2PNCT-B 3PNCT-B rubber cable.
Flexible single-conductor rubber NSGAFÖU 1,8/3 kV cable structure

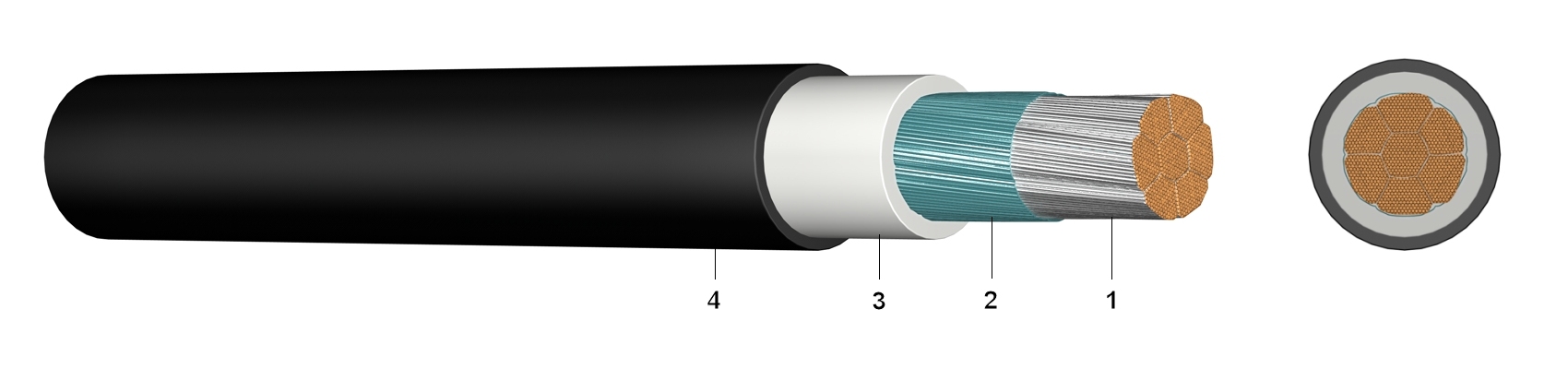

1. ....fine-stranded tinned copper
2.....wrapped with Alu-PT-Film
3.....EPR rubber insulation
4.....outer sheath of polychloroprene, black,abrasion an oil resistant, flame retardant
|
Standards: |
DIN VDE 0250 part 602 DIN EN 60228 class 5 (construction) |
Technical data:
|
Nominal voltage Uo/U |
|
[V] |
1800 / 3000 Volt |
|
Test voltage |
|
[V]AC |
6000 |
|
Temperature range |
in motion |
|
-25°C till +80°C |
|
Operating temperature |
short circuit |
°C |
200 |
|
Short circuit time |
max. |
[sec] |
5 |
|
Bending radius |
one time / fixed |
x diameter |
6 |
|
|
in motion |
x diameter |
10 |
|
Oil-resistant |
standard |
|
EN 60811-2-1 |
|
Flammability |
standard |
|
EN 60332-1-2 |
|
Nominal cross section mm² |
Cond. construction (appr. value) mm |
Overall diameter appr. mm |
Current carrying capacity air A |
Weight appr. kg / km |
|
1,5 |
30 x 0,26 |
6,5 |
30 |
60 |
|
2,5 |
50 x 0,26 |
7,0 |
41 |
70 |
|
4 |
56 x 0,31 |
7,5 |
55 |
90 |
|
6 |
84 x 0,31 |
8,5 |
70 |
120 |
|
10 |
80 x 0,41 |
10,0 |
98 |
180 |
|
16 |
126 x 0,41 |
11,0 |
132 |
250 |
|
25 |
196 x 0,41 |
13,0 |
176 |
390 |
|
35 |
276 x 0,41 |
14,0 |
218 |
470 |
|
50 |
396 x 0,41 |
15,5 |
276 |
625 |
|
70 |
360 x 0,51 |
17,0 |
347 |
880 |
|
95 |
475 x 0,51 |
19,5 |
416 |
1.190 |
|
120 |
608 x 0,51 |
21,5 |
488 |
1.430 |
|
150 |
756 x 0,51 |
23,0 |
566 |
1.750 |
|
185 |
925 x 0,51 |
25,0 |
644 |
2.160 |
|
240 |
1221 x 0,51 |
28,0 |
775 |
2.534 |
|
300 |
1530 x 0,51 |
32,5 |
898 |
3.178 |
For Flexible single-conductor rubber NSGAFÖU 1,8/3 kV cable full technical specifications please refer to the NSGAFOEU datasheets or speak to our technical team for more advice.
