high temperature SiHF silicone cable SiHF-C-Si copper wire braid silicone rubber cable

High temperature SiHF silicone cable SiHF-C-Si tinned copper wire braid silicone rubber cable are critical components in many industries, known for their robustness and adaptability in challenging environments. These silicone insulated cables are designed to meet high standards of safety and performance. This article explores the structure, features, and applications of SiHF and SiHF-C-Si cables, highlighting the differences between these two types to assist professionals in selecting the right cable for their specific needs.

Structure of SiHF and SiHF-C-Si Cables

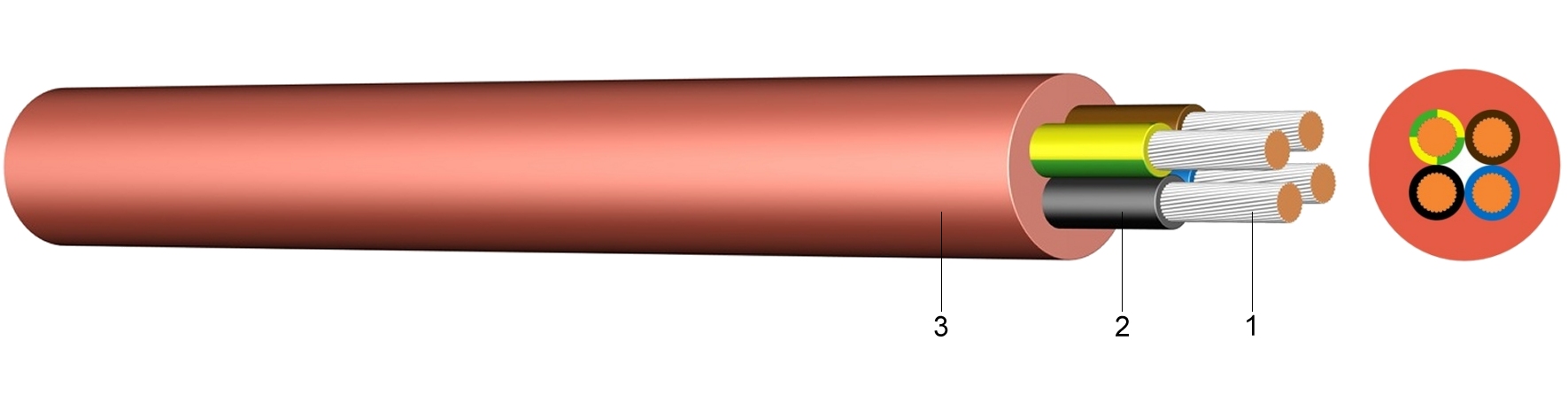

SiHF Cables:

• Conductor: SiHF cables typically feature finely stranded tinned copper conductors, which offer excellent conductivity and flexibility.
• Insulation: The conductors are insulated with silicone rubber, which provides high temperature resistance and excellent dielectric strength.
• Outer Sheath: The outer sheath is also made of silicone rubber, enhancing the cable’s overall resistance to heat, oxidation, and various chemical agents.

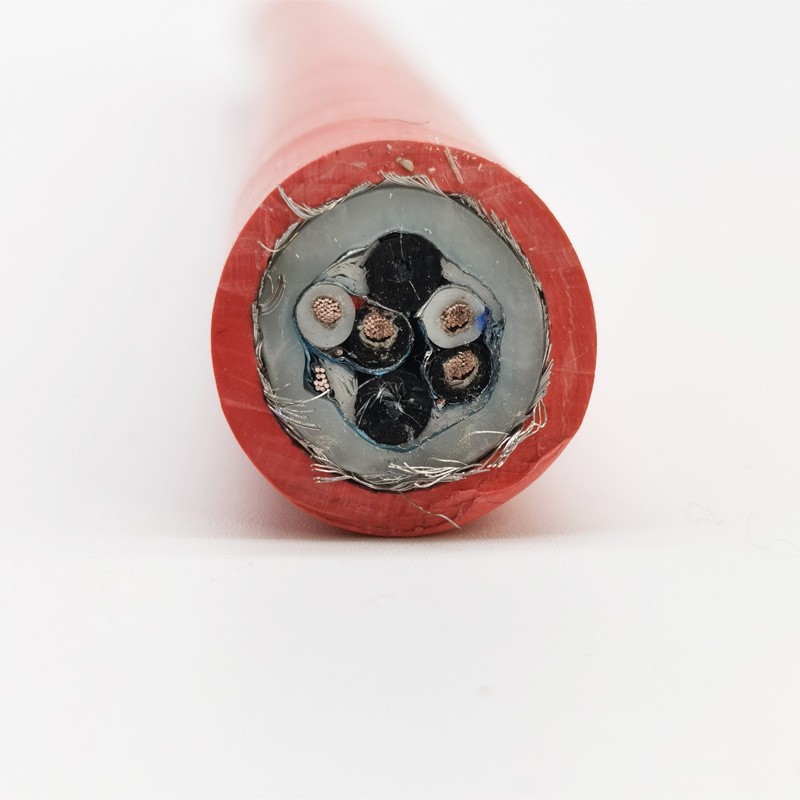

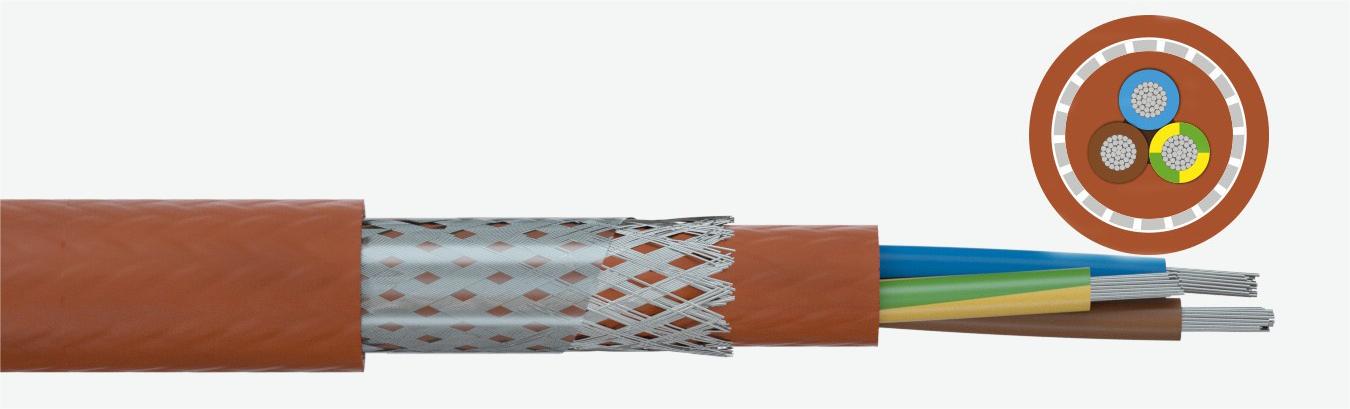

SiHF-C-Si Cables:

• Conductor: Like SiHF, SiHF-C-Si cables use finely stranded tinned copper conductors.
• Insulation: These cables also utilize silicone rubber insulation for each conductor.
• Screening: A key difference is the inclusion of a tinned copper wire braid screen over the insulated conductors, which significantly reduces electromagnetic interference (EMI).
• Outer Sheath: The outer sheath is made of silicone rubber, similar to SiHF cables, but with an additional protective layer over the screening, enhancing the cable's durability and EMI protection.

high temperature SiHF silicone cable SiHF-C-Si tinned copper wire braid silicone rubber cable Key Features

• High-Temperature Resistance: Both SiHF and SiHF-C-Si cables can operate in environments with temperatures ranging from -60°C to +180°C, making them suitable for extreme conditions.
• Flexibility: The fine stranding of the copper conductors makes these cables highly flexible, facilitating installation in tight and complex configurations.
• Chemical and Weather Resistance: Silicone rubber offers excellent resistance to UV light, ozone, and various chemicals, extending the lifespan of these cables in harsh environments.
• EMI Protection: SiHF-C-Si cables provide superior EMI protection due to their copper braid screening, making them ideal for sensitive environments where electronic noise is a concern.

Comparison Between SiHF and SiHF-C-Si Cables

While SiHF and SiHF-C-Si cables share similar basic structures and materials, the key differences lie in their suitability for environments affected by electromagnetic interference. The inclusion of a copper braid screen in SiHF-C-Si cables makes them particularly effective in reducing EMI, which is crucial for maintaining system integrity in electronically noisy environments. Both cables offer excellent high-temperature performance and flexibility, but the enhanced screening of SiHF-C-Si cables provides an additional layer of security for sensitive applications.

high temperature SiHF silicone cable SiHF-C-Si tinned copper wire braid silicone rubber cable represent state-of-the-art solutions in silicone insulated cables, offering unmatched flexibility, temperature resistance, and durability. The choice between SiHF and SiHF-C-Si should be guided by the specific requirements of the application, particularly concerning the need for EMI protection. Understanding the unique properties and benefits of each cable type ensures that engineering professionals can make informed decisions that optimize the performance and reliability of their systems in any industrial, medical, or technological environment. Both cable types play crucial roles in modern industries, ensuring safety and efficiency in operations where standard cables might fail.
