F-CY-JZ F-CY-OZ LiY-CY flex control cable

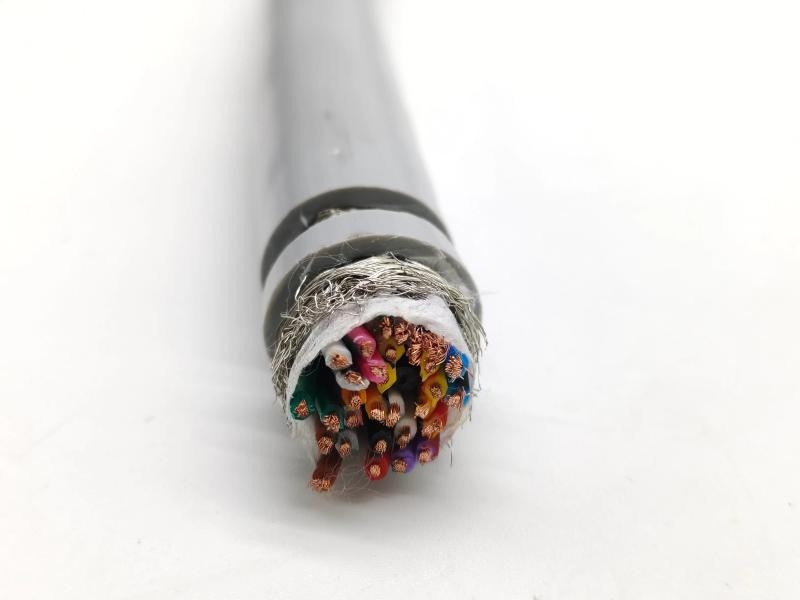

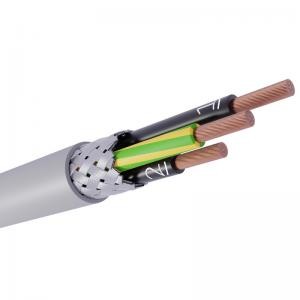

Structure of F-CY-JZ F-CY-OZ  LiY-CY Tinned copper wire braided shielded flex control cable

Conductor: These cables typically feature finely stranded bare copper conductors, ensuring excellent electrical conductivity and flexibility for ease of installation.

Insulation: The conductors are insulated with PVC (Polyvinyl Chloride) or PE (Polyethylene), which provides robust protection against electrical faults and insulation breakdown.

Shielding: One of the defining features of these cables is their comprehensive shielding:

· F-CY-JZ and F-CY-OZ: These cables include a tinned copper braid shield that covers the insulated conductors, significantly reducing electromagnetic interference.

· LiY-CY: This cable typically incorporates a similar tinned copper braid or aluminum foil shield, aimed at protecting signal integrity against external EMI.

Outer Sheath: The outer sheath of these cables is usually made from PVC or PE, offering additional mechanical protection and resistance to environmental factors such as oils, chemicals, and varying temperatures.

F-CY-JZ F-CY-OZ  LiY-CY Tinned copper wire braided shielded flex control cable Key Features

· EMI Protection: The shielding in these cables provides excellent resistance against electromagnetic interference, making them suitable for environments with high electronic noise.

· Flexibility: Despite their robust construction, these cables remain highly flexible, facilitating easy handling and installation in tight spaces.

· Durability: Designed to withstand harsh industrial environments, these cables are resistant to oils, chemicals, and extreme temperatures.

· Safety: The high-quality insulation materials used in these cables enhance safety by preventing electrical leaks and short circuits.

F-CY-JZ F-CY-OZ  LiY-CY Tinned copper wire braided shielded flex control cable Applications

· Industrial Automation: These cables are commonly used in automation systems where precise and uninterrupted data transmission is crucial.

· Control Systems: Suitable for control cabinets, assembly lines, and machine tools where reliable connectivity is needed.

· Measurement and Instrumentation: Used in environments that require accurate data collection and transmission without interference.

· Data Processing Centers: Ideal for facilities that handle large volumes of data and require cables that can protect against data corruption and losses due to EMI.

F-CY-JZ F-CY-OZ  LiY-CY Tinned copper wire braided shielded flex control cable Specifications

While the specifications can vary based on manufacturer and specific use cases, typical characteristics include:

· Voltage Rating: Generally rated for 300/500V.

· Temperature Range: Operable in environments ranging from -30°C to +70°C, making them versatile for different climates.

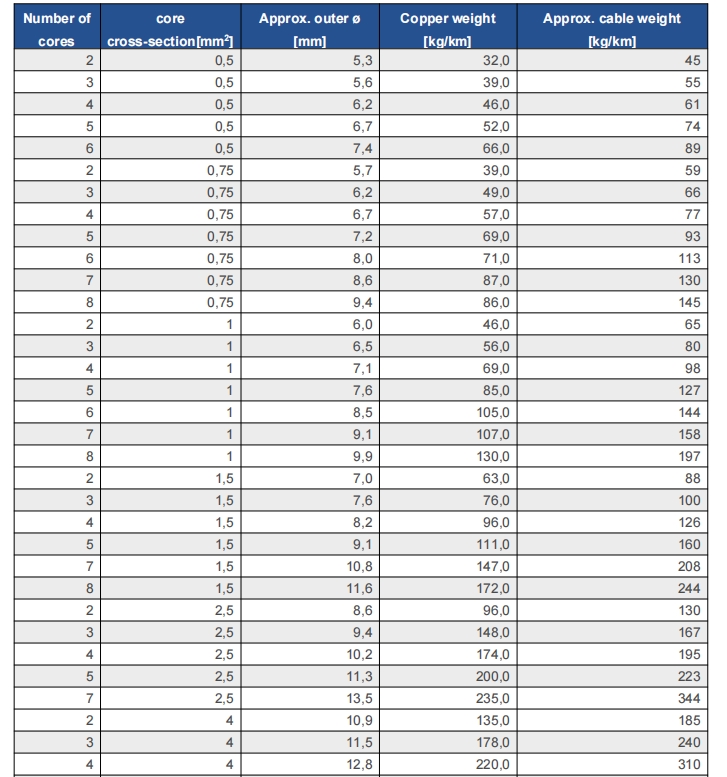

· Conductor and Cable Sizes: Available in multiple sizes and configurations, from small single conductors to large multi-conductor setups, depending on the installation requirements.

Comparison with Standard Control Cables

Compared to standard control cables, F-CY-JZ, F-CY-OZ, and LiY-CY cables offer several advantages:

· Enhanced EMI Protection: The comprehensive shielding in these cables provides better protection against electromagnetic interference, which is crucial in maintaining data integrity in sensitive applications.

· Increased Durability and Safety: The superior materials used in these cables make them more durable and safer than standard control cables, particularly in harsh industrial environments.

· Versatility: These cables can be used in a wider range of temperatures and conditions due to their robust construction and materials.

F-CY-JZ F-CY-OZ  LiY-CY Tinned copper wire braided shielded flex control cable represent an advanced solution for demanding electrical installations where interference, durability, and safety are of paramount importance. Their specialized construction, combined with exceptional shielding and high-quality materials, make them a superior choice over standard control cables, especially in settings that require stringent EMI protection and reliability. For professionals engaged in the design and maintenance of industrial automation, control systems, and data processing centers, these cables provide a reliable, efficient, and safe wiring solution that ensures optimal performance of critical systems.
