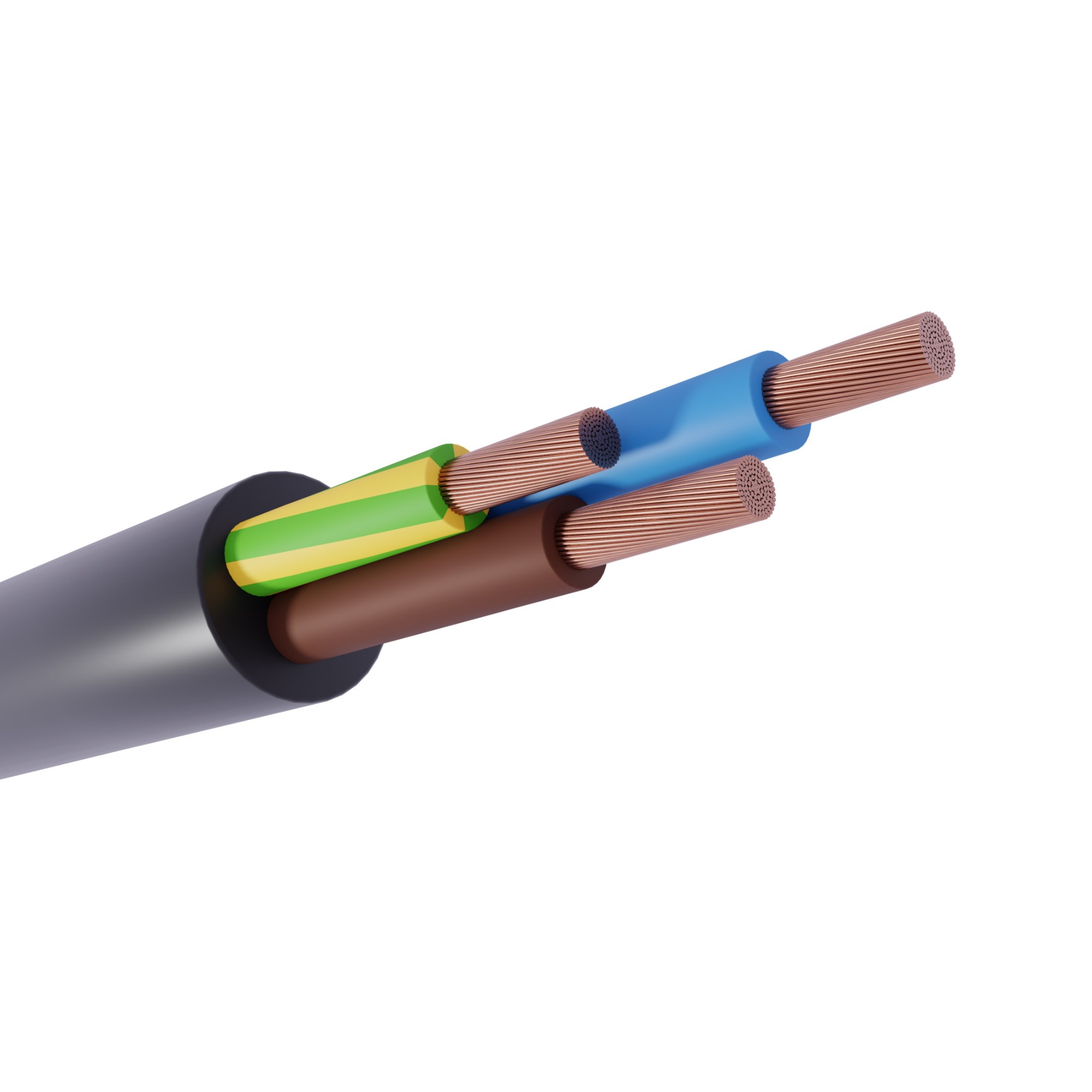

H05RR-F H05RN-F Rubber flexible cable

H05RR-F H05RN-F Rubber flexible cable are specially designed for light to medium-duty applications, providing flexibility and durability in various environmental conditions. Both cables are commonly used in the context of household appliances, tools, and portable devices but come with slightly different specifications and uses. This article outlines the structure, characteristics, and applications of both H05RR-F and H05RN-F cables, with a comparison to help you choose the right cable for specific needs，another common use rubber cable,Neoprene rubber flex welding cable H01N2-D/H01N2-E.

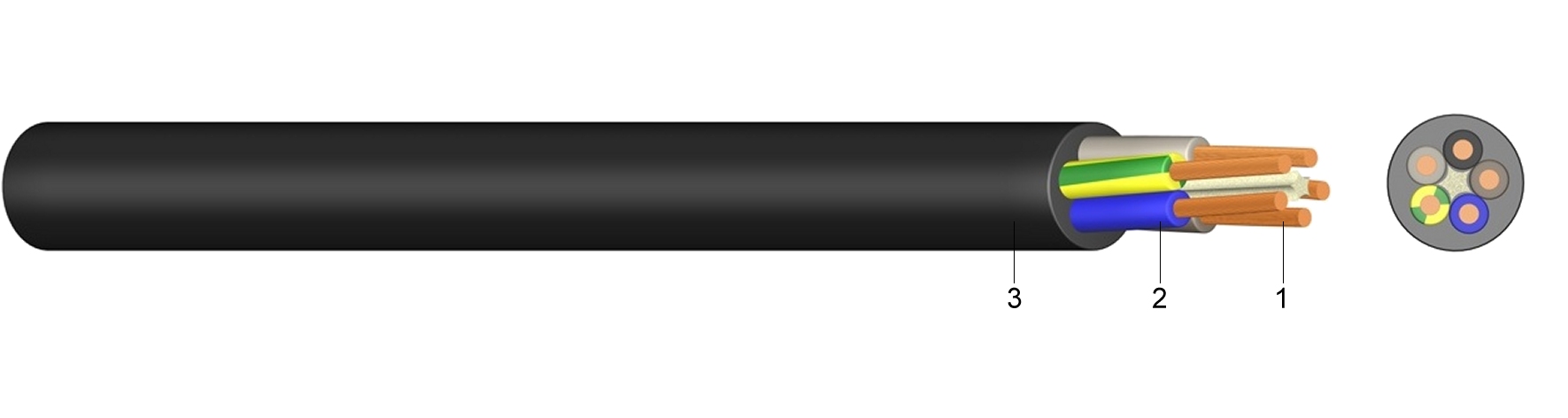

Structure of H05RR-F and H05RN-F Cables

Conductor: Both H05RR-F and H05RN-F cables are constructed with finely stranded bare copper conductors. This construction ensures excellent electrical conductivity and flexibility, which is ideal for applications requiring frequent movement.

Insulation:

• H05RR-F: The insulation is typically made from Ethylene Propylene Rubber (EPR) or another type of synthetic rubber. This material provides good flexibility and durability, suitable for moderate stress.
• H05RN-F: This cable also uses rubber for insulation, but the compound is generally more robust and oil-resistant, such as polychloroprene (Neoprene), which is better suited for tougher environments.

Sheathing:

• H05RR-F: The sheath is made from standard rubber compounds, which provide sufficient protection against abrasion and moisture for indoor and less demanding outdoor environments.
• H05RN-F: The outer sheath of Neoprene or other equivalent synthetic rubber offers enhanced resistance to abrasion, moisture, oil, and various chemicals, making it more suitable for industrial settings and challenging outdoor conditions.

Features of H05RR-F and H05RN-F Cables

Durability:

• H05RR-F cables are designed for lighter duties and can handle moderate mechanical stresses.
• H05RN-F cables, with their tougher sheathing, are capable of withstanding more severe mechanical stresses and harsh conditions, including oil and chemical exposure.

Flexibility: Both cables offer excellent flexibility, which is crucial for tools and portable devices. However, H05RN-F cables are generally slightly stiffer due to their tougher sheath materials.

Weather and Chemical Resistance:

• H05RR-F is suitable for dry and damp environments but is not recommended for prolonged exposure to oils and chemicals.
• H05RN-F excels in outdoor applications and environments where cables might come into contact with oils, fats, and additional chemicals.

Temperature Range: Both cables typically operate within a temperature range of -25°C to +60°C, making them versatile for various climatic conditions.

Choosing between H05RR-F H05RN-F Rubber flexible cable largely depends on the specific demands of the application, including environmental exposure and the level of mechanical stress expected. Understanding the distinct characteristics and advantages of each cable type allows users to make informed decisions, ensuring optimal performance and safety in their electrical installations. Whether used in a domestic setting or a more challenging industrial environment, selecting the correct cable type is crucial for maintaining functionality and extending the lifespan of both the cable and the devices they power.
