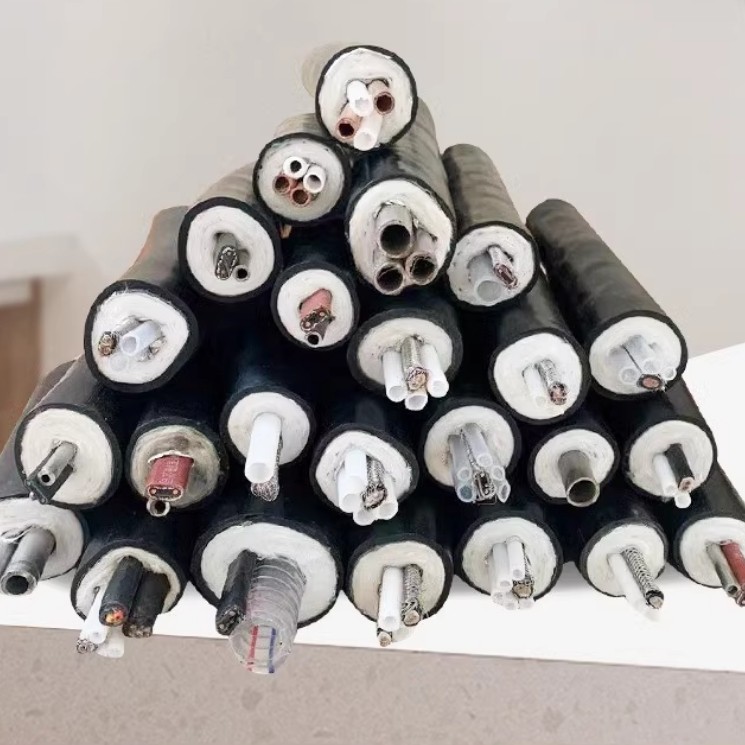

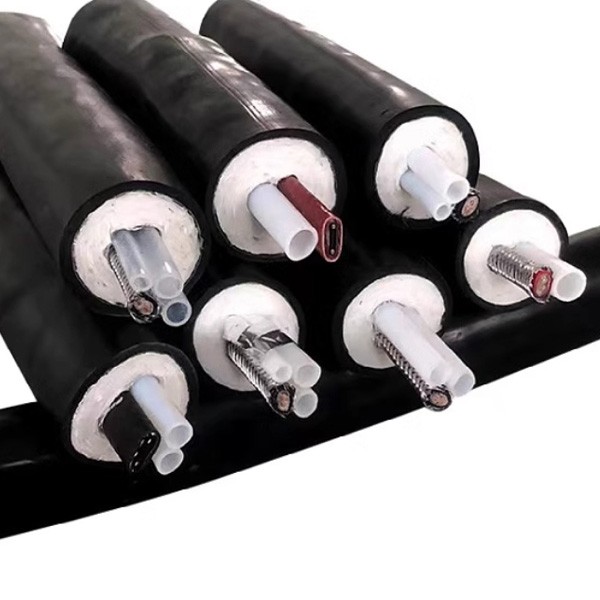

Flue gas heating sampling composite pipe  Analysis heating sampling composite pipe for environmental protection are a crucial piece of equipment in the modern field of environmental monitoring, particularly for sampling high-temperature flue gases or emissions. These devices ensure the authenticity and integrity of samples under extreme conditions and are key tools for industrial emission monitoring and compliance with environmental regulations. Here is a detailed exploration of the structure, features, applications, and an overview of the entire system of flue gas heat-traced sampling composite tubes.Designed for collecting flue gas samples under high-temperature conditions, these tubes are commonly used in the sampling of gases produced during combustion or other industrial emissions. Typically constructed from high-temperature resistant materials, these sampling tubes feature complex internal structures including heat-tracing cables and multi-layer protective configurations to ensure temperature control and physical protection during the sampling process.

Flue gas heating sampling composite pipe  Analysis heating sampling composite pipe for environmental protection Structure and Working Principle

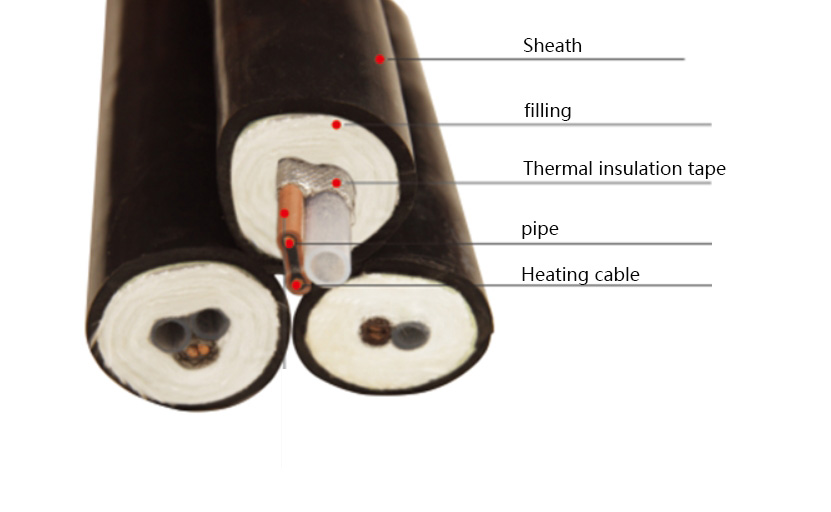

Flue gas heat-traced sampling composite tubes mainly consist of the following components:

1. Inner Tube: Usually made of stainless steel or other high-temperature-resistant alloys, it comes into direct contact with the flue gas and is responsible for transporting the sample.
2. Insulation Layer: Surrounding the inner tube is insulation material, such as ceramic fiber or high-temperature insulation, which maintains the temperature of the gases inside the tube to prevent heat loss.
3. Heat-Tracing Device: Typically an electric heating element wrapped around the insulation layer, it ensures that the flue gases do not cool down during transmission, preventing chemical composition changes or condensation.
4. Outer Sheath: Made from corrosion-resistant and high-temperature materials, it protects the internal structures from external environmental effects.

Flue gas heating sampling composite pipe  Analysis heating sampling composite pipe for environmental protection Features

The main features of flue gas heat-traced sampling composite tubes include:

• High-Temperature Tolerance: Capable of operating in environments with temperatures up to several hundred degrees Celsius, suitable for sampling flue gases from various industrial furnaces and combustion equipment.
• Chemical Stability: The choice of materials ensures performance stability in acidic or alkaline environments and does not react chemically with the constituents of flue gases.
• Precise Temperature Control: The heat-tracing system can accurately control the temperature within the sampling tube, ensuring that the chemical composition remains unchanged during sampling.

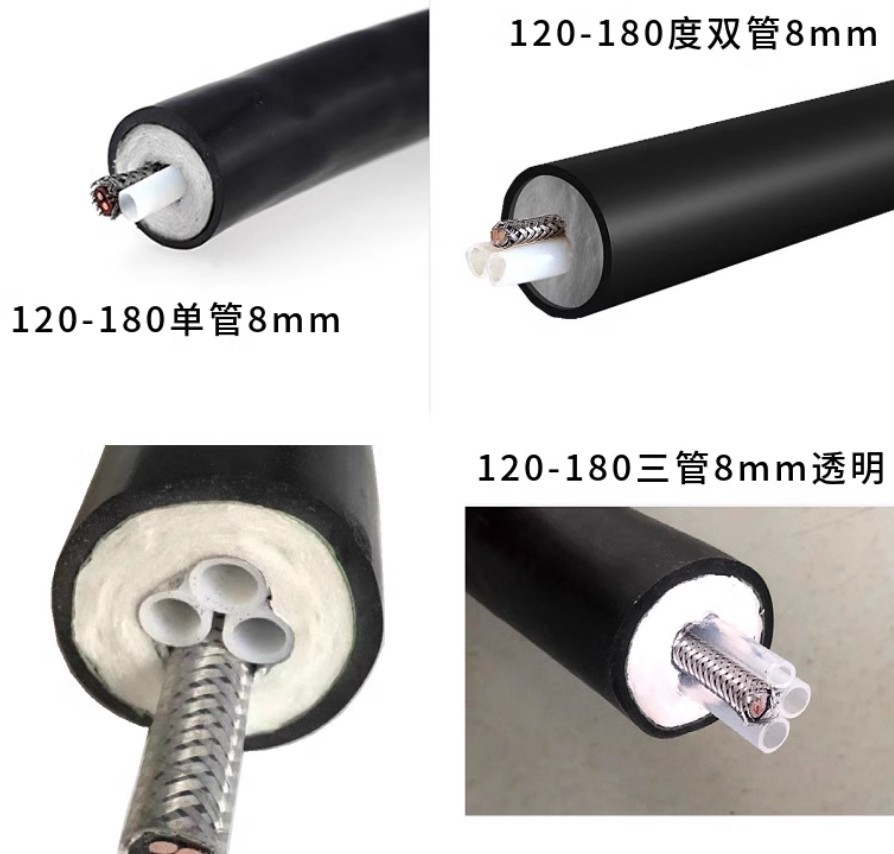

• 1. Various types and materials of sampling tubes can be combined: Teflon PFA, PEP, PE, nylon 610, copper tube, 316SS, 304SS, etc.
     2.Thermal system:Efficient thermal insulation, flame retardant and lightweight insulation layer; automatic temperature limiting heating cable or constant power heating cable.

Flue gas heating sampling composite pipe  Analysis heating sampling composite pipe for environmental protectionApplications

• Environmental Monitoring: Monitoring pollutants in industrial emissions such as SO2, NOx, etc., ensuring compliance with environmental regulations.
• Industrial Process Control: Real-time monitoring of combustion efficiency and emission levels in industrial furnaces, optimizing production processes.
• Research and Development: Used in environmental science and chemical engineering research to analyze flue gas compositions.

Overview of the Entire System

A typical flue gas heat-traced sampling system includes a sampling probe, heat-traced pipeline, temperature controller, sampling pump, and filtration system. During operation, the sampling probe is placed in the flue or exhaust pipe, and flue gases are drawn to ground-level analytical equipment through the heat-traced pipeline. The system’s temperature controller ensures that the temperature of the flue gases remains constant throughout the sampling process, while the sampling pump drives the gases through a filtration system, filtering out solid particles and liquid droplets to ensure the purity of the gas reaching the analytical instruments.

Flue gas heating sampling composite pipe  Analysis heating sampling composite pipe for environmental protection are an efficient and reliable tool for industrial and environmental monitoring, providing accurate flue gas samples under extreme conditions. With advanced heat-tracing technology and multi-layer protection design, these devices not only enhance the quality of the samples but also provide strong support for environmental monitoring and industrial production. As environmental standards become increasingly stringent, the importance and application of flue gas heat-traced sampling composite tubes are expected to expand further.
