KCYFLY 4x2.5mm2 Flat Ribbon Cable

YVFBP KCYFLY 4x2.5mm2 Copper braided shield Flat Ribbon Cable use Shielded power, control and signal transmission cable for crane facilities, current entries to high rack transport vehicles, in industrial Television on moving cameras and machine tools. Applicable for all control, measure and telecommunication systems. Suitable for dry and humid rooms.

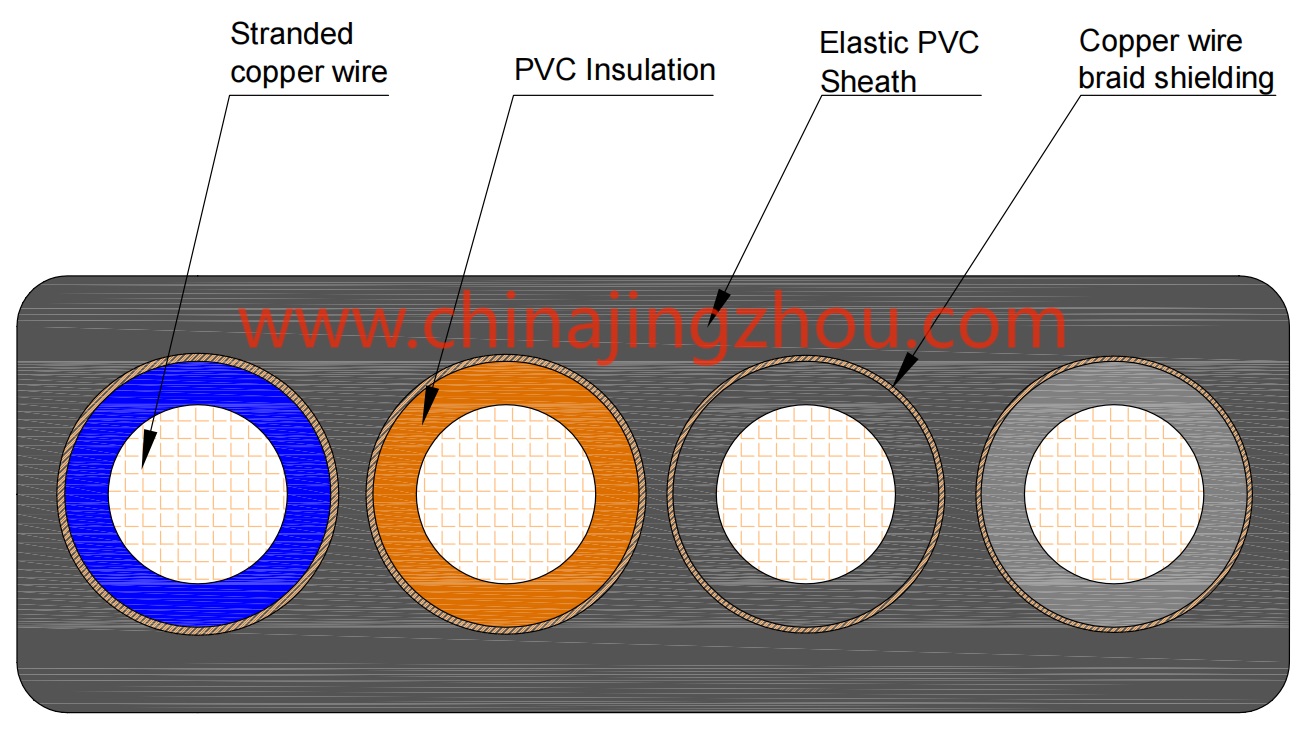

YVFBP KCYFLY 4x2.5mm2 Copper braided shield Flat Ribbon Cable Structure:

Conductors: Flexible circular plain annealed copper conductors with stranded fine wires class5-IEC60228

Insulation: PVC: Color: Blue,Brown,Black,Grey.

Screen:Copper wire braided shielding, single core shielding separately, shielding density≥80%.

Over sheath: Elastic PVC ,Color:Black.

Cable surface printing: Anhui JingZhou Electric Co., LTD. KCYFLY 4x2.5mm² 300/500V    0000m

YVFBP KCYFLY 4x2.5mm2 Copper braided shield Flat Ribbon Cable Technical Requirements:

Operating temperature: -20°c up to +70°c:

Bending radius: ≤ 10 times the cable diameter:

Test voltage: 2kv/min.

Resistance to flame propagation: Non-flame propagating (flame retardant)-IEC60332-3-24.
