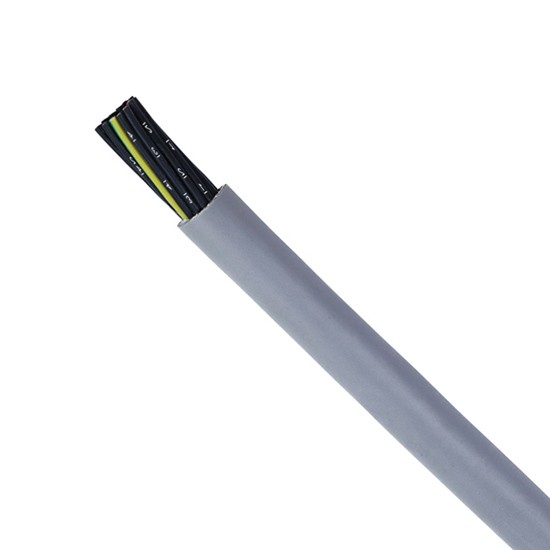

​JZ-500 / OZ-500 flex chain control cable

JZ-500 / OZ-500 flex chain control cable are highly versatile, robust control cables used extensively across various industrial applications. These cables are designed for flexibility, durability, and efficient signal transmission, making them superior choices for complex control systems. In this comprehensive guide, we'll explore the structure, characteristics, applications, specifications, and compare these specialized cables to standard control cables.

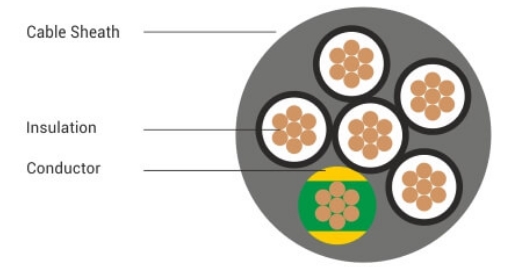

Structure of JZ-500 / OZ-500 flex chain control cable

Conductor: Both JZ-500 and OZ-500 cables feature finely stranded bare copper conductors, ensuring optimal electrical conductivity and flexibility. The conductor sizes can vary depending on the application requirements.

Insulation: The conductors are insulated with PVC (Polyvinyl Chloride), which provides excellent resistance to heat, chemicals, and abrasion. This insulation helps maintain the integrity of the signal transmission even in harsh environments.

Outer Sheath: JZ-500 cables come with a grey PVC outer sheath, while OZ-500 cables typically do not have an outer sheath but are often grouped together and protected by an overall transparent PVC sheath when used in certain configurations.

JZ-500 / OZ-500 flex chain control cable Key Features

· Flexibility: Both JZ-500 and OZ-500 cables are highly flexible, designed for easy installation in tight spaces and dynamic environments where cables may need to withstand frequent bending.

· Durability: Made with high-quality PVC, these cables are robust and designed to withstand harsh industrial environments, including exposure to oils, greases, and other corrosive substances.

· Electromagnetic Compatibility: The optional shielding in JZ-500 cables provides excellent protection against EMI, making it suitable for environments with significant electrical noise.

JZ-500 / OZ-500 flex chain control cable Applications

JZ-500 and OZ-500 cables are suitable for a wide range of applications:

· Machine and Plant Engineering: For wiring control cabinets, assembly lines, and complex machinery where reliable signal transmission is crucial.

· Measurement and Control Technology: In systems that require precise data and signal processing.

· HVAC Systems: Integration into heating, ventilation, and air conditioning systems for enhanced control.

· Construction Equipment: Used in construction machinery where cables must endure rough handling and exposure to the elements.

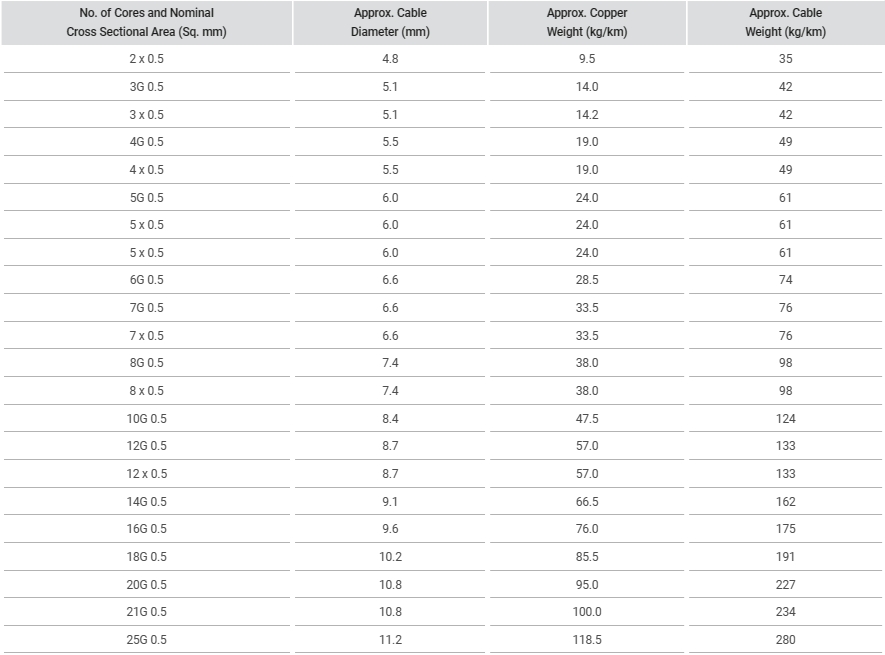

JZ-500 / OZ-500 flex chain control cable Specifications

The specifications for JZ-500 and OZ-500 cables vary, typically including:

· Voltage Rating: Generally, these cables are rated for 300/500V.

· Operating Temperatures: Usually ranging from -15°C to +70°C for static applications and up to +50°C for flexible use.

· Conductor Count and Size: Available in various configurations, from small single conductors to large multi-conductor cables, tailored to meet specific application needs.

JZ-500 / OZ-500 flex chain control cable Comparison with Standard Control Cables

Compared to standard control cables, JZ-500 and OZ-500 offer several advantages:

· Enhanced Flexibility: The fine stranding of the copper conductors in JZ-500 and OZ-500 cables makes them more flexible, which is advantageous in installations requiring tight bends and continuous movement.

· Better Resistance to Environmental Factors: With PVC insulation and sheathing, these cables offer superior resistance to chemicals, oils, and greases, which often degrade standard cables more quickly.

· EMI Protection: The optional shielding in JZ-500 provides better performance in electronically noisy environments compared to many standard control cables that lack such protection.

JZ-500 / OZ-500 flex chain control cable are exemplary choices for demanding industrial applications that require durability, flexibility, and effective electromagnetic compatibility. Their robust construction, combined with the optional shielding and high-quality materials, makes them a preferable option over standard control cables, especially in environments where reliability and performance are critical. As industries continue to evolve and require more sophisticated wiring solutions, the significance of choosing the right type of cable, like JZ-500 or OZ-500, becomes ever more crucial in maintaining system integrity and operational efficiency.
