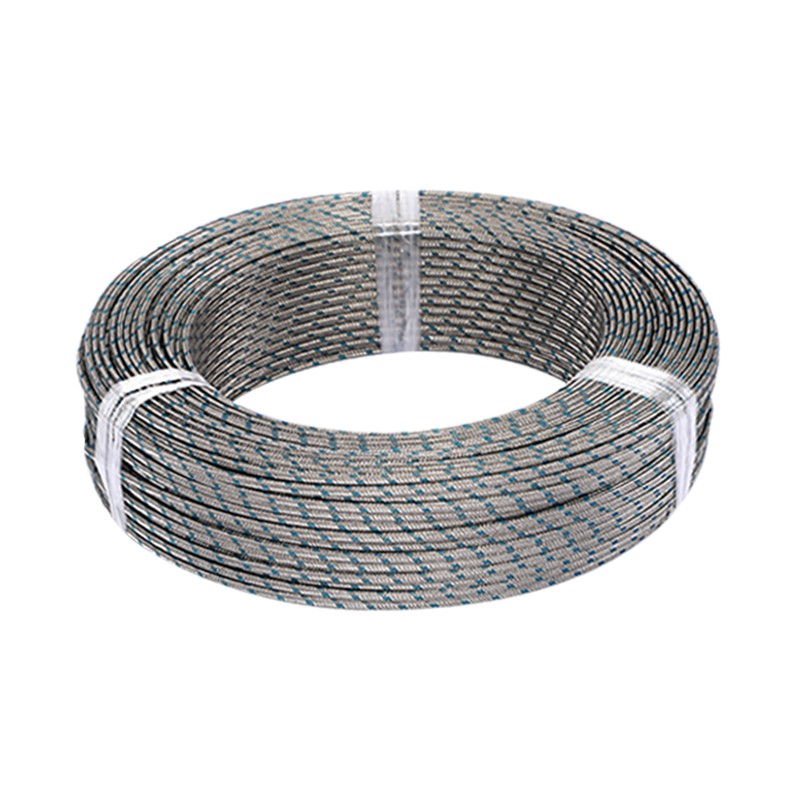

In the realm of temperature measurement and control, K-type thermocouple wires are essential for accurate temperature readings in high-temperature environments. Glass fiber stainless steel braided K-type high temperature compensation wire GG-K-20-SB GG-K-20S-SB GG-K-24-SB GG-K-24S-SB AWG are designed for durability and precision. This article explores their structure, features, applications, and distinguishes them from the TT-K model.

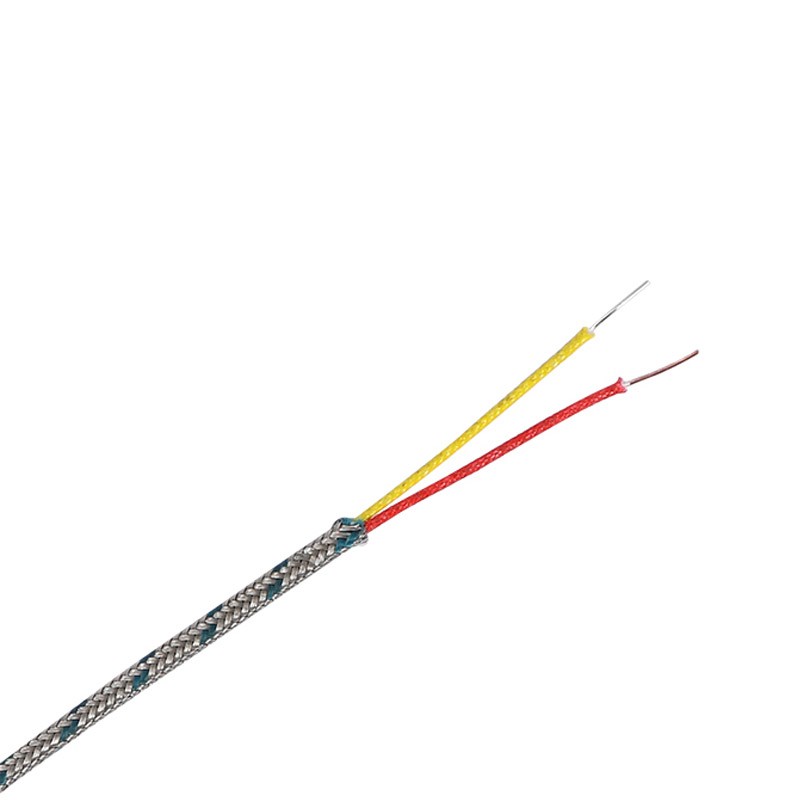

Structure of GG-K-20-SB, GG-K-20S-SB, GG-K-24-SB, and GG-K-24S-SB
Conductors:
-
Nickel-Chromium (NiCr) and Nickel-Aluminum (NiAl): These wires use NiCr and NiAl conductors, known for their stability and consistent thermoelectric properties over a wide temperature range.
Insulation:
-
Glass Fiber: The primary insulation is made of glass fiber, which provides excellent thermal resistance and electrical insulation. Glass fiber is ideal for high-temperature applications due to its ability to withstand extreme heat without degrading.
Braiding:
-
Stainless Steel Braiding: The outer layer of these wires features a stainless steel braid. This provides robust mechanical protection, enhancing the wire's durability in harsh environments and protecting against physical damage and abrasion.

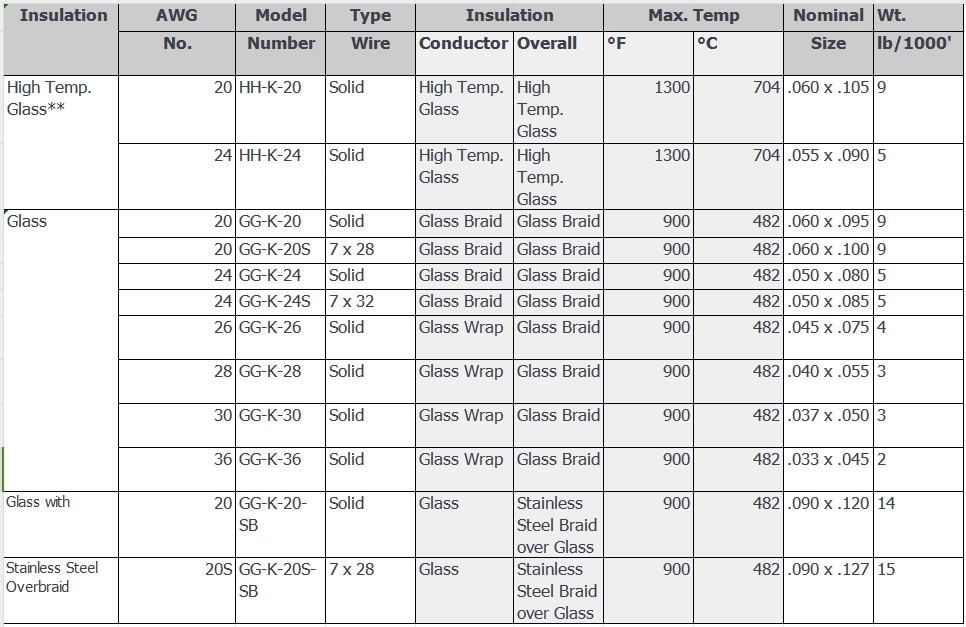

Wire Gauges:
-
Available in different American Wire Gauge (AWG) sizes:
-
GG-K-20-SB and GG-K-20S-SB: 20 AWG
-
GG-K-24-SB and GG-K-24S-SB: 24 AWG
-
The "S" designation indicates a stranded wire configuration, offering additional flexibility compared to solid wire counterparts.
Features of Glass Fiber Stainless Steel Braided K-Type High Temperature Compensation Wire
-
High Temperature Resistance: Capable of withstanding temperatures up to 482°C (900°F), making them suitable for high-temperature environments.
-
Mechanical Durability: The stainless steel braiding provides excellent mechanical protection against abrasion, impact, and harsh environmental conditions.
-
Electrical Insulation: Glass fiber insulation offers reliable electrical performance even at high temperatures.
-
Flexibility: The stranded wire versions (indicated by the "S") offer greater flexibility, making them easier to handle and install in applications requiring frequent movement or bending.
-
Thermoelectric Stability: NiCr and NiAl conductors ensure stable and consistent thermoelectric output, crucial for precise temperature measurement.
Applications of GG-K-20-SB, GG-K-20S-SB, GG-K-24-SB, and GG-K-24S-SB
Industrial Furnaces:
-
Used for temperature monitoring and control in high-temperature industrial furnaces where accurate and reliable measurements are critical.
Aerospace:
-
Essential for monitoring temperatures in aerospace applications, including engines and other high-temperature components, ensuring safety and performance.
Chemical Processing:
-
Ideal for use in chemical processing plants where resistance to extreme heat and aggressive chemicals is required.
Power Generation:
-
Used in power plants to monitor boiler temperatures and other high-temperature processes, maintaining optimal performance and safety.
Metallurgy:
-
Employed in metallurgical processes for precise temperature measurements during metal production and processing.
Laboratories and Research:
-
Suitable for laboratory and research applications where accurate temperature measurements are essential for experiments and data collection.
While both the GG-K and TT-K models are designed for high-temperature compensation, there are key differences between them:
Insulation Material:
-
GG-K Model: Uses glass fiber insulation, which provides higher temperature resistance and durability, making it suitable for more extreme environments.
-
TT-K Model: Typically uses PFA (Perfluoroalkoxy) insulation, known for its high-temperature resistance up to 260°C and excellent chemical resistance, but not as high as glass fiber in extreme heat applications.
Mechanical Protection:
-
GG-K Model: Features stainless steel braiding for enhanced mechanical protection against abrasion and physical damage.
-
TT-K Model: Usually lacks the robust stainless steel braiding, making it less durable in harsh environments compared to GG-K.
Temperature Range:
-
GG-K Model: Can withstand higher temperatures (up to 482°C) compared to the TT-K model (up to 260°C), making it more suitable for very high-temperature applications.
Glass fiber stainless steel braided K-type high temperature compensation wire GG-K-20-SB GG-K-20S-SB GG-K-24-SB GG-K-24S-SB AWG offer superior performance, durability, and versatility. Their robust design makes them ideal for a wide range of demanding applications, from industrial furnaces and chemical processing to aerospace and power generation. By choosing these wires, you ensure that your temperature measurement systems are reliable, accurate, and capable of performing in the most challenging environments. Whether upgrading existing systems or implementing new ones, these wires provide the quality and reliability needed for modern industrial and research applications.
