In the realm of temperature measurement and control, K type high temperature compensation wire PFA F46 TT-K-20/22/22S/24/26/28/30AWG play a crucial role. The K type high temperature compensation wire with PFA (Perfluoroalkoxy) F46 insulation is specifically designed for applications that require accurate temperature measurement in high-temperature environments. This article will explore the structure, features, applications, and benefits of the K type high temperature compensation wire PFA F46 TT-K-20/22/22S/24/26/28/30AWG, highlighting its unique attributes and relevance in various industries.

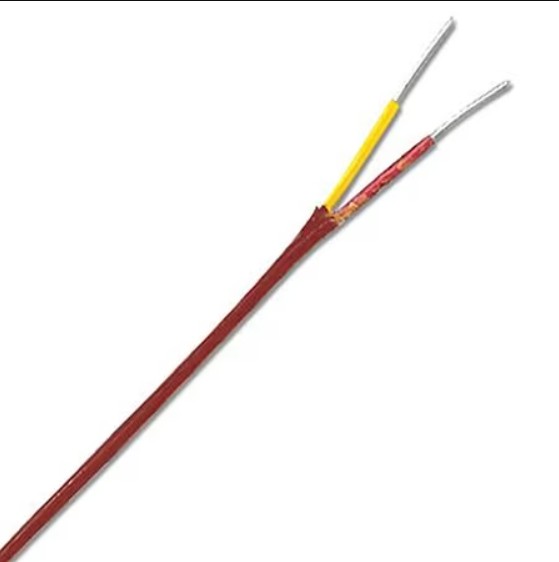

Structure of K Type High Temperature Compensation Wire
Conductor:
-
The K type compensation wire consists of two conductors made from Nickel-Chromium (Nickel alloy) and Nickel-Aluminum (Nickel alloy). These materials are chosen for their excellent thermoelectric properties, stability, and ability to maintain consistent thermoelectric output over a wide temperature range.
Insulation:
-
The insulation material is PFA (Perfluoroalkoxy), also known as F46. PFA is known for its high-temperature resistance, chemical resistance, and excellent electrical insulation properties. This makes it ideal for use in harsh industrial environments.
Wire Gauge:
-

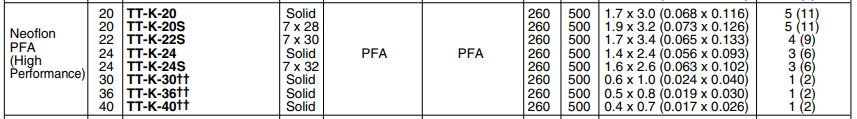

The wire is available in various American Wire Gauge (AWG) sizes, including 20, 22, 22S, 24, 26, 28, and 30 AWG. This range of sizes allows for flexibility in different applications, from heavy-duty industrial use to precision instrumentation.
Features of K Type High Temperature Compensation Wire
-
High Temperature Resistance: PFA insulation allows the wire to withstand temperatures up to 260°C (500°F), making it suitable for high-temperature environments.
-
Chemical Resistance: PFA is highly resistant to a wide range of chemicals, ensuring the wire's durability in chemically aggressive environments.
-
Flexibility and Durability: The PFA insulation provides excellent flexibility and mechanical durability, allowing the wire to be used in dynamic and harsh industrial settings.
-
Thermoelectric Stability: The conductors' materials ensure consistent thermoelectric properties, providing accurate and reliable temperature measurements.
-
Variety of Gauges: The availability of multiple AWG sizes allows for selection based on specific application requirements, ensuring optimal performance.
Applications of K Type High Temperature Compensation Wire
Industrial Furnaces:
-
Used in monitoring and controlling temperatures in industrial furnaces where high accuracy and stability are critical.
Aerospace:
-
Essential in aerospace applications for monitoring engine temperatures and other high-temperature components to ensure safety and performance.
Chemical Processing:
-
Ideal for chemical processing plants where resistance to aggressive chemicals and high temperatures is necessary for accurate temperature measurement.
Petrochemical Industries:
-
Used in petrochemical industries to monitor process temperatures, ensuring efficient and safe operation of equipment.
Power Generation:
-
Employed in power plants to monitor boiler temperatures and other high-temperature processes to maintain optimal performance and safety.
Laboratories and Research:
-
Suitable for use in laboratories and research facilities where precise temperature measurement is essential for experiments and data collection.
Why Choose K Type High Temperature Compensation Wire?
The K type high temperature compensation wire PFA F46 TT-K-20/22/22S/24/26/28/30AWG is the perfect solution for accurate temperature measurement in demanding environments. Here’s why you should consider this wire for your next project:
-
Unmatched Performance: Capable of withstanding temperatures up to 260°C, this wire ensures reliable temperature readings even in extreme conditions.
-
Chemical Resistance: The PFA insulation provides superior resistance to a wide range of chemicals, making it ideal for use in aggressive industrial environments.
-
Durability and Flexibility: With excellent mechanical durability and flexibility, this wire is designed to perform in dynamic and harsh settings.
-
Thermoelectric Stability: The high-quality conductors ensure consistent and accurate thermoelectric output, crucial for precise temperature measurements.
-
Versatility: Available in various AWG sizes, this wire can be tailored to meet specific application needs, from heavy-duty industrial use to fine instrumentation.
K type high temperature compensation wire PFA F46 TT-K-20/22/22S/24/26/28/30AWG stands out for its high performance, durability, and versatility. Its robust design makes it ideal for a variety of demanding applications, from industrial furnaces and chemical processing to aerospace and power generation. By choosing this wire, you ensure that your temperature measurement and control systems are reliable, accurate, and capable of performing in the most challenging environments. Whether you are upgrading your current systems or implementing new ones, this wire provides the quality and reliability needed for modern industrial and research applications.
