SPREADER REEL PUR-HF D12YST11YU11Y cable

SPREADER REEL PUR-HF D12YST11YU11Y Low voltage cable PUR sheathed for vertical reeling is a specialized low voltage cable designed for vertical reeling applications, making it an ideal choice for environments requiring durable and flexible cabling solutions. This article delves into the structure, features, and applications of the SPREADER REEL PUR-HF D12YST11YU11Y cable, and compares it with the standard D12Y11YU11Y cable to highlight the key differences and advantages.

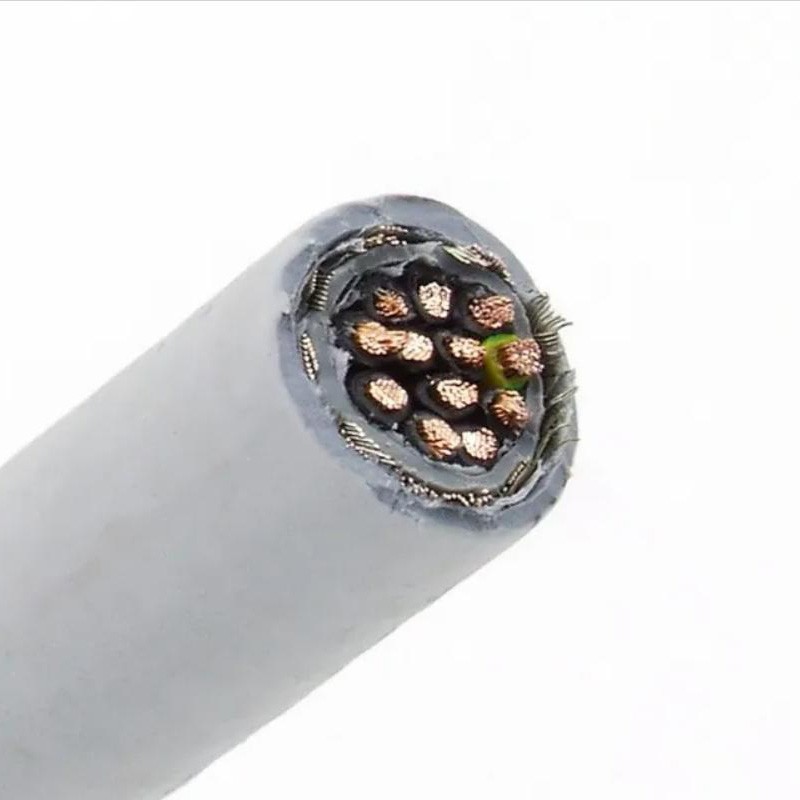

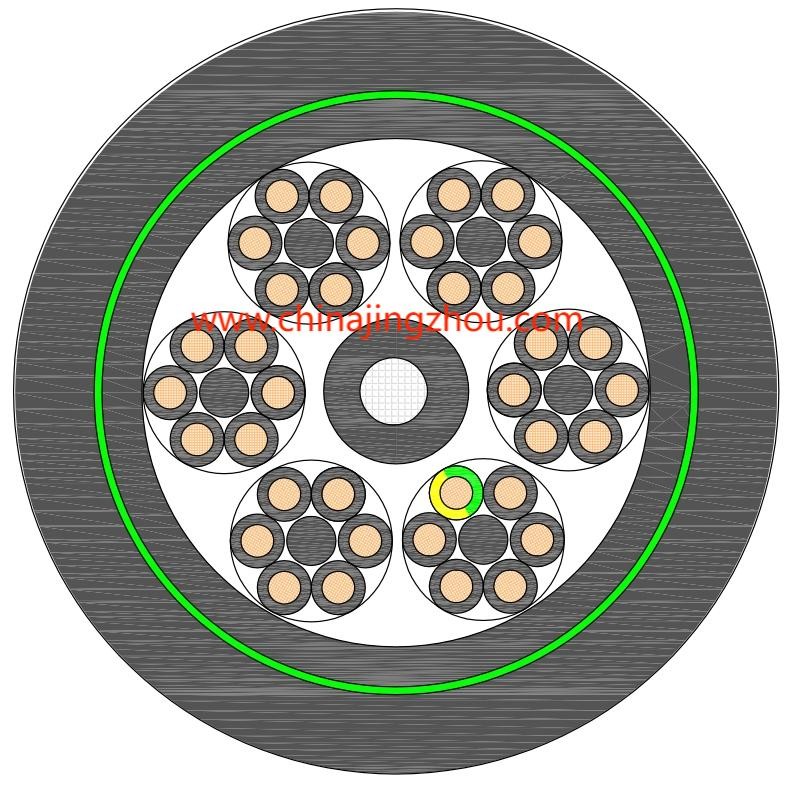

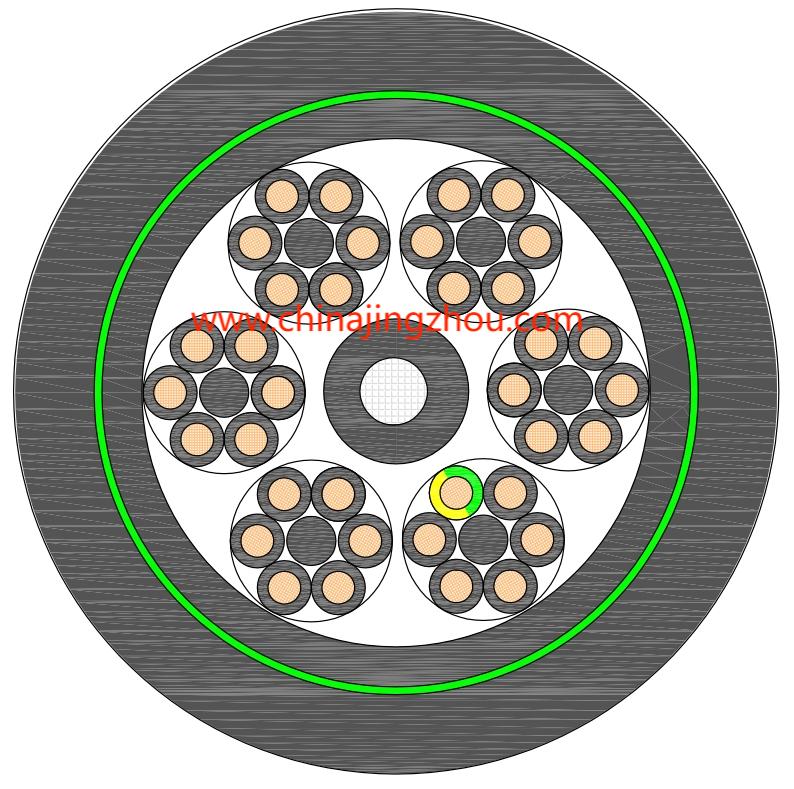

Structure of SPREADER REEL PUR-HF D12YST11YU11Y Cable

Conductor: The cable features finely stranded bare copper conductors, optimized for high conductivity and flexibility, essential for applications involving frequent movement and bending.

Insulation: The insulation is crafted from Polyurethane (PUR), known for its excellent resistance to abrasion, oils, and various chemicals, which protects the conductors effectively under stressful conditions.

Inner sheath: Polyurethan, halogen free, flame retardant

Reinforcement: Open braid, reinforced

Sheathing: The outer sheath is also made of a high-grade, halogen-free Polyurethane (PUR-HF), providing an additional layer of durability and safety. This sheath is designed to withstand harsh environmental conditions, including exposure to UV rays, moisture, and mechanical wear.

Features of SPREADER REEL PUR-HF D12YST11YU11Y Cable

• Durability: Engineered for vertical reeling systems, this cable is highly durable, capable of withstanding the stresses of continuous movement and mechanical strain.
• Flexibility: Despite its rugged construction, the cable maintains a high degree of flexibility, which is crucial for efficient reeling and unreeling operations without compromising performance.
• Low Smoke and Halogen-Free: The PUR-HF sheath minimizes the emission of toxic and corrosive gases in the event of a fire, making it safer for use in confined spaces and public areas.
• Chemical and Weather Resistance: Offers excellent resistance to oils, chemicals, and extreme weather conditions, ensuring reliable performance in both indoor and outdoor environments.

Applications of SPREADER REEL PUR-HF D12YST11YU11Y Cable

This cable is particularly suited for:

• Vertical Reeling Systems: Commonly used in ports for crane operations, container handling, and other applications where cables are subjected to vertical movement.
• Industrial Automation: Ideal for use in automated machinery and equipment that require frequent and repetitive reeling.
• Marine and Offshore Applications: Its resistance to harsh marine environments makes it suitable for ships, docks, and offshore platforms.
• Energy and Utilities: Used in power generation and distribution systems where reliability and safety are critical.

Comparison with D12Y11YU11Y Cable

While the SPREADER REEL PUR-HF D12YST11YU11Y and D12Y11YU11Y cables share several similarities, such as their copper conductors and PUR insulation, there are distinct differences:

• Specific Design for Reeling: The SPREADER REEL cable is specifically designed for vertical reeling applications, offering enhanced mechanical and flexural properties compared to the standard D12Y11YU11Y.
• Safety Features: The halogen-free feature of the SPREADER REEL cable makes it a preferable choice in applications where fire safety is a concern, emitting lower levels of smoke and toxic gases.
• Environmental Resistance: Both cables offer excellent resistance to environmental challenges, but the SPREADER REEL cable's additional enhancements make it better suited for extreme conditions and continuous operation.

Choosing the right cable for specific industrial applications is crucial for ensuring efficiency, safety, and longevity. The SPREADER REEL PUR-HF D12YST11YU11Y Low voltage cable PUR sheathed for vertical reeling superior design for vertical reeling systems, coupled with its robust safety and environmental resistance features, makes it a superior choice over the D12Y11YU11Y in applications demanding high durability and safety standards. Whether for industrial, marine, or energy sectors, this cable ensures optimal performance in demanding conditions, providing a reliable and safe power solution for critical operations.
