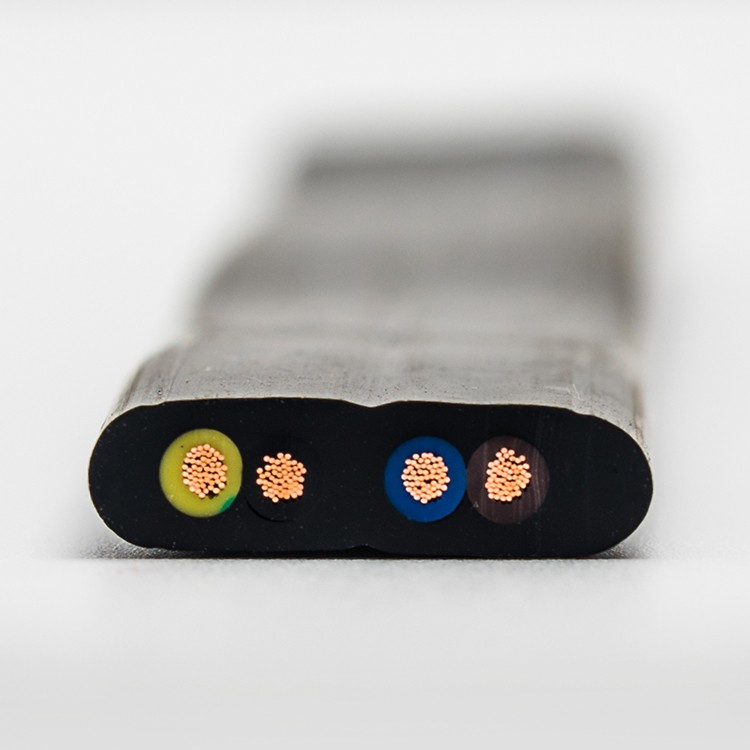

H07VVH6-F Flat cable

H07VVH6-F Flat cable 4 core 2.5mm2 6mm2 with pvc insulation and sheath material is light in weight and strong in toughness,Technical Basis DIN VDE 0281-404 /DIN EN 60228 class 5 (construction) /DIN VDE 0293-308 (core identification),This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane.

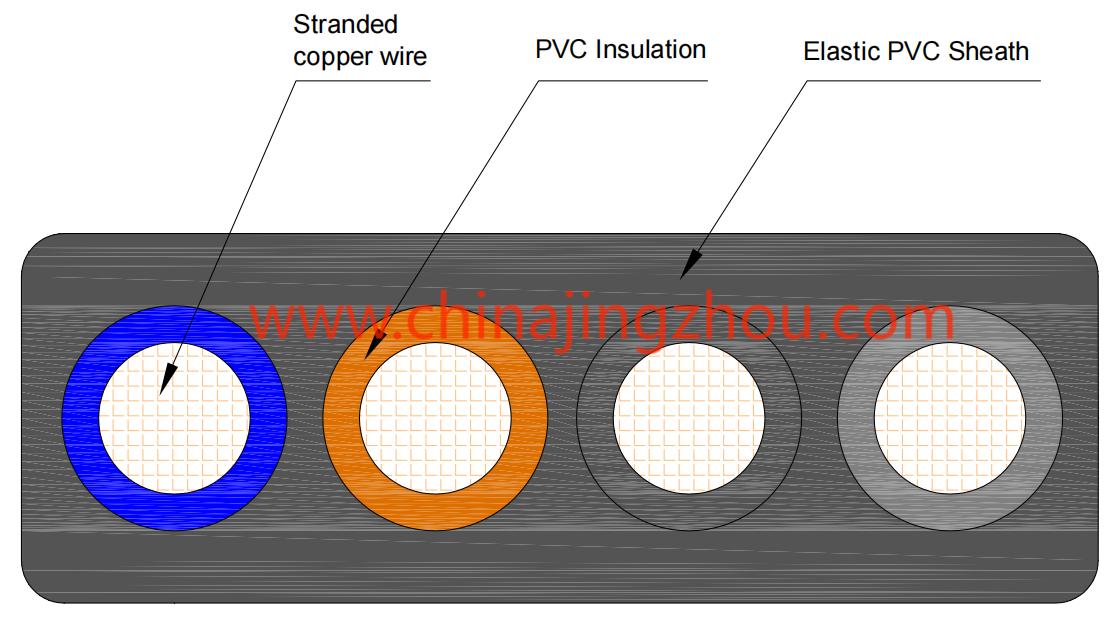

H07VVH6-F Flat cable 4 core 2.5mm2 6mm2 Structure:

Conductors: Flexible circular plain annealed copper conductors with stranded fine wires class5-IEC60228

Insulation: PVC: Color: Blue,Brown,Black,Grey.

Over sheath: Elastic PVC ,Color:Black.

Cable surface printing: Anhui JingZhou Electric Co., LTD.    H07VVH6-F   4x2.5mm²    450/750V    0000m

H07VVH6-F Flat cable 4 core 2.5mm2 6mm2 Technical Requirements:

Operating temperature: -20°c up to +70°c:

Bending radius: ≤ 10 times the cable diameter:

Test voltage: 2.5kv/min.

Resistance to flame propagation: Non-flame propagating (flame retardant)-IEC60332-3-24.
