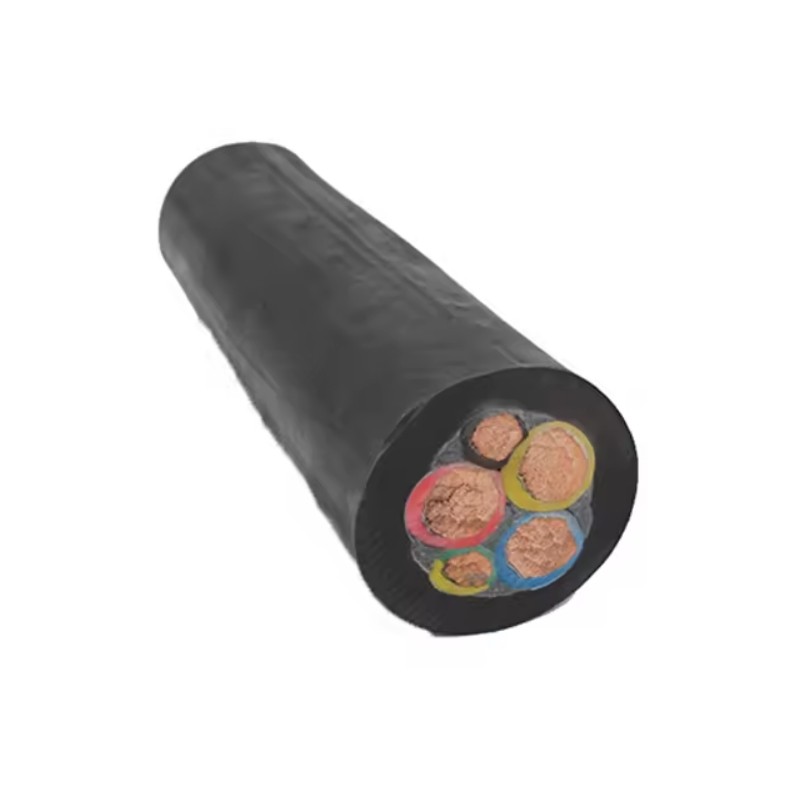

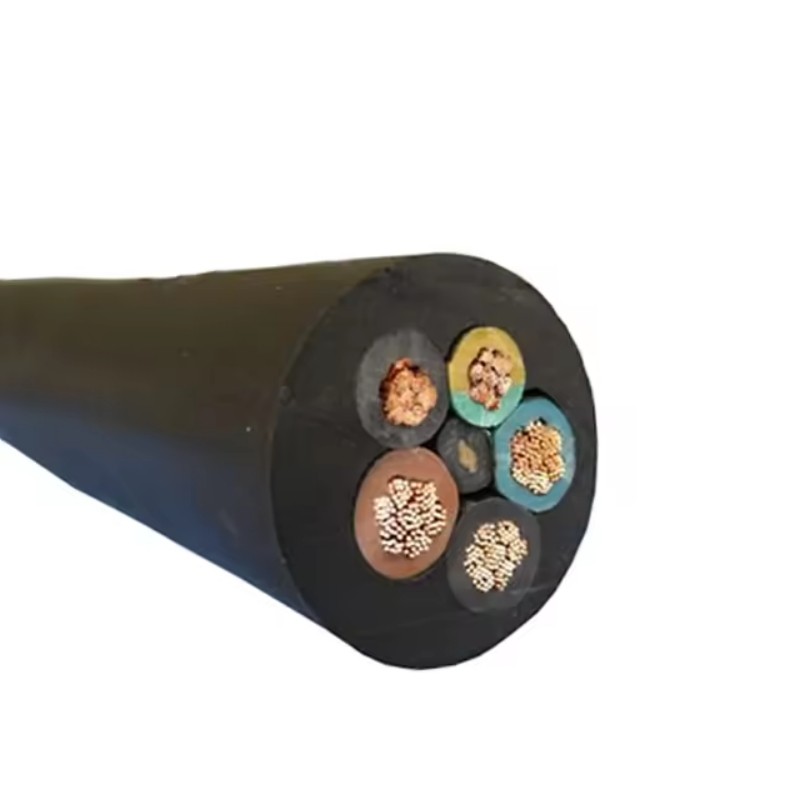

2PNCT-B 2PNCT-T-U 2PNCT-SB 3PNCT-B rubber cable is widely used in steel plants, seaports, energy power stations, factories and other places. It is suitable for wires in moving parts on various types of large machinery.
2PNCT-B CABLE structure
1,Conductor：Twisted with TR round tinned copper wires. The conductor structure is shown in the above table. The spacing of the twisted wires is uniform and the surface of the conductor is smooth without oil pollution, burrs, sharp edges and single wires that damage the insulation.
2,EPR rubber is selected for insulation, the insulation color is white, black numbers code 1,2,3,4,5,6..36,the average thickness of the insulation layer is in accordance with the below table, the thickness of the insulation layer is uniform, the surface is smooth, no coke material and other quality defects, the insulation should be tightly packed on the surface of the conductor, insulation should be able to peel off without damaging the conductor.
3,Cabling: The cable core is filled and rounded with filler material.
4,Sheath: Chloroprene rubber sheath material is adopted,color: Black, the thickness of the sheath and outer diameters meets the requirements in the below table,
5,Cable surface printing: Anhui JingZhou Electric Co., LTD. 2PNCT-B CABLE 600V 6x30mm² 0000m

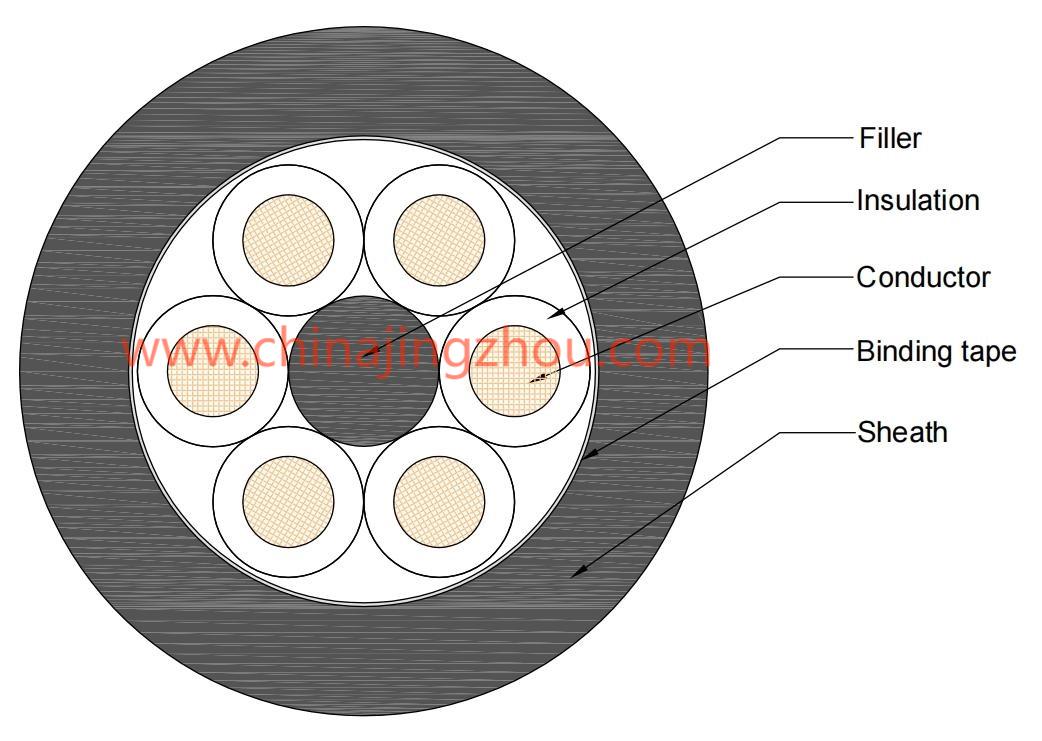

6.Cable shape structure:
2PNCT-B-24Sx3.5 CABLE structure
1,Conductor：Twisted with TR round tinned copper wires. The conductor structure is shown in the above table. The spacing of the twisted wires is uniform and the
surface of the conductor is smooth without oil pollution, burrs, sharp edges and single wires that damage the insulation.
2,EPR rubber is selected for insulation, the insulation color is white, black numbers code 1,2,3,4,5,6..36,the average thickness of the insulation layer is in accordance
with the below table, the thickness of the insulation layer is uniform, the surface is smooth, no coke material and other quality defects, the insulation should be
tightly packed on the surface of the conductor, insulation should be able to peel off without damaging the conductor.
3,Cabling: The cable core is filled and rounded with filler material,The cable pitch is small.
4,Screen:Tinned copper wire braided shield, braid density≥80%.
5,Sheath: Chloroprene rubber sheath material is adopted,color: Black, the thickness of the sheath and outer diameters meets the requirements in the below table,
6,Cable surface printing: Anhui JingZhou Electric Co., LTD. 2PNCT-B CABLE 600V 24Sx3.5mm² 0000m

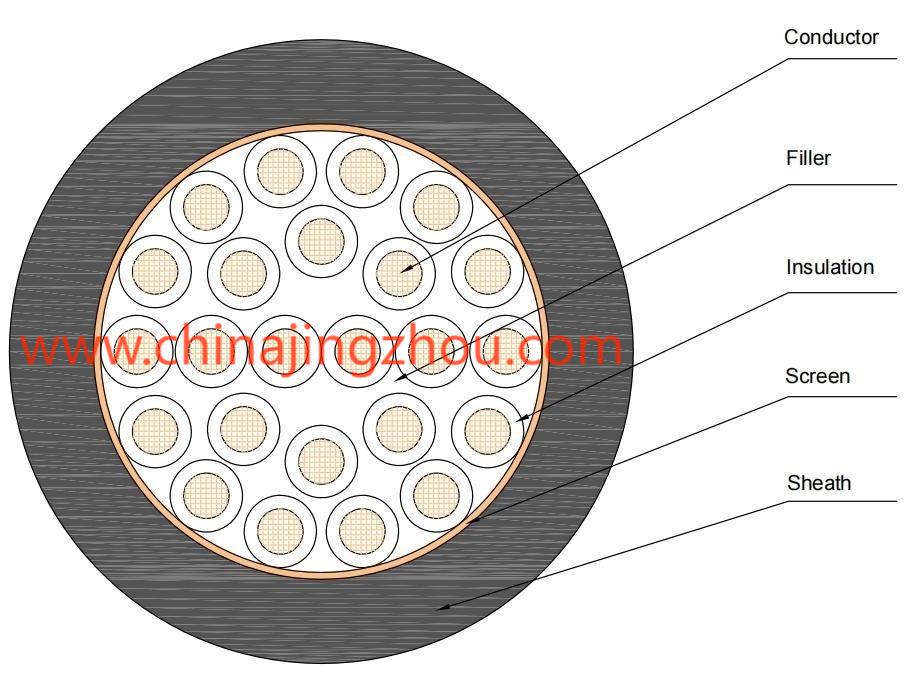

7.Cable shape structure:

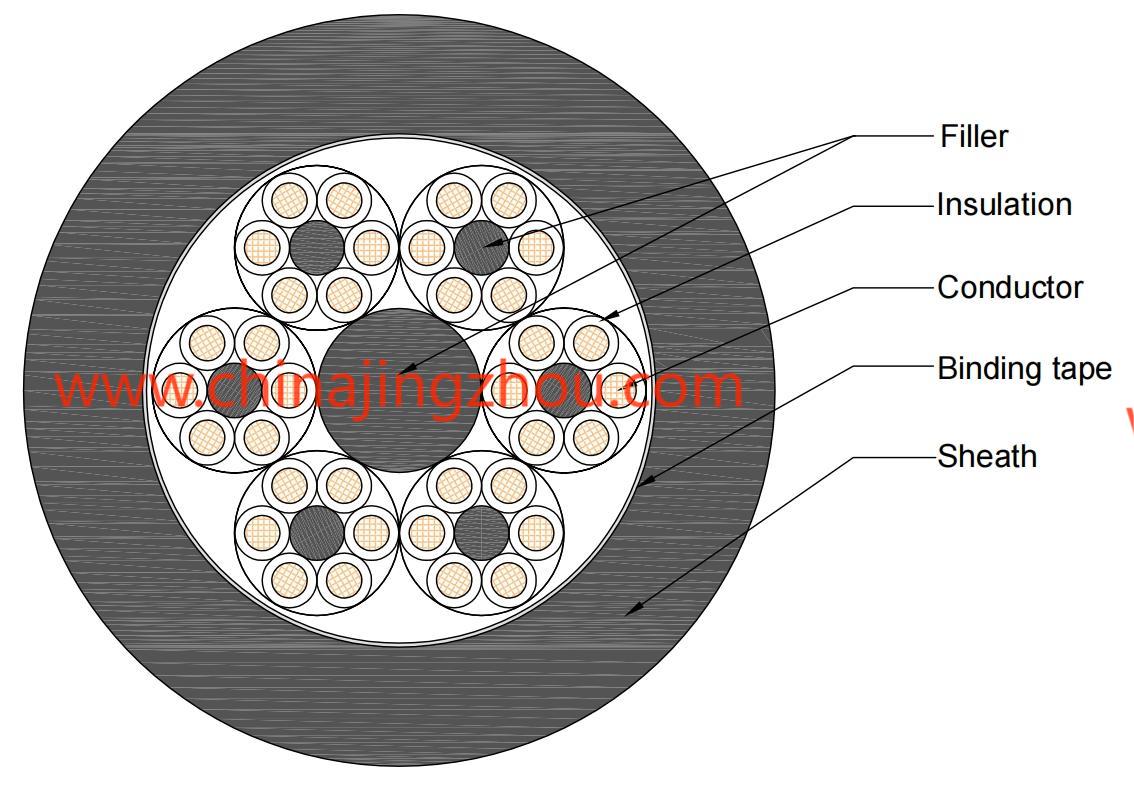

2PNCT-B-T-U CABLE structure
2PNCT-B 2PNCT-T-U 2PNCT-SB 3PNCT-B rubber cable use:
Shape: round cable, flat cable
Features: Bending resistance
Twist resistance Tensile resistance
Jacket material: Neoprene rubber
Insulation material: EP synthetic rubber
Number of cores: 1C-30C
Cross-sectional area: 2mm 3.5mm5.5mm 8mm 14mm 22mm 38mm 60mm 100mm 150mm 200mm 250mm325mm
1. Curtain type means that the machine moves in a horizontal and straight line. It is designed along the direction of movement, and then the cable is hung on the hook. As the machine moves, the cable will expand and contract with the machine left and right. Suitable for this type of exercise
2. The drag chain type refers to the movement method in which the cable is placed in the drag chain when the machine repeatedly moves back and forth.
The cables suitable for this type of movement are: 2PNCT-B, 3PNCT-B, 2PNCT-B-S, 3PNCT-B-S, FR-2PNCT-B, FR-3PNCT-B, FR-2PNCT-B-S, FR-2PNCT-B-S, ENCT -B, G-ENCT-B, FR-G-2PNCT-B, etc.
3. The roller type refers to connecting the cable to the roller and then to the machine or the cable suitable for this type of movement is: F-3PNCT, FG-3PNT
4. The vertical roller type refers to the roller type that operates in a vertical manner.
The cables suitable for this type of movement are: 2PNCT-H, 3PNCT-H, 2PNCT-H-U, 3PNCT-H-U, FR-2PNCT-H, FR-3PNCT-H, FR-2PNCT-H-U, FR-3PNCT-H-U
5. Suspended type refers to a method that allows wires to move up and down within a relatively short distance. The cable suitable for this type of exercise is: 2PNCT-T-U
6. The rotary type refers to hanging the cable vertically and connecting the sheet metal box to a section of the cable. When started,
Suitable for this type of exercise, FR-2PNCT-T-S, FR-3PNCT-T-S
Our company not only customize 2PNCT-B 2PNCT-T-U 2PNCT-SB 3PNCT-B rubber cable，but also customize rubber cables of the following types of rubber cables
1 General rubber cable: 2PNCT 3PNCT
2 Bend-resistant rubber cable: BR-2PNCT
3 Flat rubber cable: H-2PNCT; H-3PNCT; 3300VH-3PNCT; 6600V H-3PNCT
3300V FG-H-3PNCT; 6600VFG-H-3PNCT; F-3PNCT; 3300VF-3PNCT; 6600VF-3PNCT
4 Rubber cables for welding: WCT; WNCT; WRCT; WRNCT; E-WCT; E-WRCT
