Halogen-free rubber insulated neoprene sheathed NSHXAFö 3kV rubber cable

Halogen-free rubber insulated neoprene sheathed NSHXAFö 3kV rubber cable is robust solutions designed for challenging industrial applications, particularly where cables must withstand harsh conditions and provide reliable power distribution.This article explores the structure, features, and uses of the NSHXAFö 3kV cable, compares it with the NSGAFÖU 3kV cable, and highlights the unique aspects and advantages of each type, aiding professionals in selecting the most suitable cable for their specific needs.

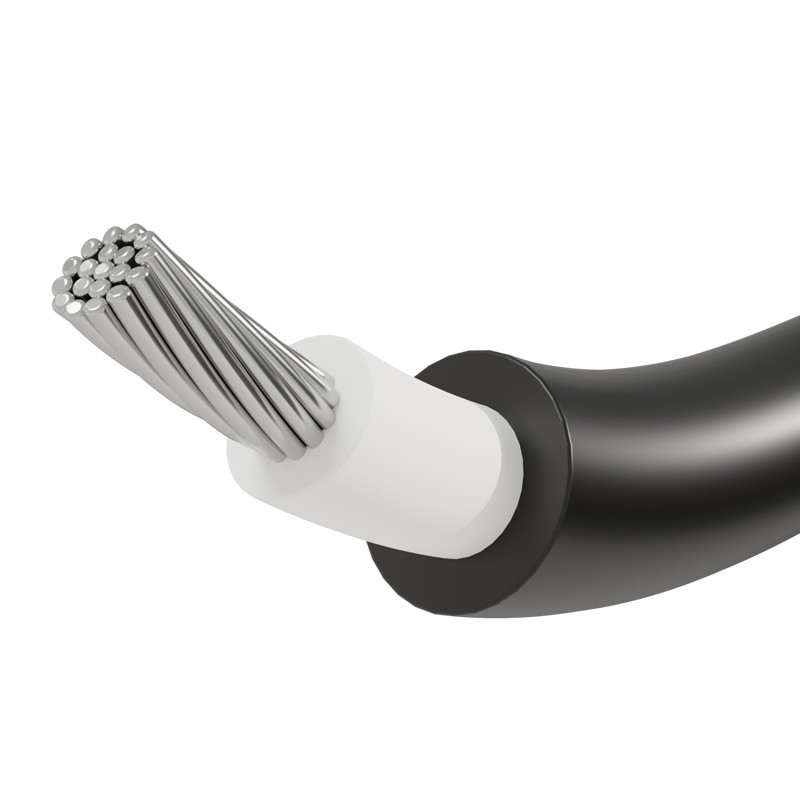

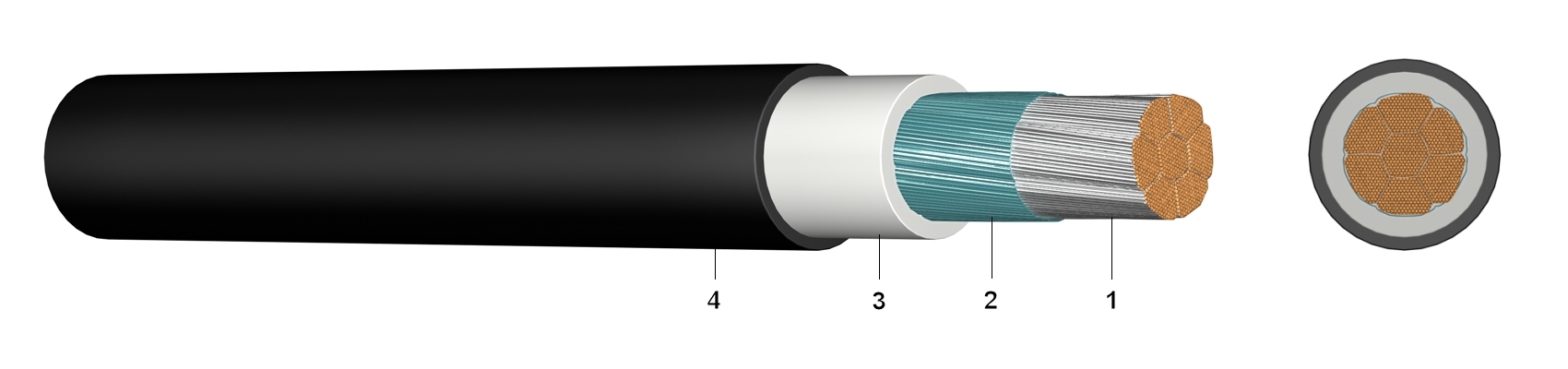

Structure of Halogen-free rubber insulated neoprene sheathed NSHXAFö 3kV rubber cable

Conductor: The NSHXAFö 3kV cable features finely stranded copper conductors, designed for high conductivity and flexibility. The stranding of the copper helps the cable withstand the mechanical stresses of industrial environments.

Insulation: This cable utilizes EPR (Ethylene Propylene Rubber) as its primary insulation material. EPR is known for its excellent dielectric properties, as well as its resistance to thermal aging, weather conditions, and electrical stresses. This makes it ideal for medium voltage applications.

Sheath: The outer sheath of the NSHXAFö 3kV cable is made from a special type of halogen-free compound. This sheath not only protects the internal components of the cable from mechanical damage but also ensures low smoke emission and zero halogen release in the event of a fire, making it safe for use in densely populated installations.

Features of Halogen-free rubber insulated neoprene sheathed NSHXAFö 3kV rubber cable

• High Voltage Tolerance: With a rating of 3kV, the NSHXAFö is suitable for medium voltage applications, providing reliable and efficient power transmission.
• Flexibility: Despite its robust construction, the NSHXAFö cable is designed to be flexible, facilitating easy installation in tight spaces and around complex machinery.
• Safety: The halogen-free sheath material significantly enhances safety by reducing the emission of toxic and corrosive gases during combustion.
• Durability: The EPR insulation and specialized sheath contribute to the cable's overall durability, ensuring it can withstand environmental and chemical stresses.

Applications of Halogen-free rubber insulated neoprene sheathed NSHXAFö 3kV rubber cable

The NSHXAFö 3kV cable is primarily used in industrial environments that require a reliable power supply under medium voltage. Typical applications include:

• Mining: Where cables must be resistant to mechanical wear and tear.
• Renewable Energy Plants: Such as wind farms or solar power installations, where cables need to handle fluctuating voltages.
• Infrastructure Projects: Like underground systems or public utility networks, where safety and reliability are paramount.

Comparison with NSGAFÖU 3kV rubber Cable

Structure Comparison:

• NSGAFÖU 3kV Cable: Similar to the NSHXAFö, the NSGAFÖU 3kV also features finely stranded copper conductors and EPR insulation. However, its key distinction lies in its robust rubber sheath, which is designed to be exceptionally resistant to abrasion and mechanical impact. This makes it particularly suited for tunneling and mining applications.

Performance Differences:

• Flexibility: While both cables are flexible, the NSHXAFö is generally lighter and easier to handle, which may be beneficial in less demanding mechanical environments.
• Safety: Both cables offer low smoke and halogen-free features, but the NSHXAFö's sheathing materials are optimized for better fire performance and lower smoke density under combustion.
• Durability and Suitability: The NSGAFÖU's tougher sheath makes it more suitable for extreme conditions, whereas the NSHXAFö is typically favored in environments where fire safety is a concern.

Both the NSHXAFö 3kV and NSGAFÖU 3kV cables are excellent choices for medium voltage industrial applications, offering reliability, safety, and durability. The selection between the two should consider the specific environmental challenges and installation requirements of the application. NSHXAFö 3kV cables are particularly recommended for areas where safety during fire is crucial, while NSGAFÖU 3kV cables are ideal for more physically demanding environments. Understanding these cables' structures and features allows professionals to make informed decisions, ensuring optimal performance and compliance with safety standards in their cable installations.
