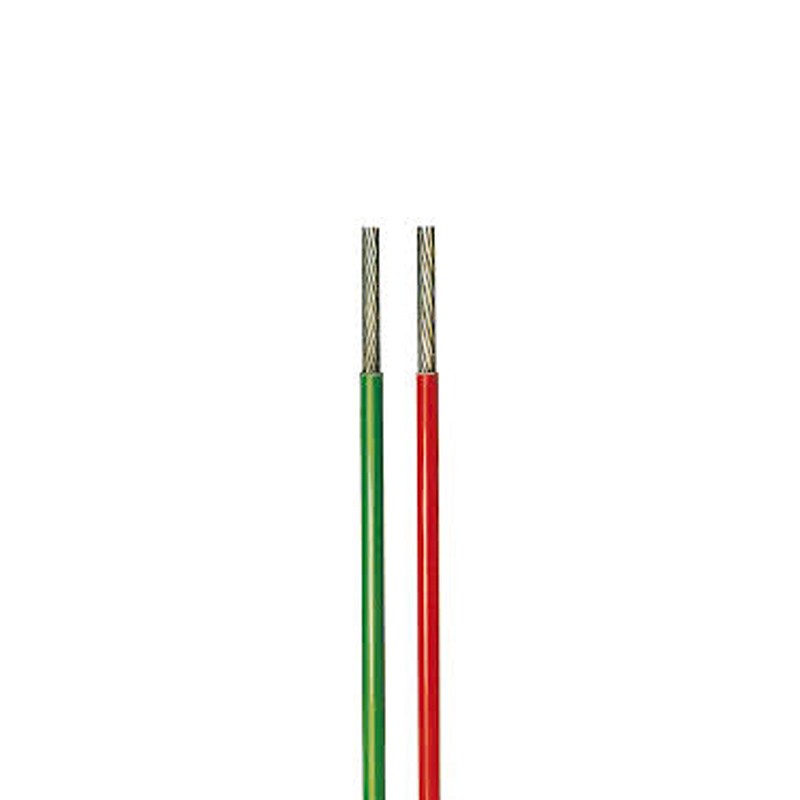

High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y

High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y is an excellent choice for applications requiring exceptional resistance to high temperatures, chemical exposure, and electrical interference. Made with polytetrafluoroethylene (PTFE), these cables are renowned for their robustness and versatility in challenging environments. This article will delve into the structure, characteristics, and applications of PTFE-5Y cables, comparing them with FEP-6Y cables to highlight the distinct advantages and suitable applications of each.

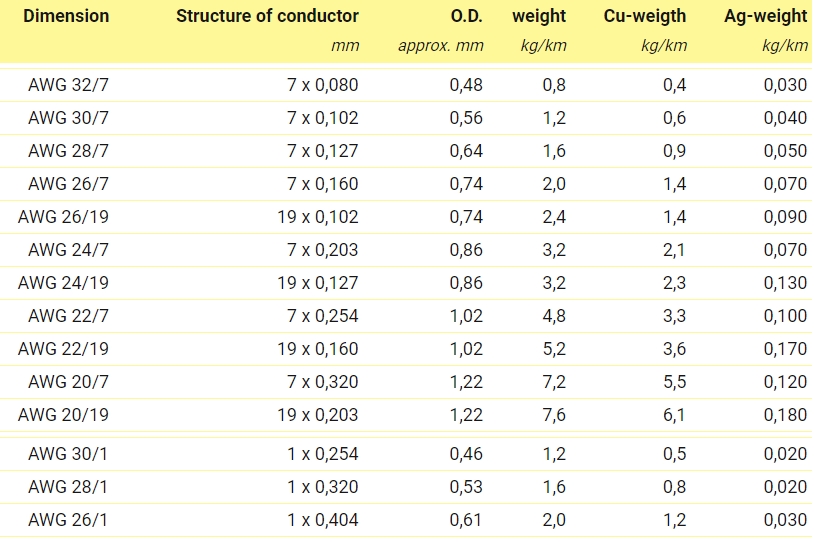

Structure of High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y

Conductor: PTFE-5Y cables typically feature conductors made from finely stranded silver-plated copper, providing excellent electrical conductivity and high-temperature resistance. The silver plating enhances the solderability and corrosion resistance of the conductors.

Insulation: The core distinguishing feature of PTFE-5Y cables is their PTFE insulation. PTFE, or Teflon, is known for its outstanding chemical stability, heat resistance, and electrical insulating properties. It can withstand continuous exposure to temperatures as high as 260°C and intermittent exposure up to 300°C.

Jacket: Although the primary insulation itself is often sufficient to protect the conductors, some PTFE-5Y cables may include an additional jacket layer made from compatible materials that enhance mechanical protection and environmental resistance.

Features of High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y

• Extreme Temperature Resistance: PTFE-5Y cables are ideal for environments where high temperatures are prevalent, capable of operating in conditions ranging from -65°C to +260°C.
• Chemical and UV Resistance: PTFE is virtually inert to most chemicals, including industrial solvents, acids, and bases, making these cables highly durable in chemical processing environments. It also offers excellent resistance to UV radiation, ensuring long-term stability outdoors.
• Electrical Performance: Known for its excellent dielectric strength, PTFE provides superior electrical insulation, making PTFE-5Y cables suitable for high-voltage applications and environments with significant electrical noise.
• Non-flammability: PTFE is highly flame-retardant, adding an extra layer of safety in fire-sensitive applications.

Applications of High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y

PTFE-5Y cables are extensively used in various demanding applications:

• Aerospace and Aviation: For wiring in aircraft and spacecraft due to their ability to withstand extreme temperatures and resist jet fuels and hydraulic fluids.
• Chemical Processing: In sensors and instrumentation where exposure to harsh chemicals is common.
• Automotive: Particularly in engine compartments where high heat and exposure to automotive fluids are routine.
• Electronics: For internal wiring in electronic equipment, where high insulation integrity and thermal stability are required.

Comparison with FEP-6Y Cable

Structure Comparison:

• Both PTFE-5Y and FEP-6Y cables use high-quality copper conductors, often silver-plated, and rely on fluoropolymer-based insulation. However, PTFE insulation in PTFE-5Y cables generally offers a higher temperature resistance compared to the FEP insulation used in FEP-6Y cables.

Performance Differences:

• Temperature Range: PTFE-5Y cables can handle higher temperatures (up to 260°C continuously), compared to FEP-6Y cables (up to 200°C).
• Flexibility: FEP-6Y cables are usually more flexible than PTFE-5Y cables, making them easier to install in tight spaces and around sharp corners.
• Cost and Processing: PTFE is more challenging and costly to process than FEP, which may make FEP-6Y cables a more cost-effective option for applications where the extreme temperature capabilities of PTFE are not required.

Choosing between PTFE-5Y and FEP-6Y cables largely depends on the specific requirements of the application, including the need for extreme temperature resistance, chemical exposure, and electrical performance.High temperature resistance 260°C Silver-plated copper wire conductor PTFE-5Y insulated heat-resistant wire Li5Y - 5Y offer superior heat resistance and electrical properties, making them suitable for high-stress environments such as aerospace and chemical processing industries. In contrast, FEP-6Y cables provide a balance of performance and flexibility, ideal for automotive and general industrial applications where moderate temperature resistance is sufficient. Understanding the unique properties of each cable type allows professionals to make informed decisions that optimize both performance and cost in their electrical installations.
