In the realm of data communication, the reliability and efficiency of signal transmission are paramount. The HF75 coaxial cable combination shield flat cables, specifically Data communication conductors HF75 coaxial cable combination shield flat cable FLi-9Y(C)Y FLi-9Y(C)H, are designed to meet the rigorous demands of high-frequency data transmission. This article will explore the structure, features, applications, and provide a comparative analysis of these two types of cables, emphasizing their unique capabilities and suitable applications,Data communication conductors / Cat7 / unsupported FLi-2YS(ST)(C)Y FLi-2YS(ST)(C)H Flat Travelling Cable.

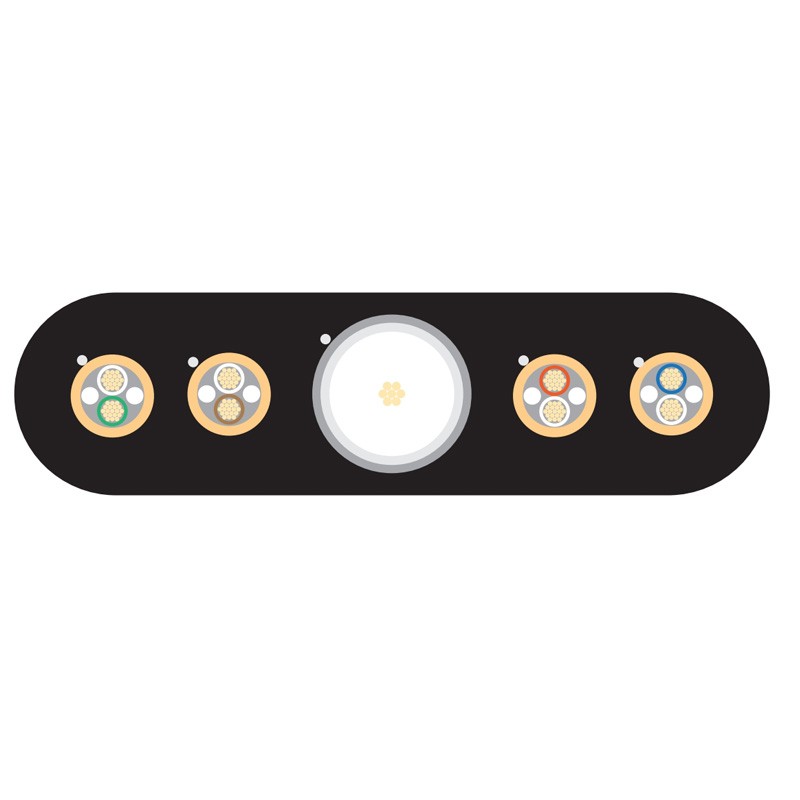

Structure of FLi-9Y(C)Y and FLi-9Y(C)H Cables
HF75 Coaxial Core:
-
Inner Conductor: Both cables utilize a finely stranded copper inner conductor, which offers excellent conductivity and minimizes signal loss.
-
Dielectric Insulation: Surrounding the inner conductor is a dielectric insulation made from polyethylene (PE) or polypropylene (PP), ensuring minimal signal attenuation and superior high-frequency performance.
Shielding:
-
Combination Shield: The HF75 coaxial core is shielded with a combination of aluminum foil and a braided copper shield. This dual-layer shielding effectively reduces electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean and stable signal transmission.
Outer Sheath:
-
FLi-9Y(C)Y: Features a Polyvinyl Chloride (PVC) outer sheath, known for its durability, flexibility, and cost-effectiveness. PVC provides adequate protection against mechanical stress and environmental factors.
-
FLi-9Y(C)H: Utilizes a Low Smoke Zero Halogen (LSZH) outer sheath, which is designed to emit minimal smoke and non-toxic fumes in the event of a fire, enhancing safety in enclosed or populated areas.
Features of FLi-9Y(C)Y and FLi-9Y(C)H Cables
High-Frequency Transmission:
-
Both cables support high-frequency data transmission, making them suitable for applications that require reliable and fast signal transmission.
EMI and RFI Protection:
-
The combination shield of aluminum foil and braided copper provides excellent protection against EMI and RFI, ensuring signal integrity in electrically noisy environments.
Durability:
-
The robust construction of both cables ensures longevity and reliable performance under various environmental conditions.
Safety:
-
FLi-9Y(C)H: Offers enhanced fire safety due to its LSZH sheath, making it ideal for use in areas where fire safety is a critical concern.
Applications of FLi-9Y(C)Y and FLi-9Y(C)H Cables
FLi-9Y(C)Y Cable:
-
Home Entertainment Systems: Used for connecting televisions, set-top boxes, and other AV equipment, providing clear and reliable signal transmission.
-
Data Centers: Ideal for data communication in server rooms and data centers, where high-frequency transmission and flexibility are required.
-
Commercial Buildings: Suitable for use in office buildings for network and communication installations, where cost-effectiveness is a priority.
FLi-9Y(C)H Cable:
-
Public Buildings: Perfect for installations in schools, hospitals, and government buildings, where low smoke and low toxicity are crucial for safety.
-
Transportation Systems: Used in subways, trains, and airports to ensure reliable data communication while prioritizing fire safety.
-
High-Risk Areas: Ideal for use in environments where fire hazards are significant, providing enhanced safety without compromising performance.
Comparison Between FLi-9Y(C)Y and FLi-9Y(C)H Cables
While both FLi-9Y(C)Y and FLi-9Y(C)H cables share similar structural and functional characteristics, their key differences lie in the outer sheath material and associated applications:
Sheathing Material:
-
FLi-9Y(C)Y: Utilizes a PVC sheath, which is durable and cost-effective, suitable for general applications where fire safety is not the primary concern.
-
FLi-9Y(C)H: Features an LSZH sheath, offering enhanced fire safety by emitting minimal smoke and non-toxic fumes, ideal for high-risk environments.
Applications:
-
FLi-9Y(C)Y: Best suited for commercial and residential applications where cost-effectiveness and durability are prioritized.
-
FLi-9Y(C)H: Ideal for public and high-risk areas where fire safety is critical, such as hospitals, schools, and transportation systems.
Data communication conductors HF75 coaxial cable combination shield flat cable FLi-9Y(C)Y FLi-9Y(C)H excel in providing reliable, high-speed data transmission with robust protection against EMI and RFI. The choice between these two cables depends largely on the specific application requirements, particularly concerning fire safety and environmental conditions. Understanding these differences ensures optimal performance and safety in various data communication systems, from home entertainment and commercial buildings to public infrastructure and transportation systems. By selecting the appropriate cable, you can significantly enhance the efficiency, safety, and longevity of your data communication installations.
