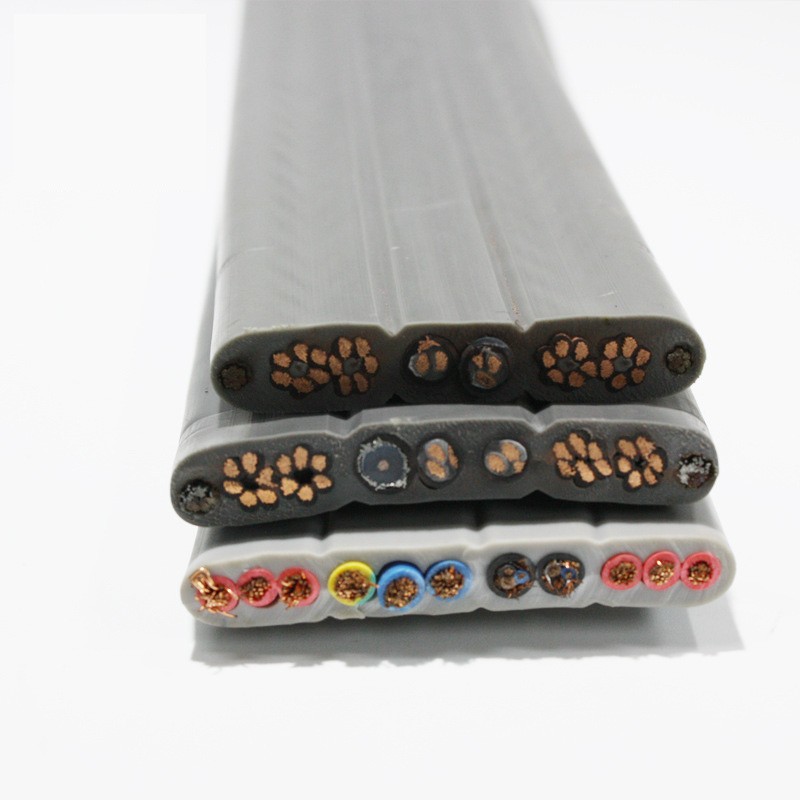

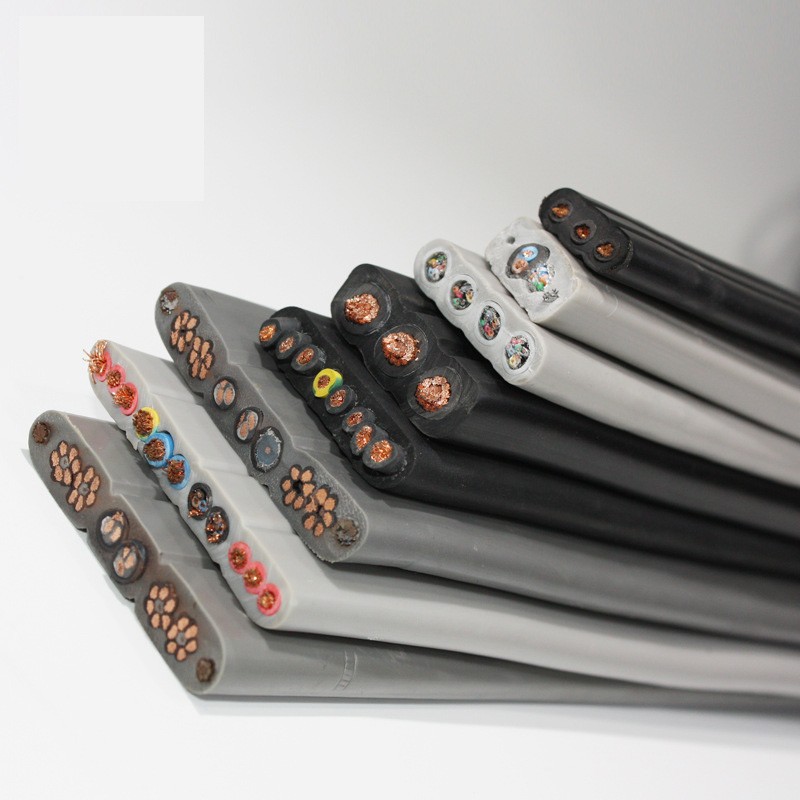

NGFLGÖU-J Special Neoprene rubber flat cable

NGFLGÖU-J Special Neoprene rubber flat cable is suitable for mobile electrical equipment with AC rated voltages of 450v/750v and below. The flat structure is especially suitable for occasions with frequent bending and is not easy to kink, such as cranes and cranes. The conductive core adopts a soft structure to ensure that the cable has good flexibility. Insulation and protective layer materials use butyl polymer to improve the softness, corrosion resistance and cold resistance of the cable.

Color separation of insulated cores provides convenience for laying and installation. According to customer needs, steel wire ropes or other load-bearing components can be added on both sides of the cable core,special pvc flat cable .

NGFLGÖU-J Special Neoprene rubber flat cable Construction:

1 ..... fine-stranded bare copper

2 ..... core insulation of a rubber compound (3Gl3), laid up parallel

3 ..... outer sheath out of a rubber compound (5GM3), black, flame retardant

NGFLGÖU-J Special Neoprene rubber flat cable Standards:

DIN VDE 0250-809

DIN EN 60228 class 5 and 6 (construction)

HD 308 S2 (core identification)

NGFLGÖU-J Special Neoprene rubber flat cable characteristic

PVC self-extinguishing and flame-retardant acc. to VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1 (equivalent to DIN VDE 0472-804 test method B)

oil-resistant HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1,ozone-resistant /UV-resistant /moisture-resistant

NGFLGÖU-J Special Neoprene rubber flat cable technical parameter

Rated voltage: 450/750V

Test voltage: 2500V/5min

Operating temperature range: fixed installation -25 to +70°C; mobile installation -15°C to +70°C

The bending radius is: 7.5xD

Flame retardant characteristics: single vertical burning test meets IEC332-1 standard

Material performance: tensile resistance, tear resistance, wear resistance, cold resistance, oil resistance, bending resistance

Special purpose: when the use length is greater than 100 meters, and the speed is greater than 4 meters per second, we can design to add tensile steel wire or tensile materials.

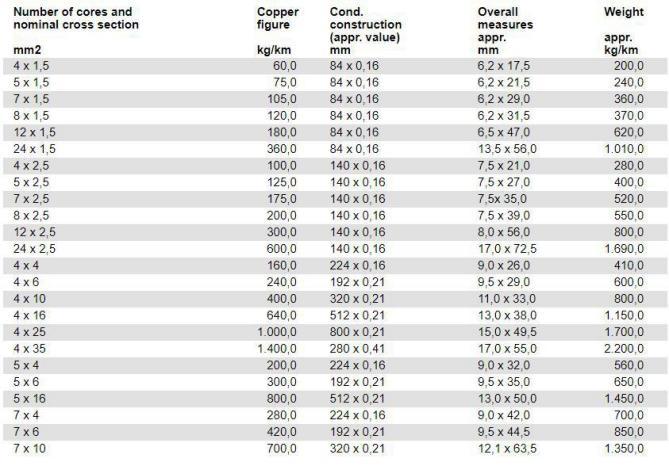

NGFLGÖU-J Special Neoprene rubber flat cable Common specifications and parameters
