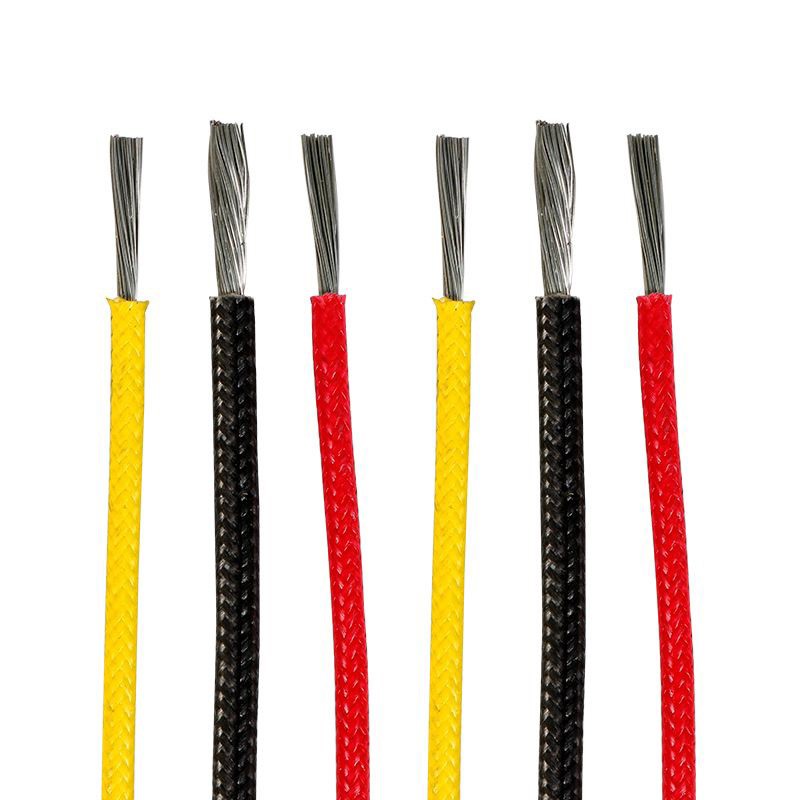

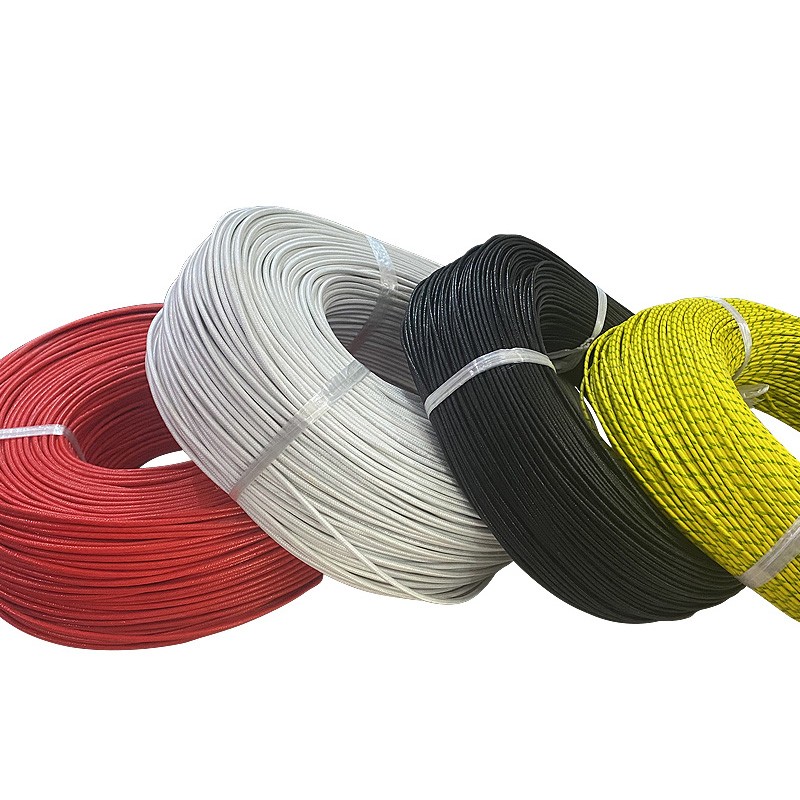

High temperature heat resistant wire UL3122

Tinned copper wire glass fiber braided silicone rubber high temperature heat resistant wire UL3122/AGRP/YG has the characteristics of resistance to heat radiation, cold resistance, acid and alkali resistance, corrosive gases, and waterproofing. The heat resistant cable structure is soft, convenient for radiation, stable electrical performance under high temperature (high cold) environment, outstanding anti-aging performance, long service life, and is widely used in metallurgy. , electric power, petrochemical, electronics, automobile manufacturing and other industries.
What is the difference between silicone rubber cable and ordinary rubber sheathed cable?
Silicone rubber has good bending properties and low-temperature properties, and is not easily damaged and cracked. These properties are not found in general high-temperature cables, so silicone rubber cables have a wide range of applications. Silicone rubber cables are used in high-temperature mobile cables, soft power cables, high-temperature-resistant motor lead wires, and low-temperature environments and high-temperature operating places.

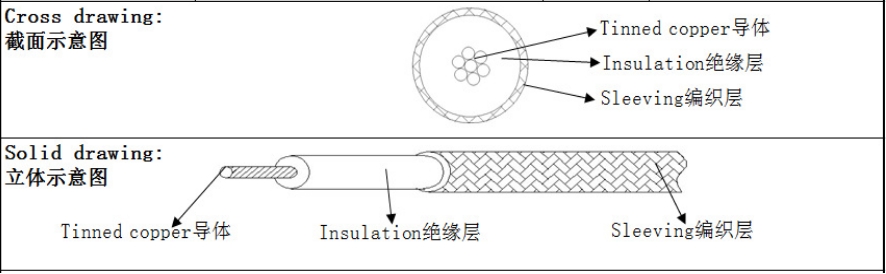

Tinned copper wire glass fiber braided silicone rubber high temperature heat resistant wire UL3122/AGRP/YG structure:
Conductor: Single strand tinned copper wire, in line with GB/T 3956-2008 and IEC 60228: 2004 Class 5 conductor
Insulation: silicone rubber/high tear resistance silicone rubber

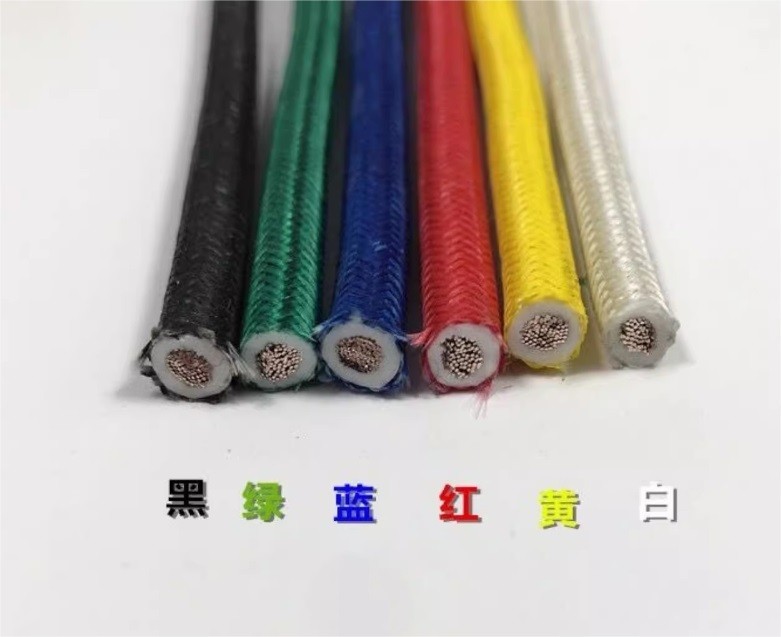

Insulation color: red/black/yellow/blue/black/white/green, etc. Various colors can be selected according to customer needs
Weaving: fiberglass + silicone

Tinned copper wire glass fiber braided silicone rubber high temperature wire UL3122/AGRP/YG characteristics:
The long-term working temperature of the wire should not exceed 180℃, and the short-term working temperature should be 200℃
Resistant to various greases, alcohols, vegetable and animal fats and chemicals
High temperature resistance, low temperature resistance, water hydrolysis, microbial resistance, and good ozone resistance
High voltage resistance, low high frequency loss, no moisture absorption, high insulation resistance

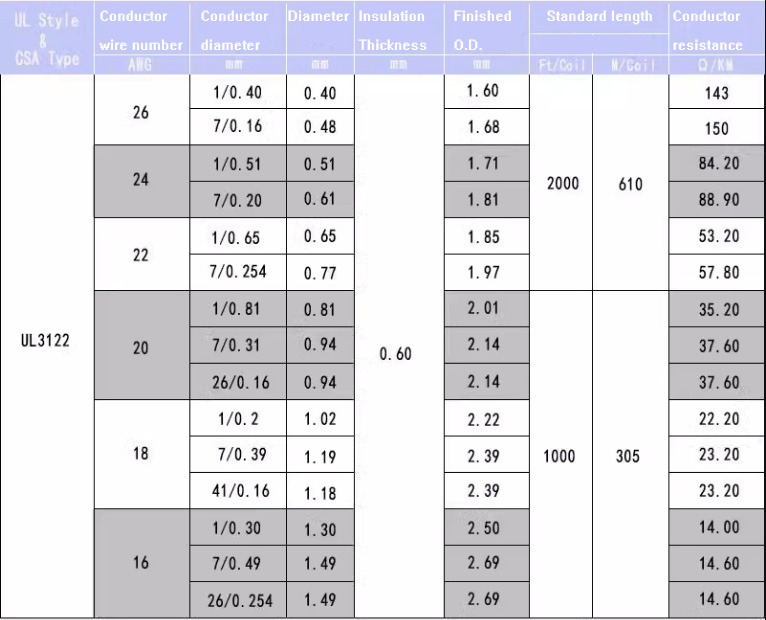

Tinned copper wire glass fiber braided silicone rubber high temperature wire UL3122/AGRP/YG technical parameters:
Working voltage: 300/500V
Test cable: 2000V
Insulation resistance: ≥ 200 MΩ . Km (20℃)
Bending radius: fixed installation 6 X D (cable outer diameter)
Working temperature: fixed installation - 60 ~ +180℃
Tinned copper wire glass fiber braided silicone rubber high temperature heat resistant wire UL3122/AGRP/YG is suitable for electrical equipment wiring, mechanical internal connecting wires, lighting fixtures wires, electronic wires, LED module wires, household appliance wiring, automobile connecting wires, Terminal connecting wires, transformer wires, circuit board connecting wires, LED light strip wires, etc,If you need a cable with a temperature higher than 300°C, please refer to Fiberglass braid high temperature insulated heat resistant wire.
