Reeling use PUR Sheath Cable NSHTOU NSHTOU-J NSHTOEU

Reeling use PUR Sheath Cable NSHTOU NSHTOU-J NSHTOEU is designed specifically for drum reeling applications. On anything from dockside cranes to automated conveyor systems, NSHTöu copes with incredible workloads. Good UV and weather resistance makes the cable suitable for exposed outdoor installation. As connection and control cable in lifting devices, hoisting plants and transporting machines for heavy mechanical load, and as drum and drag cable or hawser in dry, damp or wet rooms and in wet industrial conditions.The cable can be reeled and is resistant to acids, lyes, and oils.

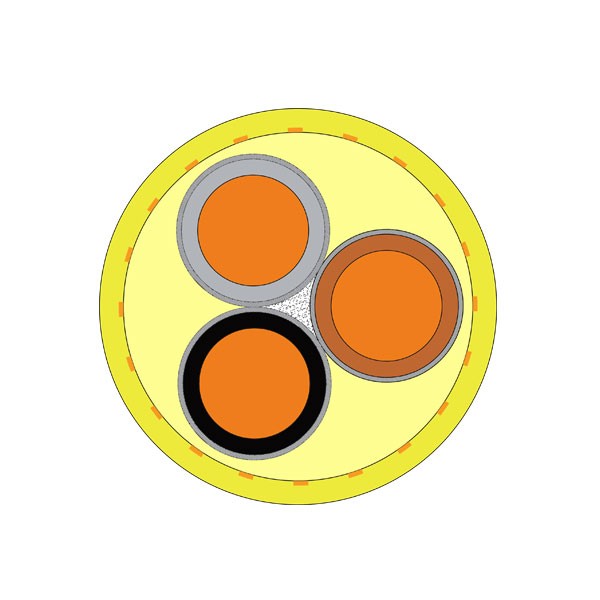

Reeling use PUR Sheath Cable NSHTOU NSHTOU-J NSHTOEU Construction:

1 ..... fine-stranded tinned copper
2 ..... core insulation of rubber compound (EPR)
3 ..... inner sheath of rubber ( 5GM2) with open plaiting out of plastic
threads to protect the cable from torsion
4 ..... outer sheath of PUR, black or Orange,oil resistant and flame retardant

Reeling use PUR Sheath Cable NSHTOU NSHTOU-J NSHTOEU Technical:
· Working voltage: 600/1000 volts
· Testing voltage: 2500 volts
· Flexing bending radius: 10 x Ø
· Flexing temp: -35º C to +70º C
· Static temp: -45º C to +80º C
· Flame retardant: IEC 60332.1
· Insulation resistance: > 20 MΩ x km
