flat cable (N)GFLGÖU- J (N)GFLGÖU- JZ

Category： Flat Ribbon Cable
flat cable
INQUIRY EMAIL

Flexible power and control rubber flat cable (N)GFLGÖU-J (N)GFLGÖU-JZ designed for mechanical stresses, especially for applications with frequent bending during operation in one plane only.The cable is used on festoon systems and for connecting movable parts of machine tools, material handling equipment. For use in wet or dry conditions, outdoors and indoors.

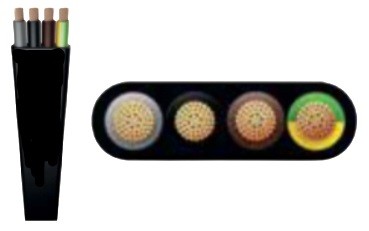

Flexible power and control rubber flat cable (N)GFLGÖU-J (N)GFLGÖU-JZ Construction:

Conductor: flexible red copper conductor Cl. 6, acc to IEC 60228, DIN VDE 0295 (<=25 mm2 ) Flexible red copper conductor Cl. 5, acc to IEC 60228, DIN VDE 0295 (>=35 mm2 )
Insulation: EPR type 3GI3 acc. to DIN VDE 0207
Stranding: cores laying parallel
Outer sheath: black (similar to RAL 9005), rubber PCP type 5GM3
Circuit identification:
Colour coding of power conductors compliant to HD 308, DIN VDE 0293- 308
-J version:
3 – core: Green-yellow, blue, brown
4 – core: Green-yellow, brown, black, grey or green-yellow, blue, brown, black
5 – core: Green-yellow, blue, brown, black, grey

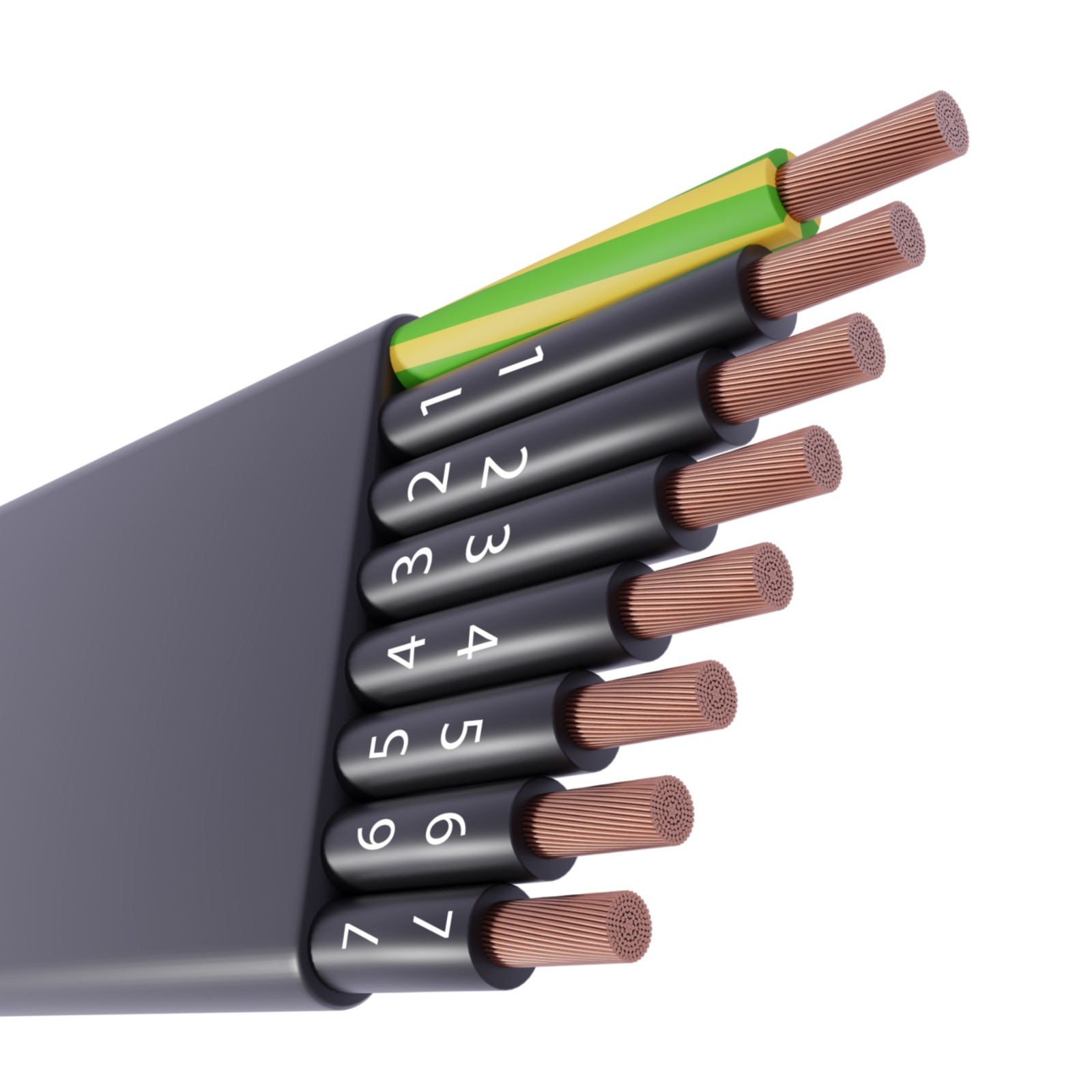

Above 5 cores: Green-yellow, other cores black with white numbering
-O version:
3 – core: Brown, black, grey or blue, brown, black
4 – core: Blue, brown, black, grey
5 – core: Blue, brown, black, grey, black

Above 5 cores: Black with white numbering

Flexible power and control rubber flat cable (N)GFLGÖU-J (N)GFLGÖU-JZ Electric characteristic

tested voltage	300/500 V
AC test voltage	2.5 kV
Current carrying capacity	DIN VDE 0298-4
Max conductor operating temperature	+90°C
Max. conductor temperature during short circuit	+250°C
Minimum ambient temperature for fixed installation	-40°C
Minimum ambient temperature for mobile installation	-25°C
Oil resistance	PN-EN 60811-404, IEC 60811-404
UV resistance	UL 2556, ISO 4892-2
Ozone resistant	PN-ISO 1431-1
Travel speed	180 m/min
Tensile load	15 N/mm2
Flame propagation	PN-EN 60332-1-2, IEC 60332-

Welcome to contact us for customization flat cable (N)GFLGÖU- J (N)GFLGÖU- JZ, minimum order quantity is 50 meters, factory direct sales.
