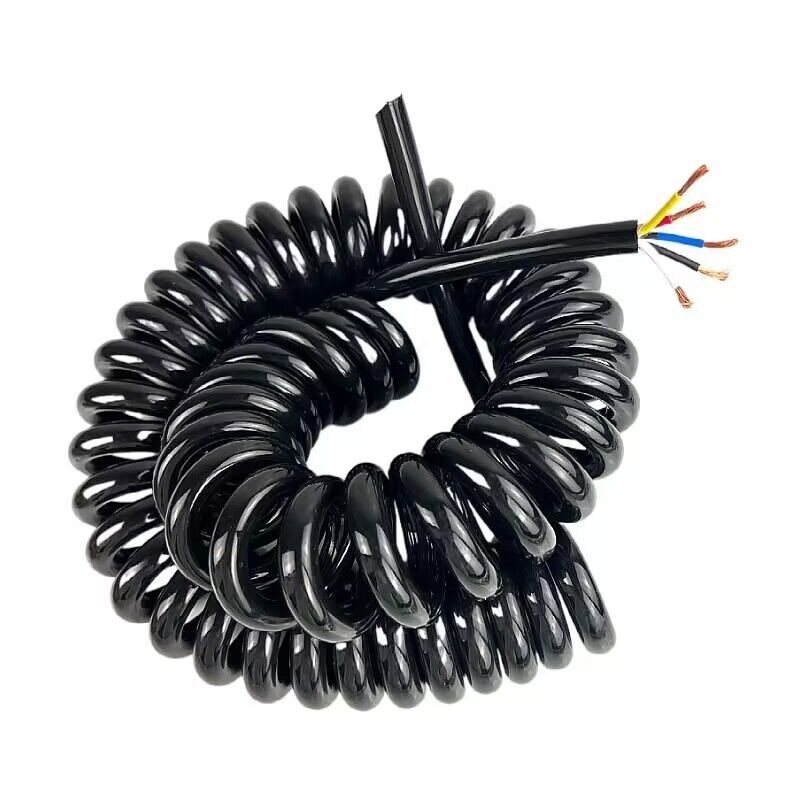

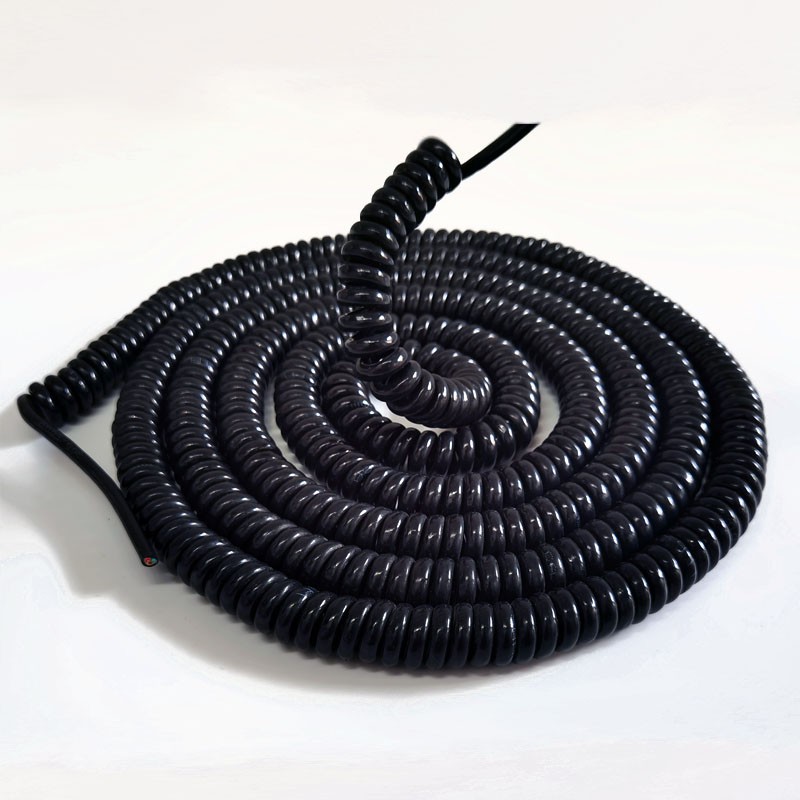

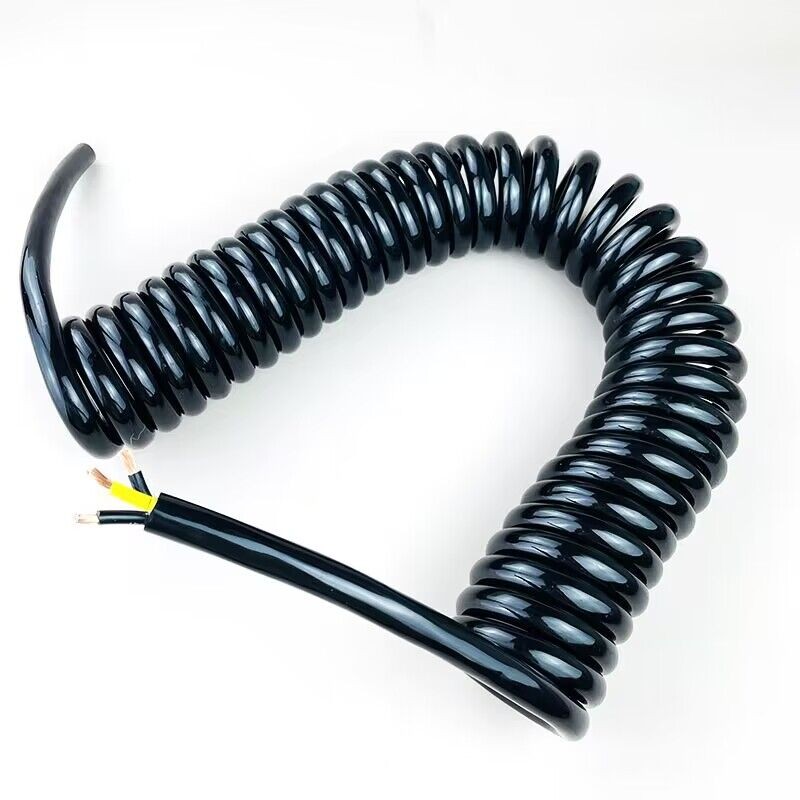

TPE-E insulated spiral cable with PUR jacket LI12Y11Y

TPE-E insulated spiral cable with PUR jacket LI12Y11Y are designed to meet the high demands of dynamic applications where cables need to offer not only flexibility and durability but also high performance under mechanical stress. This article explores the structure, features, and applications of LI12Y11Y cables and compares them with H05BQ-F spring cables to highlight their differences and suitability for various applications.

Structure of LI12Y11Y Spring Cable

Conductor: LI12Y11Y cables typically feature finely stranded bare copper conductors, optimized for high flexibility and good conductivity, essential for applications that involve movement and bending.

Insulation: The insulation of LI12Y11Y cables is usually made from special PVC compound or TPE (Thermoplastic Elastomer), which provides excellent resistance to wear and tear, oils, and other chemicals. The choice of material ensures that the cable remains flexible yet durable under various environmental conditions.

Shielding: Depending on the application, LI12Y11Y cables may include a tinned copper braid or spiral shielding that protects against electromagnetic interference, making them suitable for environments where EMI could disrupt signal integrity.

Outer Jacket: The outer jacket is also made of a robust PVC compound or TPE, providing an extra layer of protection against mechanical damage, UV radiation, and moisture, enhancing the overall durability and lifespan of the cable.

Features of LI12Y11Y Spring Cable

• High Flexibility: LI12Y11Y cables are highly flexible, designed to withstand constant bending and twisting without compromising performance.
• Durability: These cables are built to resist harsh environments, including exposure to oils, chemicals, and extreme temperatures.
• EMI Resistance: With optional shielding configurations, LI12Y11Y cables can offer excellent protection against electromagnetic interference, ensuring reliable data and power transmission.
• Thermal Resistance: Capable of operating in temperatures ranging from -30°C to +70°C, LI12Y11Y cables maintain their flexibility and performance even in challenging climatic conditions.

Applications of LI12Y11Y Spring Cable

LI12Y11Y cables are ideal for various applications, including:

• Industrial Automation: Connecting machinery and sensors in automated production lines where high movement and flexibility are required.
• Robotics: Used in robotic arms and other automated systems where cables need to endure frequent bending and twisting.
• Mobile Equipment: Suitable for connecting mobile parts of construction machinery or vehicles where cables must be resistant to oils, abrasion, and external impacts.

Comparison with H05BQ-F Spring Cable

While both LI12Y11Y and H05BQ-F cables are designed for demanding environments where flexibility and durability are crucial, there are notable differences:

• Material Composition: H05BQ-F cables typically use PUR for both insulation and jacket, which offers superior abrasion resistance and flexibility compared to the PVC used in LI12Y11Y cables. However, TPE options in LI12Y11Y may offer comparable performance in terms of flexibility and environmental resistance.
• Temperature Range: H05BQ-F cables generally have a broader temperature range (-40°C to +80°C) compared to LI12Y11Y, making them slightly more suitable for extreme environmental conditions.
• Suitability for Heavy-Duty Applications: H05BQ-F cables are often preferred in more rugged applications due to their robust construction and material properties, whereas LI12Y11Y cables are well-suited for dynamic environments where flexibility and EMI protection are prioritized.

Selecting between TPE-E insulated spiral cable with PUR jacket LI12Y11Y and H05BQ-F spring cables depends largely on the specific requirements of the application, including the environmental conditions, mechanical stresses, and the need for flexibility and durability. LI12Y11Y cables offer excellent flexibility and are suitable for applications where EMI protection and dynamic performance are critical, while H05BQ-F cables might be better for environments requiring higher abrasion resistance and a wider temperature range. Understanding the unique properties and advantages of each cable type allows professionals to make informed decisions, ensuring optimal performance and reliability in their electrical and data transmission installations.
