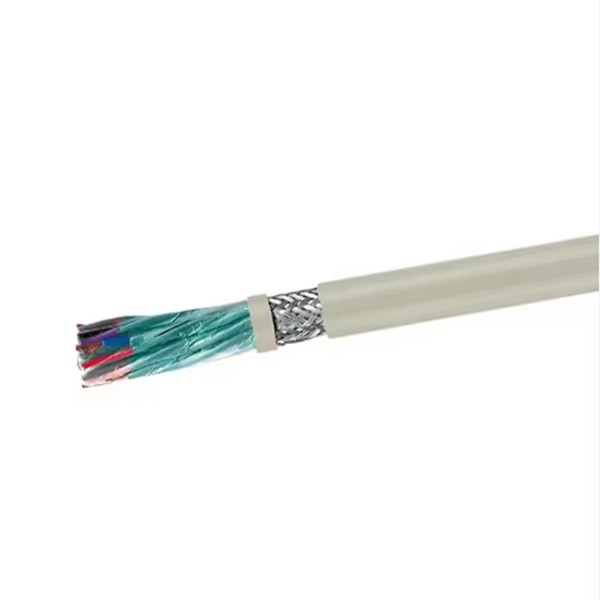

Li2YCY PIMF Data transmission cables for RS 485

In the realm of telecommunications and data transmission, selecting the right cable is not just about making a connection; it's about ensuring reliability, efficiency, and integrity of the information being transmitted. Among the myriad of options available in the market, Li2YCY PIMF Data transmission cables for RS 485 (Paired in Metal Foil) cables stand out due to their superior design and performance characteristics. This article delves into the structure, features, applications, and specifications of Li2YCY PIMF cables, and provides a comparative analysis with Li2YCYv-TP cables to guide professionals in making informed decisions.

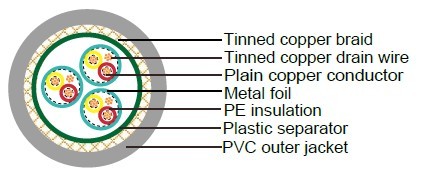

Li2YCY PIMF Data transmission cables for RS 485 Structure

At the heart of Li2YCY PIMF cables lies a sophisticated structure designed to enhance performance and minimize interference. Each pair of conductors is individually insulated and wrapped in a metal foil, a configuration known as PIMF (Pairs in Metal Foil). This is further encompassed by an overall tinned copper braid, providing an additional layer of shielding. The cable is typically encased in a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheath, making it robust against environmental factors.

Li2YCY PIMF Data transmission cables for RS 485 Features

Li2YCY PIMF cables exhibit several distinguishing features:

• Enhanced Signal Integrity: The PIMF configuration ensures superior electromagnetic compatibility (EMC), drastically reducing crosstalk and external EMI interference.
• Robust Physical Properties: The combination of metal foil and copper braid shielding, along with a durable outer sheath, lends these cables exceptional mechanical strength and resistance to environmental stresses.
• Versatility: Available in various conductor sizes and configurations, Li2YCY PIMF cables can be tailored to meet specific requirements of different applications.

Li2YCY PIMF Data transmission cables for RS 485 Applications

Due to their high fidelity in signal transmission and resistance to interference, Li2YCY PIMF cables are ideal for:

• Data centers and server farms, where data integrity is paramount.
• Industrial control systems, for reliable communication amidst heavy machinery and electrical interference.
• Infrastructure projects, including airports and metro stations, for critical communication and security systems.
• High-definition audio and video transmission, where signal quality cannot be compromised.

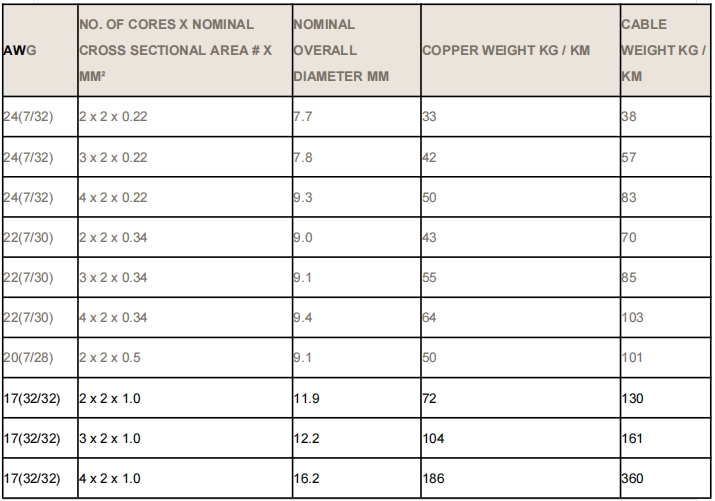

Li2YCY PIMF Data transmission cables for RS 485 Specifications

Specifications vary widely to cater to diverse applications, with conductor sizes ranging from 0.14 mm² to over 2.5 mm² and configurations from 2 to over 25 pairs. Custom lengths and sheath materials are also available to suit specific installation environments.

Comparative Analysis with Li2YCYv-TP Cables

While Li2YCYv-TP cables share some similarities with Li2YCY PIMF cables, such as the use of copper conductors and PVC or LSZH sheathing, there are key differences:

• Shielding: Li2YCY PIMF cables employ individual pair shielding in addition to overall shielding, offering superior protection against EMI/RFI and crosstalk compared to the twisted pair (TP) configuration of Li2YCYv-TP cables.
• Signal Integrity: The double-layer shielding of PIMF cables ensures higher signal integrity over longer distances or in more electrically noisy environments.
• Flexibility and Durability: Though both cable types are designed for durability, the specific structure of Li2YCY PIMF cables might offer enhanced flexibility in certain applications due to the individual shielding of pairs.
