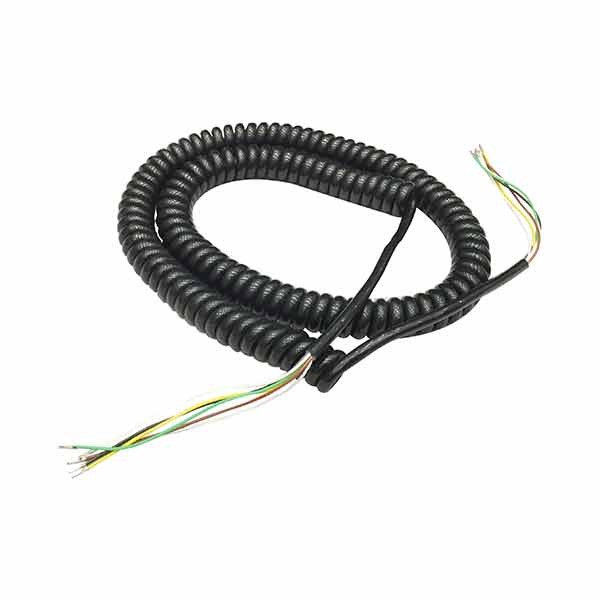

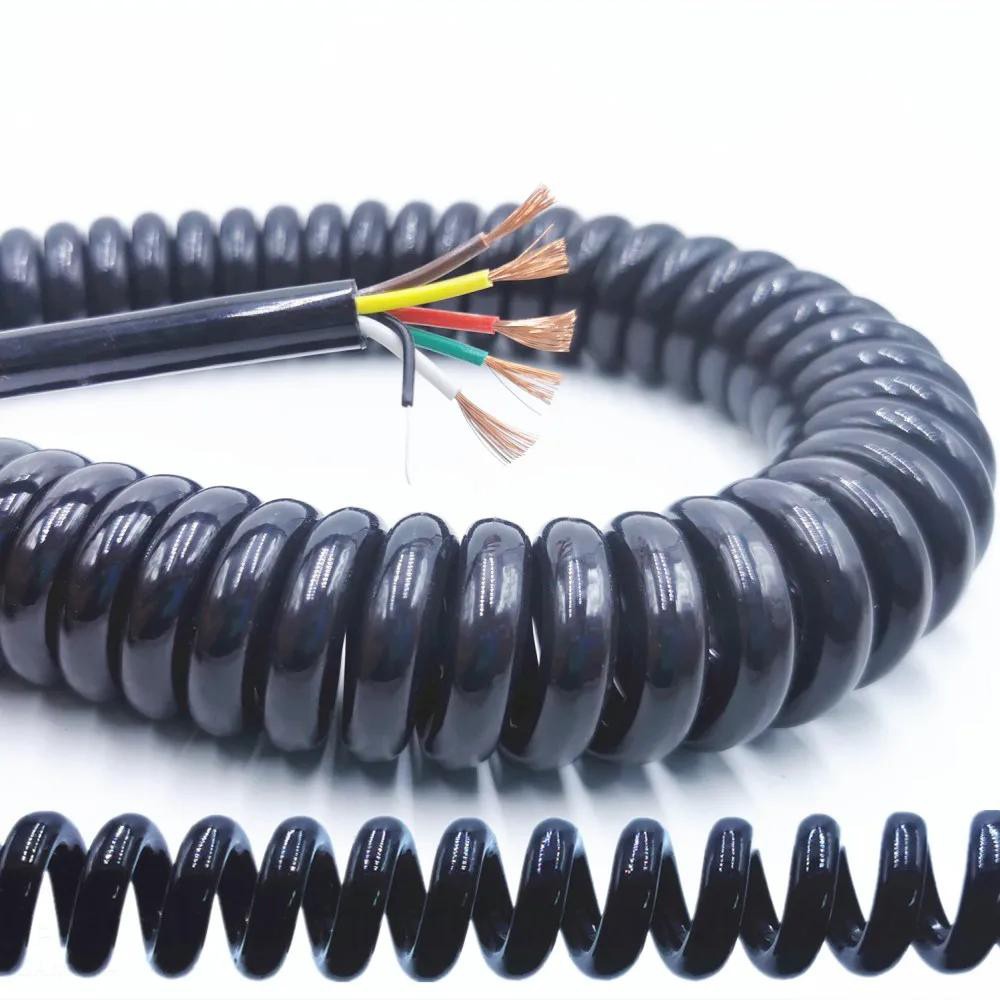

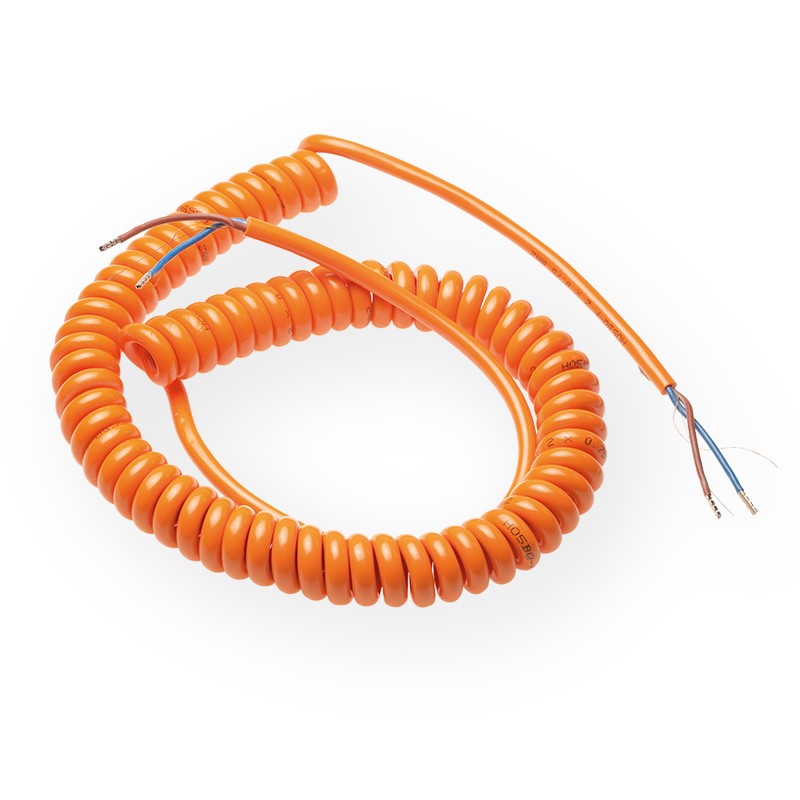

EPR-insulated PUR sheath spiral cable H05BQ-F/H07BQ-F

EPR-insulated PUR sheath spiral cable H05BQ-F/H07BQ-F, often referred to as "spring cables" due to their flexibility and resilience, are specially designed for applications requiring high mechanical durability and excellent performance in tough environments. These cables are part of the harmonized European cable standards, indicating their conformity with European safety standards. This article will delve into the structure, features, and applications of both H05BQ-F and H07BQ-F cables, providing a comprehensive comparison to highlight their respective strengths and ideal uses.

Structure of H05BQ-F and H07BQ-F Cables

Conductor: Both H05BQ-F and H07BQ-F cables are equipped with finely stranded bare copper conductors. The fine stranding enhances the flexibility of the cables, which is essential for applications involving movement or bending.

Insulation: The insulation in both types of cables is made from polyurethane (PUR). PUR is chosen for its excellent properties such as abrasion resistance, oil resistance, and ability to withstand various chemicals and weather conditions.

Sheathing: The outer sheath of these cables is also made of PUR, contributing to the cable's overall robustness and durability. The sheath is not only tough but also non-marking and resistant to UV light, making these cables suitable for both indoor and outdoor use.

Features of H05BQ-F and H07BQ-F Cables

• Durability: Both cable types are designed to withstand harsh conditions, including high mechanical stress, making them ideal for tough industrial environments.
• Flexibility: These cables are highly flexible, capable of being used in applications that require frequent bending and twisting without sustaining damage.
• Chemical and Weather Resistance: The PUR insulation and sheath provide excellent resistance to oils, chemicals, and various weather conditions, enhancing the cable's lifespan and reliability.
• Thermal Resistance: Both cables can operate in temperatures ranging from -40°C to +80°C, allowing for their use in a variety of climatic conditions.

Applications of H05BQ-F and H07BQ-F Cables

H05BQ-F Cables:

• Typically used in lighter applications such as handheld power tools, domestic appliances, and office equipment.
• Suitable for connection to light portable devices that require a flexible and durable cable.

H07BQ-F Cables:

• Ideal for more demanding applications such as construction machinery, industrial plants, and outdoor festivals where equipment requires heavier duty specifications.
• Often used in environments where cables are exposed to higher mechanical stresses and larger voltage requirements.

Comparison Between H05BQ-F and H07BQ-F

While both cables share many characteristics, including their construction materials and flexibility, there are key differences that make each suited to specific applications:

• Voltage Ratings: H07BQ-F cables are designed to handle higher voltage loads compared to H05BQ-F. H07BQ-F can typically handle voltages up to 450/750V, whereas H05BQ-F is rated for up to 300/500V.
• Cable Diameter and Weight: H07BQ-F cables are generally thicker and heavier, reflecting their capacity to handle higher currents and tougher conditions.
• Suitability for Heavy-Duty Use: H07BQ-F is better suited for heavy-duty applications, especially in industrial settings where cables need to withstand significant wear and tear.

Choosing between EPR-insulated PUR sheath spiral cable H05BQ-F/H07BQ-F depends on the specific requirements of the application, including the expected mechanical stress, voltage needs, and environmental conditions. H05BQ-F cables are more suited to light to medium-duty applications, offering flexibility and durability within a more compact design. In contrast, H07BQ-F cables provide additional strength and voltage capacity, making them ideal for heavy-duty applications in more challenging environments. Understanding the unique properties of each cable type allows users to make informed decisions, ensuring optimal performance and safety in their electrical installations.
