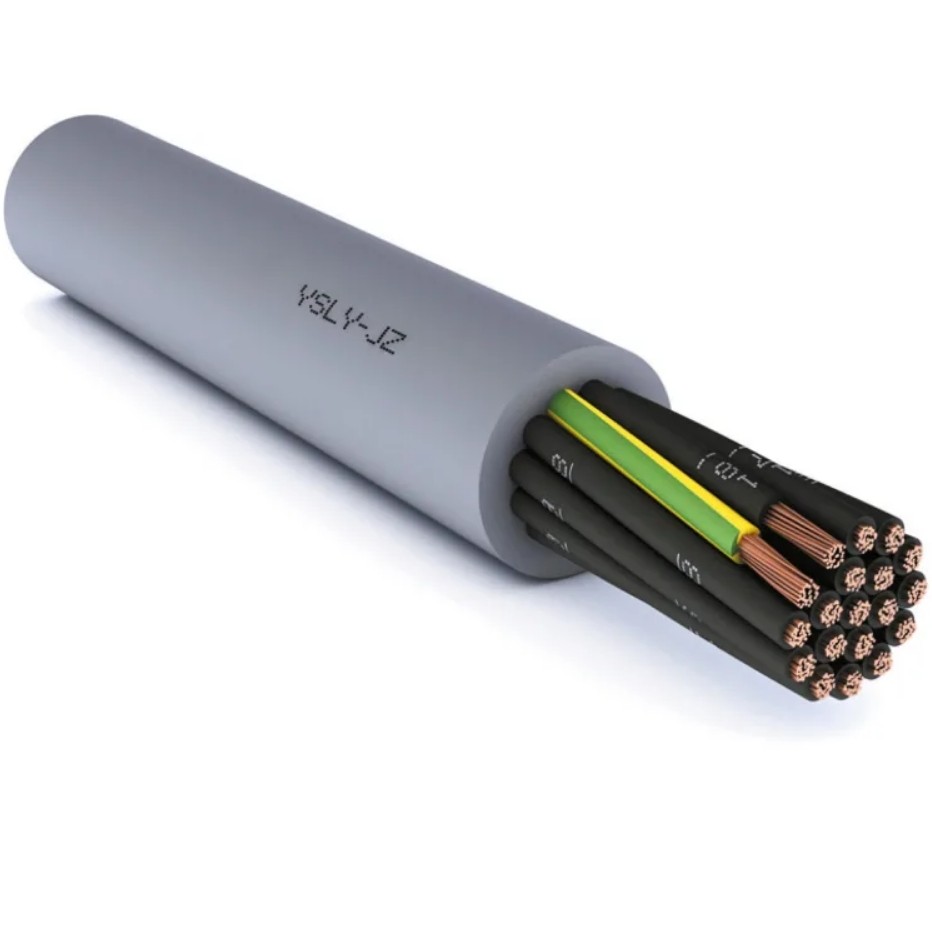

YSLY-OZ/-JZ/-OB/-JB PVC Control Cable belongs to the family of control cables and electronic cables and is suitable for various industrial environments. The fine-stranded wires of the type YSLY ensure smooth data and power transmission.

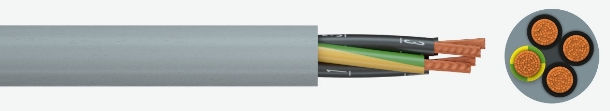

YSLY-OZ/-JZ/-OB/-JB PVC Control Cable Structure
Y: plastic core isolation – in this case PVC
SL: control cable
Y: PVC sheath compound
J: with protective conductor
Z: black core with printed numbers
3: number of cores
1.5: core cross-section in mm²
• YSLY-OZ: without green-yellow protective conductor, black cores with printed numbers
• YSLY-JZ: one green-yellow protective conductor, all other cores are black with printed numbers
• YSLY-OB: without green-yellow protective conductor, core colours in accordance with DIN VDE 0293
• YSLY-JB: one green-yellow protective conductor, all other core colours are in accordance with DIN VDE 0293
YSLY-OZ/-JZ/-OB/-JB PVC Control Cable Common size
|
Product description |
Cu weight |
Outer Ø (mm) |
Weight (kg/km) |
|
YSLY-OZ 2×0.5 |
9,6 |
4,8 |
35 |
|
YSLY-JZ 3×0.5 |
14,4 |
5,1 |
41 |
|
YSLY-JZ 4×0.5 |
19,2 |
5,7 |
49 |
|
YSLY-JZ 5×0.5 |
24 |
6,2 |
60 |
|
YSLY-JZ 7×0.5 |
33,6 |
6,7 |
77 |
|
YSLY-JZ 10×0.5 |
48 |
8,6 |
114 |
|
YSLY-JZ 12×0.5 |
58 |
8,9 |
128 |
|
YSLY-JZ 18×0.5 |
86 |
10,5 |
185 |
|
YSLY-JZ 25×0.5 |
120 |
12,6 |
256 |
|
YSLY-JZ 50×0.5 |
240 |
17,2 |
510 |
|
YSLY-JZ 61×0.5 |
293 |
18,5 |
595 |
|
YSLY-OZ 2×0.75 |
14,4 |
6,4 |
50 |
|
YSLY-JZ 3×0.75 |
21,6 |
6,7 |
60 |
|
YSLY-JZ 4×0.75 |
28,8 |
7,2 |
73 |
|
YSLY-JZ 5×0.75 |
36 |
08 |
88 |
|
YSLY-JZ 7×0.75 |
50 |
7,6 |
109 |
|
YSLY-JZ 10×0.75 |
72 |
10,6 |
153 |
|
YSLY-JZ 12×0.75 |
86 |
10,6 |
176 |
|
YSLY-JZ 18×0.75 |
129,6 |
12,2 |
268 |
|
YSLY-JZ 25×0.75 |
180 |
16 |
374 |
|
YSLY-JZ 50×0.75 |
360 |
21,7 |
688 |
|
YSLY-OZ 2×1 |
19,2 |
6,8 |
57 |
|
YSLY-JZ 3×1 |
28,8 |
7,2 |
73 |
|
YSLY-JZ 4×1 |
38,4 |
7,8 |
85 |
|
YSLY-JZ 5×1 |
48 |
8,6 |
105 |
|
YSLY-JZ 7×1 |
67 |
8,2 |
131 |
|
YSLY-JZ 10×1 |
96 |
11,4 |
183 |
|
YSLY-JZ 12×1 |
115 |
11,4 |
220 |
|
YSLY-JZ 14×1 |
134,4 |
12,1 |
261 |
|
YSLY-JZ 18×1 |
172,8 |
13,4 |
315 |
|
YSLY-JZ 25×1 |
240 |
15,4 |
449 |
|
YSLY-JZ 34×1 |
326 |
18,9 |
594 |
|
YSLY-JZ 50×1 |
480 |
22,5 |
808 |
|
YSLY-OZ 2×1.5 |
28,8 |
7,7 |
77 |
|
YSLY-JZ 3×1.5 |
43 |
8,1 |
95 |
|
YSLY-JZ 4×1.5 |
58 |
9,1 |
117 |
|
YSLY-JZ 5×1.5 |
72 |
10,2 |
144 |
|
YSLY-JZ 7×1.5 |
101 |
9,7 |
183 |
|
YSLY-JZ 10×1.5 |
144 |
12,4 |
265 |
|
YSLY-JZ 12×1.5 |
173 |
13,4 |
307 |
YSLY-OZ/-JZ/-OB/-JB PVC Control Cable is used as measuring and control cable in tool machines, conveyor belts, production lines and air-conditioning. The cores of this cable type are numbered in such way, so they can be easily recognised even when a small piece of the inner sheath has been removed. This type is suitable when the application requires flexibility. Suitable for medium mechanical stresses with free movement without tensile stresses. The green/yellow earthing core is placed in the outer layer,Control cable Cu/PVC/SH/PVC 300/500V.
