Medium voltage Reeling and festooning cable (N)TSCGEWÖU

Medium voltage Reeling and festooning cable (N)TSCGEWÖU

Category： Reeling Cable

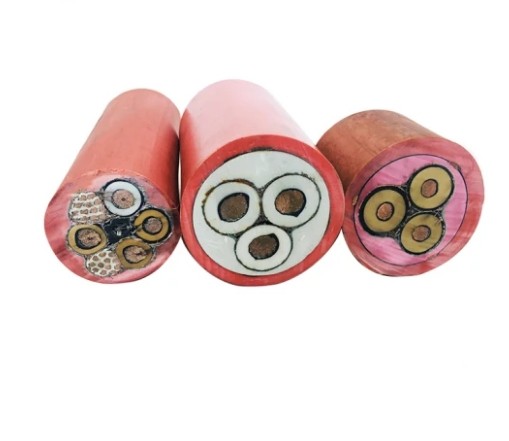

Medium voltage Reeling and festooning cable
INQUIRY EMAIL

Medium voltage Reeling and festooning cable 3,6/6 12/20 kV (N)TSCGEWÖU H.V. reeling cable For the connection of electrical equipment, large material handling machines such as excavators, cranes, dumpers in mining and tunnelling applications. The flexible cable design allows for movement of the equipment during operation.

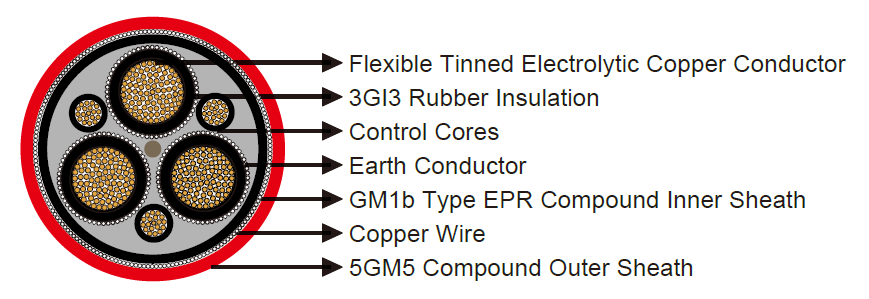

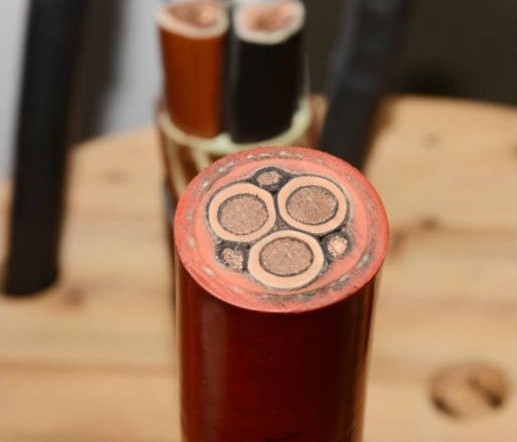

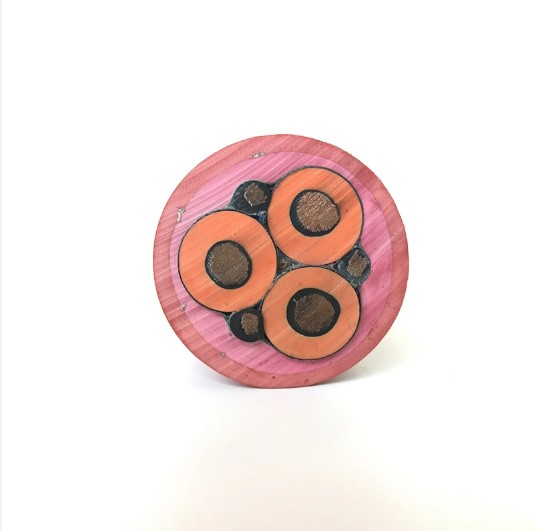

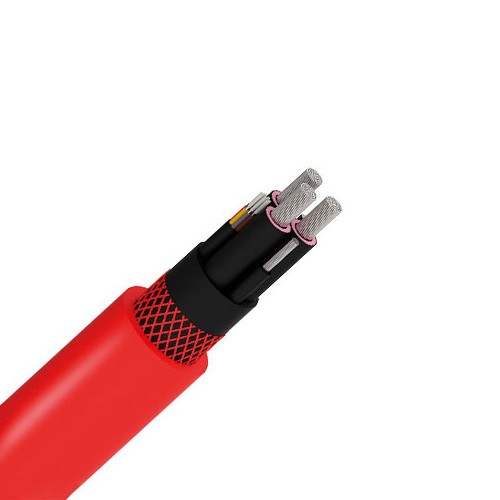

Medium voltage Reeling and festooning cable 3,6/6 12/20 kV (N)TSCGEWÖU H.V. reeling cable Structure

CONDUCTOR	Flexible Tinned Electrolytic copper conductor DIN VDE 0295 Class 5
INSULATION	3Gl3 type EPR compound
ELECTRICAL FIELD CONTROL	Inner and Outer semiconductive layer of semiconductive rubber
CONTROL CORE	Tinned Copper conductor with semiconductive layer
PROTECTIVE-EARTH CONDUCTOR	Tinned Copper/ Textile braiding combinated cores laying concentric around each power core.
CORE IDENTIFICATION	Main Cores: Natural coloring with black semiconductive rubber. Control cores: Black
LAY UP	Three main conductors laid-up with three control cores in the outer interstice
INNER SHEATH	GM1b Type EPR Compound
SCREEN	Overall concentric lay of copper wire spinning.
OUTER SHEATH	5GM5 Type elastomer compound. Red

Medium voltage Reeling and festooning cable 3,6/6 12/20 kV (N)TSCGEWÖU H.V. reeling cable common size

N.of core and nominal section	Main co D.C.resist at 20°c ohm/km	nductor nom.diam. mm	Protective arth cond nom.diam mm	Overall diameter min. mm	diameter Max mm	Net weight approx. kg/km		Maximum pemissible tensile force N
3,6/6 kV
3x25+3x25/3 0,795 6,6 4,0 38,5 41,5 2.460 1.500 131 105
3x35+3x25/3	0,565	8,0	40	41,2	44,2		2.970		2.100
3x50+3x25/3	0,393	9,3	40	44,0	47,0		3.500		3.000
3x70+3x35/3	0,277	11,2	49	48,1	51,1		4.460		4.200
3x95+3x50/3	0,210	13,0	54	52,7	56,7		5.560		5.700
3x120+3x70/3	0,164	15,0	66	57,0	61,0		6.930		7.200
3x150+3x70/3	0,132	16,9	69	62,7	66,7		8.190		9.000
3x185+3x95/3	0,108	18,3	80	66,8	70,8		9.750		11.100
3x240+3x120/3 6/10 kV	0,0817	20,5	93	73,9	77,9		12.450		14.400
3x25+3x25/3	0,795	6,6	40	39,4	42,4		2.530		1.500
3x35+3x25/3	0,565	8,0	40	42,0	45,0		3.050		2.100
3x50+3x25/3	0,393	9,3	40	44,8	47,8		3.590		3.000
3x70+3x35/3	0,277	11,2	49	48,4	52,4		4.550		4.200
3x95+3x50/3	0,210	13,0	54	53,5	57,5		5.670		5.700
3x120+3x70/3	0,164	15,0	66	57,8	61,8		7.040		7.200
3x150+3x70/3	0,132	16,9	66	63,5	67,5		8.310		9.000
3x185+3x95/3	0,108	18,3	80	67,4	71,4		9.820		11.100
3x240+3x120/3 8,7/15 kV	0,0817	20,5	93	74,8	78,8		12.600		14.400
3x25+3x25/3	0,795	6,6	40	42,8	45,8		2.840		1.500
3x35+3x25/3	0,565	8,0	40	45,5	48,5		3.380		2.100
3x50+3x25/3	0,393	9,3	40	48,3	51,3		3.940		3.000
3x70+3x35/3	0,277	11,2	49	53,1	57,1		5.080		4.200
3x95+3x50/3	0,210	13,0	54	57,0	61,0		6.100		5.700
3x120+3x70/3	0,164	15,0	66	62,9	66,9		7.730		7.200
3x150+3x70/3	0,132	16,9	66	67,0	71,0		8.800		9.000
3x185+3x95/3	0,108	18,3	80	70,0	74,0		10.230		11.100
3x240+3x120/3 12/20 kV	0,0817	20,5	93	77,4	81,4		13.020		14.400
3x25+3x25/3	0,795	6,6	40	48,0	51,0		3.360		1.500
3x35+3x25/3	0,565	8,0	40	51,4	55,4		4.070		2.100
3x50+3x25/3	0,393	9,3	40	54,2	58,2		4.660		3.000
3x70+3x35/3	0,277	11,2	49	58,3	62,3		5.730		4.200
3x95+3x50/3	0,210	13,0	54	63,7	67,7		7.020		5.700
3x120+3x70/3	0,164	15,0	66	68,0	72,0		8.470		7.200
3x150+3x70/3	0,132	16,9	66	73,9	77,9		9.890		9.000
3x185+3x95/3	0,108	18,3	80	77,0	81,0		11.370		11.100
3x240+3x120/3	0,0817	20,5	93	82,6	86,6		13.890		14.400

Medium voltage Reeling and festooning cable 3,6/6 12/20 kV (N)TSCGEWÖU H.V. reeling cable designed for permanent immersion in fresh or salt water where mechanical stress is likely. Suitable for immersion at depths to 300 meters.For pumps, dredgers, floating docks and for trailing operations with opencast mining equipment. The cable is unarmoured and therefore is not suitable for under-water power transmission or installation in a waterway or where mechanical damage is possible.
