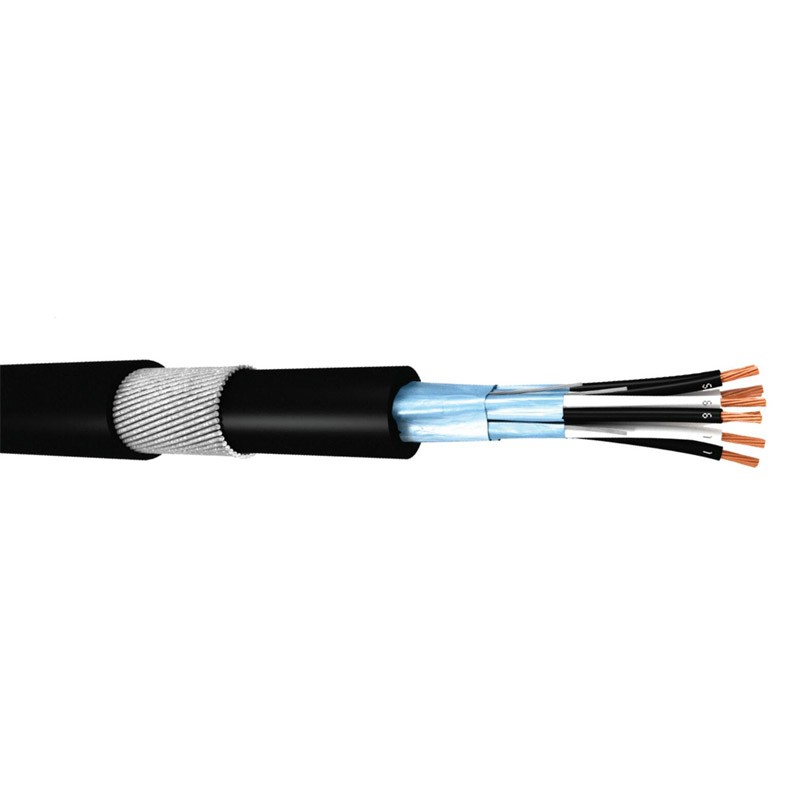

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Instrument Cable

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Instrument Cable

Category： Instrument Cable
Instrument Cable
INQUIRY EMAIL

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Pairs/Triads 300/500 V Instrument Cable belong to the category of electrical equipment cables. This cable is suitable for electronic computers and automation instruments with a rated voltage of 500V and below, which have high anti-interference requirements. The reference production standard is BS EN 50288-7. Computer cables belong to electrical equipment cables, and the structure and composition materials of electrical equipment cables are the most complex. According to the special requirements of usage temperature and working environment, there are various types of composition materials for computer cables. This model is a common usage specification.

Technical characteristics of CU/PVC/ISCR/OSCR/PVC/SWA/PVC Pairs/Triads 300/500 V Instrument Cable:

1: Sub shielding+total shielding (including both structures mentioned above). Partial shielding (only for twisted pairs, each pair has shielding), common shielding is aluminum plastic composite tape+drain wire, total shielding (the cable only has a layer of total shielding after the cable core is assembled), and common shielding is aluminum plastic composite tape+drain wire.

2. Galvanized steel wire wrapped armor. Improved cable service life.

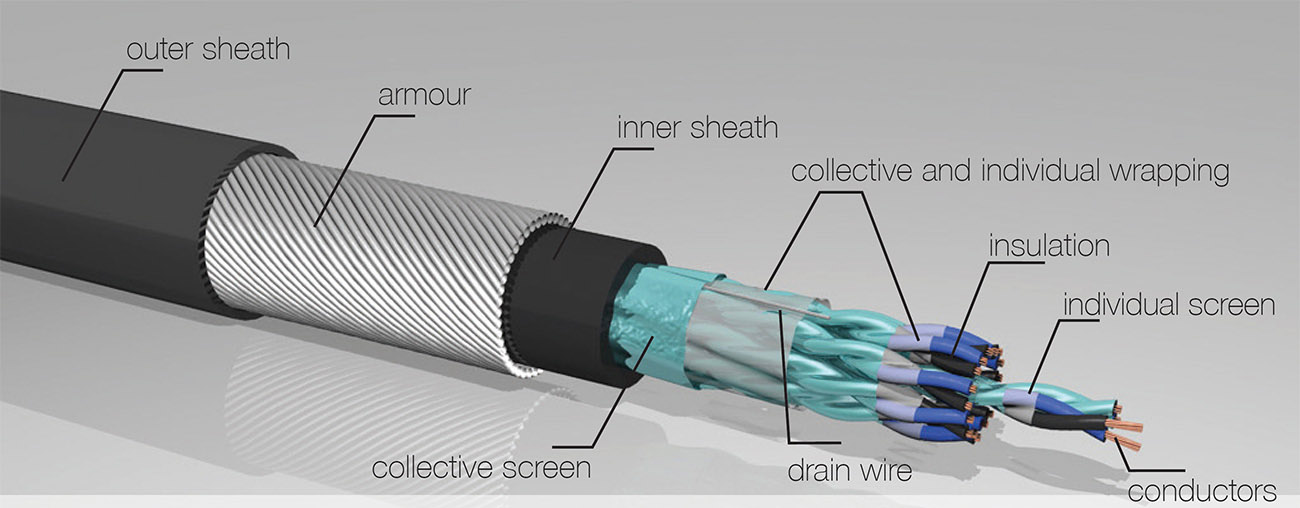

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Pairs/Triads 300/500 V Instrument Cable structure:

1. Conductor: Generally made of hard core oxygen free copper wire, Class II stranded copper wire, and Class V soft copper wire

2. Insulation: PVC, PE, F46, XLPE

3. Sub shielding: Aluminum plastic composite tape+tin plated drainage wire, tin plated copper wire weaving, copper wire weaving, copper tape shielding

4. Overall shielding: aluminum plastic composite tape+tin plated drainage wire, tin plated copper wire weaving, copper wire weaving, copper tape shielding

5. Inner sheath: PVC, LSZH

6. Armor layer: galvanized steel wire winding or galvanized steel wire weaving

7. Outer sheath: PVC, LSZH, F46, silicone rubber

8. The types of conductors and their resistance are as follows:

Nominal cross-section of conductor	Number of conductors/single wire diameter mm	Number of conductors/single wire diameter mm	Number of conductors/single wire diameter mm	Conductor DC resistance Ω/km at 20 ℃	Conductor DC resistance Ω/km at 20 ℃
mm²	A	B	R	A、B	R
0.5	1/0.80	7/0.30	16/0.20	≤ 36.0	≤ 39.0
0.75	1/0.97	7/0.37	24/0.20	≤ 24.5	≤ 26.0
1.0	1/1.13	7/0.43	32/0.20	≤18.1	≤19.5
1.5	1/1.38	7/0.52	30/0.25	≤12.1	≤13.3
2.5	1/1.78	7/0.68	49/0.25	≤ 7. forty-one	≤ 7. 9 8

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Pairs/Triads 300/500 V Instrument CableUsage characteristics:

Working temperature: generally not exceeding 70 ℃.

Minimum ambient temperature: Fixed laying -40 ℃. Non fixed laying -15 ℃.

The general flame retardant performance complies with BS EN50288-7 regulations;

Rated voltage: U0/U: 300/500V

Minimum bending radius: cables without armor layer should not be less than 10 times the outer diameter of the cable; Armored cables should not be less than 12 times the outer diameter of the cable

Instrument CableModel Description:

Serial number	project	Code	explain
one	Flame retardant code	ZR	General flame retardant
		ZR/SA	Bundle flame retardant
		DZR	Low smoke and low halogen flame retardant
two	Series code	DJ	For electronic computers and electric instruments
three	Insulation material	Y	Polyethylene PE
three	Insulation material	V	Polyvinyl chloride PVC
four	Shielding materials	P	Steel wire weaving
		P 2	Copper strip
		P 3	Aluminum foil/plastic film composite film
		A	Plastic coated aluminum tape bonding shielding
five	Jacket material	Y	Polyethylene PE
five	Jacket material	V	Polyvinyl chloride PVC
six	Armor material	twenty-two	Steel strip armor
		thirty-two	Steel wire armor
		fifty-three	Steel strip longitudinal ladle
seven	Specifications	-	Fill in logarithm (number of cores per unit, conductor cross-section)
			Logarithmic N: 1, 2, 3,... 61
			Number of unit cores N: 2, 3:
			Conductor cross-section S: 0.75, 1.0, 1.5 (mm 2)

CU/PVC/ISCR/OSCR/PVC/SWA/PVC Pairs/Triads 300/500 V Instrument Cableuse PVC insulated twisted copper wire braided with sub shielding and total shielding PVC sheathed computer shielding cables, which are generally used for laying indoor, cable trenches, pipelines, directly buried areas, and other situations that require electrostatic shielding. If you have specific requirements, please contact us for selection,another commonly used cable models CU/PVC/ISCR/OSCR/PVC/Pairs Triads 1.5MM2 300500 V Instrument Cable.
