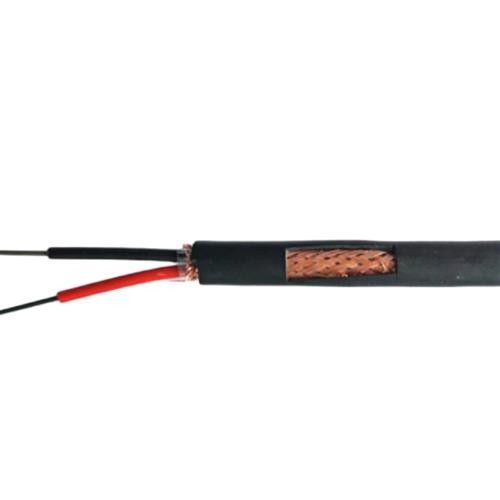

KX-GS-VVP-2*1.5 k type thermocouple wire pvc insulation and sheath,copper wire braid is one of the most common types of K-type compensation wire. It is widely used in non-high temperature environment. The product process is PVC insulated pair twisted copper wire braided overall shield PVC sheath Generally use compensation cables for precision K-index thermocouples,another high temperature,Glass fiber braided high temperature resistant compensation wire.
KX-GS-VVP-2*1.5 k type thermocouple wire model description
KX-NiCr-NiSi Thermocouple Extension Conductor
GS—means general compensation wire;
H—represents compensation wire for heat resistance;
R-indicates that the core is a multi-strand compensation wire. Compensation wires whose core is single-strand are not marked with letters;
P—represents the compensation wire with shielding layer;
V-indicates that the insulating layer or sheath is made of polyvinyl chloride material (PVC);
F-indicates that the insulating layer is made of polytetrafluoroethylene;
B—Indicates that the sheath is made of alkali-free glass filament.

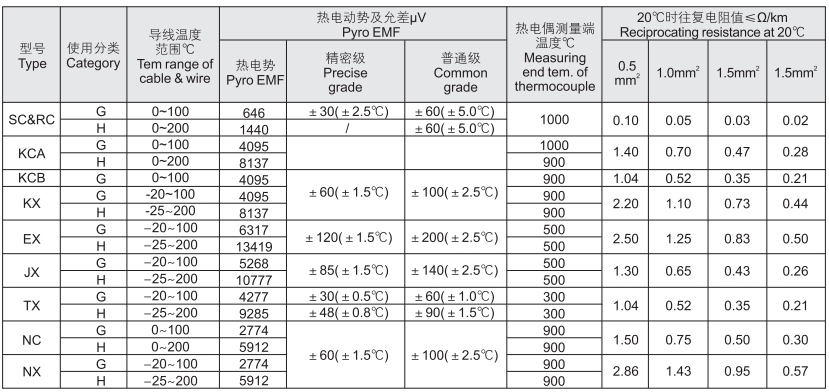

KX-GS-VVP-2*1.5 k type thermocouple wire Thermoelectric characteristics

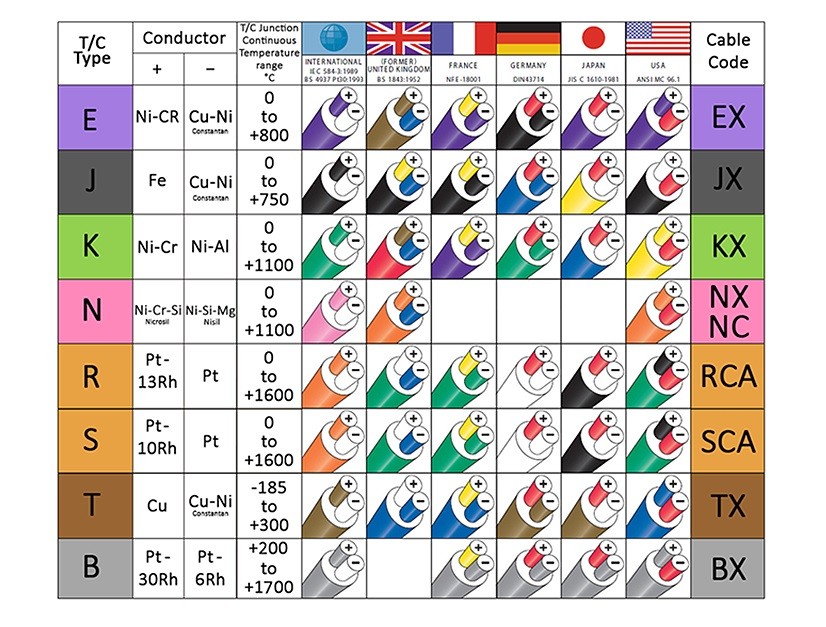

Common thermocouple compensation wire type
|
model |
name |
|
KX-GS-VV |
PVC insulated twisted pair PVC sheathed compensation cables for precision k-division thermocouples are generally used |
|
KX-GS-VPV |
PVC insulated twisted pair copper wire braided sub shielded PVC sheath is generally used as compensation cable for precision k-division thermocouple |
|
KX-GS-VPVP |
PVC insulated twisted pair copper wire braided sub shield and total shield PVC sheath are generally used as compensation cables for precision k-division thermocouples |
|
KX-GS-VVP |
PVC insulated twisted pair copper wire braided general Shielding PVC sheath is generally used as compensation cable for precision k-division thermocouple |
|
KX-HS-FF |
High temperature compensation cable for fluoroplastic insulated twisted pair fluoroplastic sheathed Precision Grade K thermocouple |
|
KX-HS-FP1F |
High temperature compensation cable for fluoroplastic insulated twisted pair tinned copper wire braided sub shielded fluoroplastic sheathed Precision Grade K graduation thermocouple |
|
KX-HS-FP1FP1 |
Fluoroplastic insulated twisted pair tinned copper wire braided sub shielded and total shielded fluoroplastic sheathed high temperature compensation cable for precision k-division thermocouple |
|
KX-HS-FFP1 |
Fluoroplastic insulated twisted pair tinned copper wire braided general shielding fluoroplastic sheathed precision k-division thermocouple high temperature compensation cable |
|
KX-HS-FV105 |
High temperature compensation cable for fluoroplastic insulated twisted pair heat-resistant 105 ℃ PVC sheathed precision k-division thermocouple |
|
KX-HS-FP1V105 |
Fluoroplastic insulated twisted pair tinned copper wire braided sub shielded heat-resistant 105 ℃ PVC sheathed precision k-division thermocouple high temperature compensation cable |
|
KX-HS-FP1V105P1 |
Fluoroplastic insulated twisted pair tinned copper wire braided split screen total shielding heat-resistant 105 ℃ PVC sheathed precision k-division thermocouple high temperature compensation cable |
|
KX-HS-FV105P1 |
Fluoroplastic insulated twisted pair tinned copper wire braided total shielding heat-resistant 105 ℃ PVC sheathed precision k-division thermocouple high temperature compensation cable |

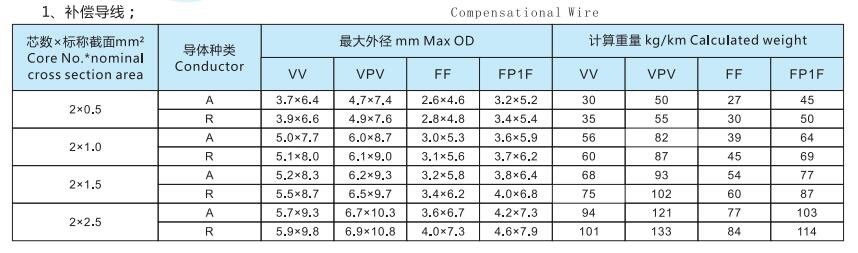

KX-GS-VVP-2*1.5 k type thermocouple wire size parameters
For a more detailed introduction to thermocouples, welcome to check our introduction of thermocouple wire. If you need thermocouple compensation wire selection or customization, you can contact us.
