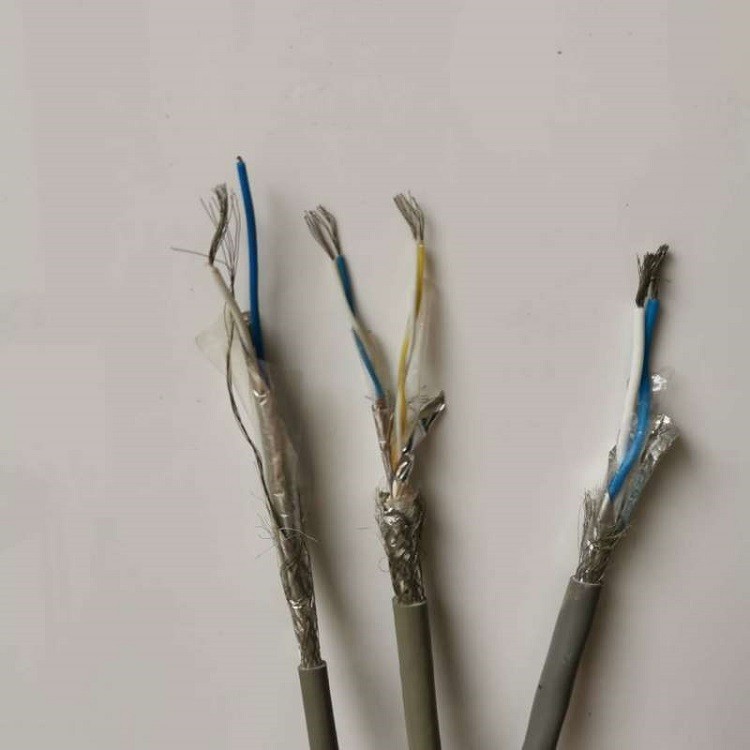

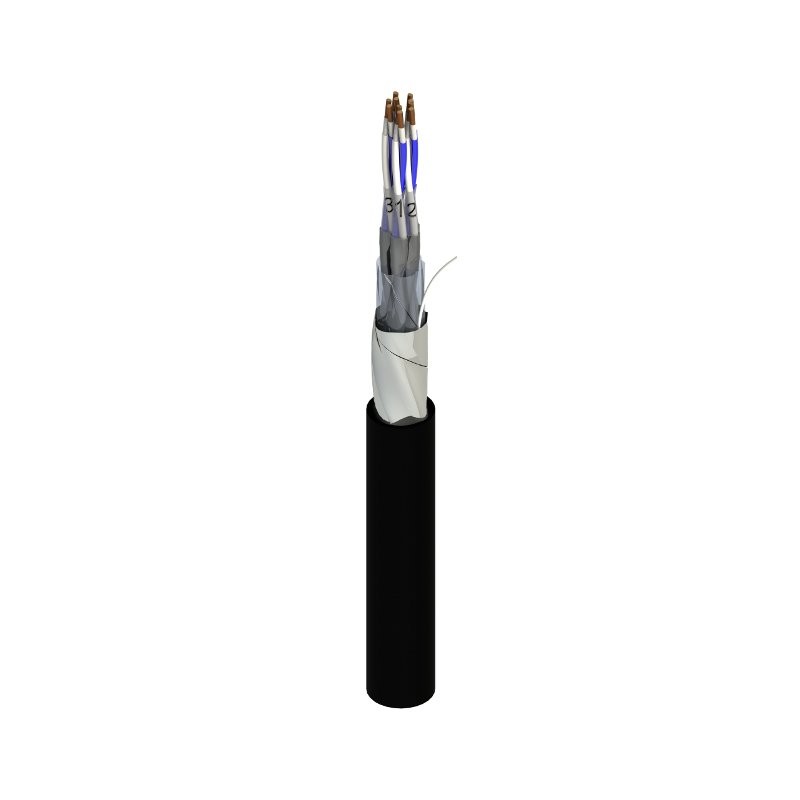

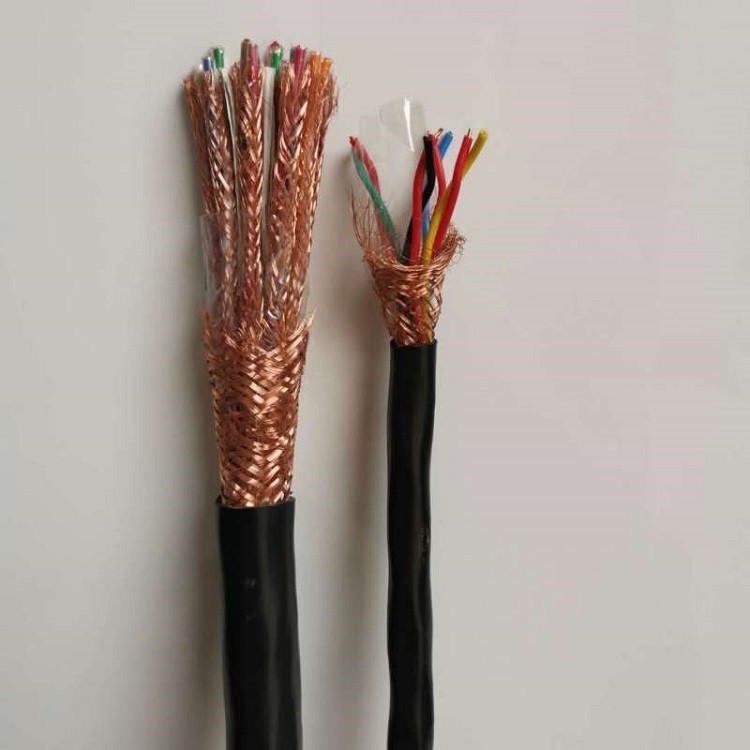

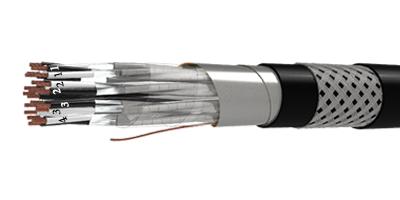

Instrument cable belong to the category of electrical equipment cables. This cable is suitable for electronic instruments and automation instruments with a rated voltage of 500V and below, which have high anti-interference requirements. CU/PVC/ISCR/OSCR/PVC/Pairs Triads 1.5MM2 300/500 V Instrument Cableadopting a sub shielding+total shielding structure, the anti signal interference effect is good. It is a commonly used instrument cable model.
CU/PVC/ISCR/OSCR/PVC/Pairs Triads 1.5MM2 300500V Instrument Cable parameters:
1. Voltage level: 300/500V
2. Conductor material: soft copper conductor/hard copper wire
3. Insulation material: polyethylene insulation
4. Twistedshielding material:aluminum plastic composite tape+drainage wire/copper wire shielding
5. Total shielding material:aluminum plastic composite tape+drainage wire/copper wire shielding
6. Armor material: None
7. Sheath material: PVC sheath
8. Conductor type and resistance: as follows
|
Nominal cross-section of conductor |
Number of conductors/single wire diameter mm |
Number of conductors/single wire diameter mm |
Number of conductors/single wire diameter mm |
Conductor DC resistance Ω/km at 20 ℃ |
Conductor DC resistance Ω/km at 20 ℃ |
|
mm2 |
A |
B |
R |
A、B |
R |
|
0.5 |
1/0.80 |
7/0.30 |
16/0.20 |
≤ 36.0 |
≤ 39.0 |
|
0.75 |
1/0.97 |
7/0.37 |
24/0.20 |
≤ 24.5 |
≤ 26.0 |
|
1 |
1/1.13 |
7/0.43 |
32/0.20 |
≤18.1 |
≤19.5 |
|
1.5 |
1/1.38 |
7/0.52 |
30/0.25 |
≤12.1 |
≤13.3 |
|
2.5 |
1/1.78 |
7/0.68 |
49/0.25 |
≤ 7. forty-one |
≤ 7. 9 8 |
CU/PVC/ISCR/OSCR/PVC/Pairs Triads 1.5MM2 300/500 V Instrument Cable Usage characteristics:
Working temperature: generally not exceeding 70 ℃.
Minimum ambient temperature: Fixed laying -40 ℃. Non fixed laying -15 ℃.
The general flame retardant performance complies with BS EN50288-7 regulations;
Rated voltage: U0/U: 300/500V
Minimum bending radius: cables without armor layer should not be less than 10 times the outer diameter of the cable; Armored cables should not be less than 12 times the outer diameter of the cable
Instrument cable Model Description:
Serial number
project
Code
explain
1
Flame retardant code
ZR
General flame retardant
ZR/SA
Bundle flame retardant
DZR
Low smoke and low halogen flame retardant
2
Series code
DJ
For electronic instruments and electric instruments
3
Insulation material
Y
Polyethylene PE
V
Polyvinyl chloride PVC
4
Shielding materials
P
Steel wire weaving
P2
Copper strip
P3
Aluminum foil/plastic film composite film
A
Plastic coated aluminum tape bonding shielding
5
Jacket material
Y
Polyethylene PE
V
Polyvinyl chloride PVC
6
Armor material
twenty-two
Steel strip armor
thirty-two
Steel wire armor
fifty-three
Steel strip longitudinal ladle
7
Specifications
-
Fill in logarithm (number of cores per unit, conductor cross-section)
Logarithmic N: 1, 2, 3,... 61
Number of unit cores N: 2, 3:
Conductor cross-section S: 0.75, 1.0, 1.5 (mm 2)
CU/PVC/ISCR/OSCR/PVC/Pairs Triads 1.5MM2 300/500 V Instrument Cable are suitable for signal transmission of power generation, metallurgy, petrochemical and other industrial and mining enterprises' distribution systems, electronic computer systems, automation systems, and multi-pair shielded cables for connection of testing instruments and meters. Welcome to contact us for custom processing and quotation.
