Foam PE Tinned Copper Wire Shield CAN BUS Cable

Foam PE Tinned Copper Wire Shield CAN BUS Cable is a specialized cable designed for Controller Area Network (CAN) applications, providing reliable and efficient communication in various automation and control systems. This article will explore the structure, characteristics, and applications of this cable and compare it with Profibus L2 cables to highlight the differences and specific uses of each type of cable.

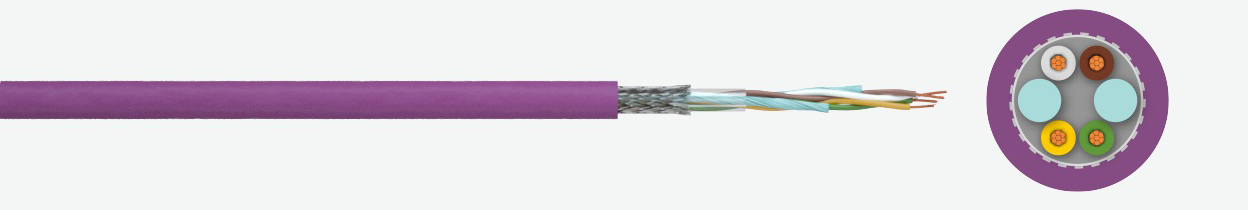

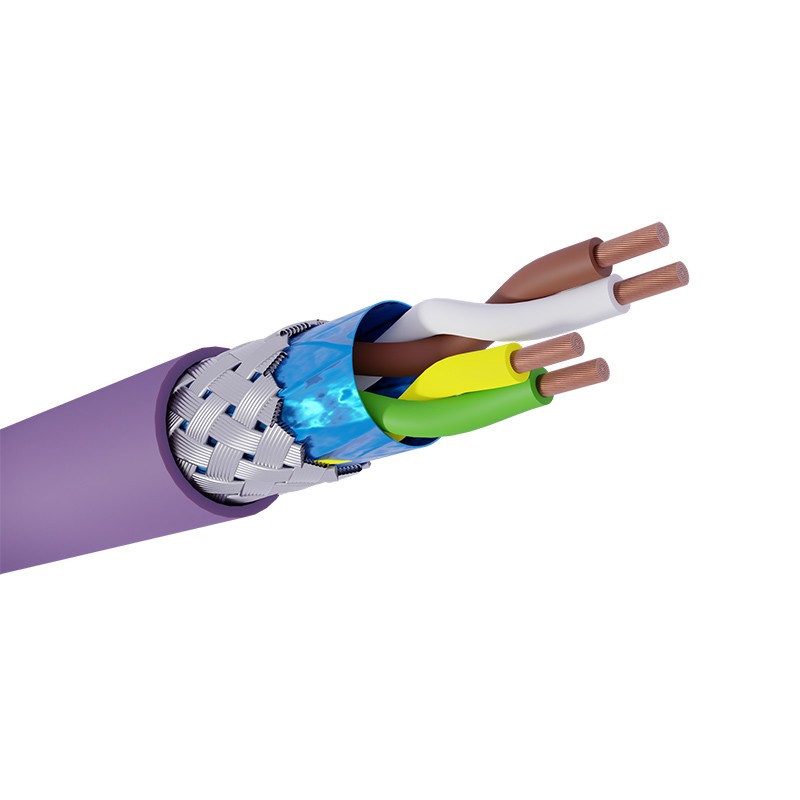

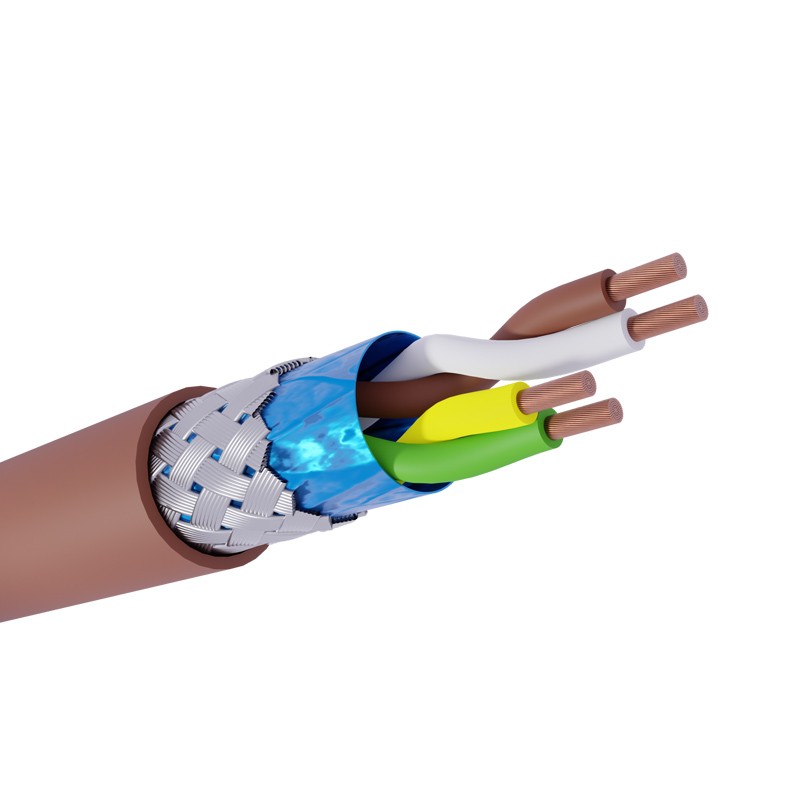

Structure of Foam PE Tinned Copper Wire Shield CAN BUS Cable

Conductor: This cable typically features tinned copper conductors, which are known for their excellent conductivity and resistance to oxidation. Tinning the copper enhances its durability and suitability for data transmission over long distances.

Insulation: The insulation is made from Foam Polyethylene (PE), which offers a lightweight and durable barrier against environmental factors. Foam PE is particularly effective due to its low dielectric constant, which improves signal transmission by reducing signal loss.

Shielding: A crucial feature of the Foam PE Tinned Copper Wire Shield CAN BUS Cable is its tinned copper wire shield. This shielding protects against electromagnetic interference (EMI), ensuring that the data transmitted over the cable is secure from external noise and disruptions.

Outer Jacket: The outer jacket is typically made from PVC or a similar durable material, providing resistance against abrasion, chemicals, and various weather conditions, making it suitable for both indoor and outdoor installations.

Features of Foam PE Tinned Copper Wire Shield CAN BUS Cable

• EMI Protection: The tinned copper shielding offers excellent protection against EMI, which is crucial for maintaining the integrity of the data transmitted in environments with high electronic noise.
• Low Attenuation: The Foam PE insulation ensures low attenuation rates, meaning that the cable can transmit signals over longer distances without loss of quality.
• Durability: With its robust construction, including tinned copper conductors and a durable outer jacket, this cable is built to withstand harsh environments and mechanical stress.
• Flexibility: Despite its sturdy design, the cable remains relatively flexible, making it easy to install in tight spaces and around corners.

Applications of Foam PE Tinned Copper Wire Shield CAN BUS Cable

Foam PE Tinned Copper Wire Shield CAN BUS Cables are used in a variety of settings:

• Automotive Networks: For connecting sensors and actuators within vehicles, facilitating communication between different parts of the vehicle.
• Industrial Automation: In manufacturing facilities to link various components of automated machinery, ensuring synchronized operations.
• Building Automation: For managing systems such as lighting, heating, and security in smart buildings.

Comparison with Profibus L2 Cable

While both Foam PE Tinned Copper Wire Shield CAN BUS Cable and Profibus L2 cables are used in industrial and automation environments, their specific applications and construction differ:

• Protocol Support: Profibus L2 cables are designed specifically for use in Profibus networks, which is a fieldbus network standard for industrial control systems. In contrast, Foam PE Tinned Copper Wire Shield CAN BUS Cables are optimized for CAN networks, widely used in automotive and real-time applications.
• Construction and Materials: Profibus L2 cables may use different types of insulation and shielding designed to meet the requirements of Profibus standards. Foam PE insulation in CAN BUS cables is particularly chosen for its low dielectric properties, which are beneficial for the CAN protocol.
• Application Environments: Profibus L2 cables are often more rigid and tailored for static industrial environments where high-speed, deterministic communication is required. CAN BUS cables, with their robust shielding and flexible design, are more adaptable to dynamic environments such as vehicles or movable equipment.
