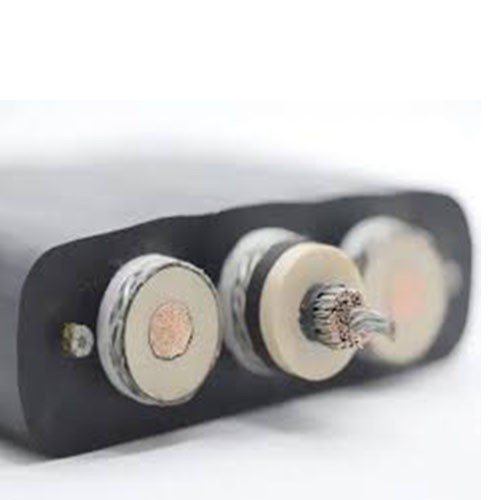

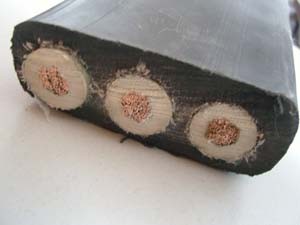

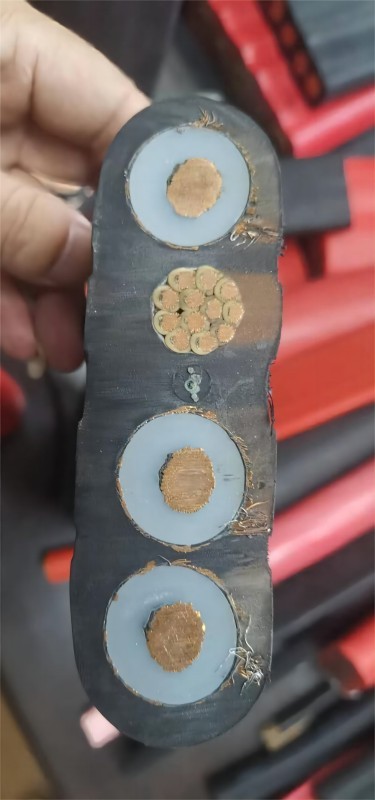

(N)TMFLCGEWÖU high voltage reeling cable flat ribbon cable

Conductor:

Tinned copper conductor,flexible cl.5 IEC 60228

Specially designed for mobile applicatio

insulation:

Micro filtered HEPR rubber compound better than 3Gl3

New specially developed compound with improved electrical and mechanical characteristics

Cores identification

Main cores:natural colour with black semiconductive layer

Farth core of the same size of main conductor identified by yellow/green colour of insulatio splitted on the main cores

Field control

Conductor screen:semiconductive layer

Insulation screen:semiconductive layer of special compound Applied with insulation

dentification:

Printed numbers on semiconductor layer

Metallic screen

Tinned copper wire braid on phase cores

Cores arrangement

Parallel

Fiber optic module (if any)in the centre

Separation (if any):

Tape(s)

Outer sheath:

Red polychloroprene based compoun UV resistant,oil and chemical resistant better than 5GM3 compound

N.of cores
and nominal
section
(n-mm2)

D.C.resist.
at20℃

ohm/km

nom. comductor diam


mm

Earth conductor
ingle cond
nom.diam.

mm

splitted in 3 braids
nom.diam.
over braid
mm

Overall dimension
nom.
mm

Overall dimension
MaX
mm

Cable
weight
approx
kg/km

Pemissible
tensile force
maximum
N

6/10kV

3X35+3025/3E

0.565

8.0

N.A

175

26x65

28x67

3.100

1.575

3:50+ 3025/3E

0.393

9,3

N.A

190

28x69

30x71

3650

2.250

4x35

0.565

8,0

80

NA

26,5x80,5

28,5×83

3.870

2.100

3x35+3×25/3E+0F

0.565

80

N.A

175

26x76

28x78

3.490

1.575

3x50+3×25/3E+0F

0.393

93

N.A

190

28x80

30x82

4.050

2.250

4x35+0F

0.565

80

80

NA

26x90

28x93

4.200

2.100

4x50+0F

0.393

93

93

NA

27x94

29,965

4.800

3.000

8,7/15kV

3x35+3×25/3E+0F

0.565

8.0

N.A

190

26x79

28×81

3560

1.575

4x35+0F

0.565

8,0

80

NA

27×94

29,965
