Low voltage reeling cable PUR sheath FLEX PUR- HF-J/-O D12Y11YU11Y

Low voltage reeling cable PUR sheath FLEX PUR- HF-J/-O D12Y11YU11Y are designed to meet the demands of applications requiring high resistance to wear and frequent bending. These cables are prized for their durability and performance in challenging environments. This article will delve into the structure, characteristics, applications of flexible polyurethane cables, and provide a comparison with other common types of cables.

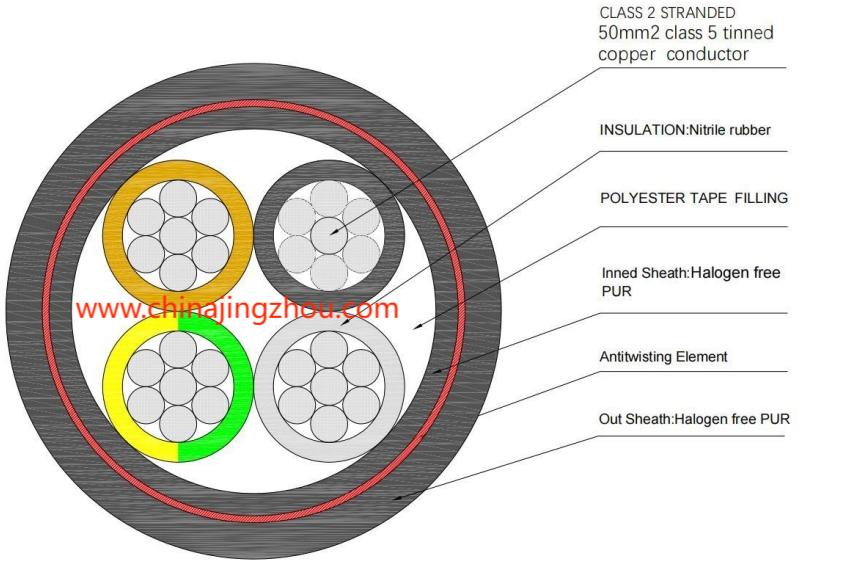

Structure of Flexible Polyurethane Cable

Conductor: Flexible polyurethane cables typically feature finely stranded bare copper conductors. The fine stranding enhances the flexibility of the cable, which is essential for applications involving movement or bending.

Insulation: The insulation is made from polyurethane, a material chosen for its excellent mechanical properties. Polyurethane provides superior resistance to abrasion, impact, and cuts, which protects the conductor from mechanical damages.

Sheathing: The outer sheath of these cables is also made of polyurethane. This dual layer of polyurethane not only increases the cable's resistance to environmental factors like oils, chemicals, and UV radiation but also contributes to its overall toughness and longevity.

Features of Flexible Polyurethane Cable

• High Durability: Polyurethane cables are highly resistant to wear and tear, making them suitable for harsh environments where cables might be subject to frequent physical abuse.
• Excellent Flexibility: Despite their ruggedness, these cables remain flexible, which is crucial for dynamic applications where cables need to bend and twist without breaking.
• Chemical and Oil Resistance: Polyurethane is inherently resistant to oils, solvents, and various chemicals, ensuring that the cables can be used in industrial settings without degradation.
• Weather Resistance: The material is also weather-resistant, making it suitable for both indoor and outdoor applications, as it can withstand extreme temperatures and exposure to sunlight.

Applications of Flexible Polyurethane Cable

Flexible polyurethane cables are versatile and find applications across various industries:

• Automation and Robotics: Used in the wiring of robots and automated machinery where cables are subjected to continuous movement and bending.
• Material Handling Equipment: Ideal for connection to mobile equipment in warehouses, such as forklifts and mobile cranes, where cables need to endure bending and dragging.
• Stage and Audio Visual: Commonly used in the entertainment industry for stage setups and outdoor events, where cables must resist foot traffic and environmental elements.
• Renewable Energy Installations: Suitable for wind and solar installations where resistance to UV and weathering is critical.

Comparison with Other Cable Types

When compared to other common types of cables such as PVC (Polyvinyl Chloride) or rubber-insulated cables, flexible polyurethane cables offer several advantages:

• Enhanced Durability: PUR cables are more resistant to abrasion and cuts than PVC and rubber, which tend to be softer and less durable under mechanical stress.
• Superior Flexibility: Unlike PVC, which can become stiff in cold temperatures, polyurethane maintains its flexibility across a broad range of temperatures.
• Better Chemical Resistance: Rubber and PVC may degrade when exposed to certain chemicals, whereas PUR cables are designed to withstand harsh chemical environments without significant wear.

Low voltage reeling cable PUR sheath FLEX PUR- HF-J/-O D12Y11YU11Y are an excellent choice for demanding applications where cables are exposed to severe wear and frequent bending. Their superior durability, flexibility, and resistance to chemicals and environmental conditions make them a preferred option over PVC or rubber cables in many industrial and commercial settings. Understanding the unique properties and benefits of these cables allows professionals to make informed decisions, ensuring optimal performance and safety in their operations. Whether used in automation, material handling, entertainment, or renewable energy, flexible polyurethane cables deliver reliability and longevity where it matters most,another reeling cable,Medium voltage Reeling and festooning cable (N)TSCGEWÖU.
