In today's industrial landscape, where the efficiency and reliability of electrical systems are paramount, the choice of the right cable can make a substantial difference. Among the myriad of cable types, TRVVP YSLYCY-JZ OZ braid screen Flex control cable stand out due to their distinctive construction, features, and wide range of applications. This article delves into the YSLYCY cable, providing a comprehensive guide to its structure, characteristics, applications, and specifications, making it an essential resource for professionals seeking high-quality cable solutions.

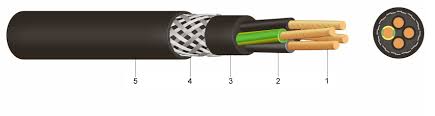

TRVVP YSLYCY-JZ OZ braid screen Flex control cable Structure
1,conductor material: bare copper ,conductor construction: fine stranded, class 5
2,insulation: PVC YI2
3,inner sheath: PVC
4,screen: Cu-braiding ,screen coverage: 80 %
5,sheathing material: PVC TM2
colour of outer sheath: gray RAL 7001
flame retardant: VDE 0482-332-1-2/IEC 60332-1
maximum temperature at conductor:70 °C
max. operating temperature,fixed:-40 - +70 °C
temperature, moved/during installation:-5 - +70 °C
bending radius, fixed installation:6 x DA
bending radius, moved application:20 x DA
TRVVP YSLYCY-JZ OZ braid screen Flex control cable Features
YSLYCY cables are recognized for their:
EMI Protection: The screening layer provides effective protection against electromagnetic interference, crucial for environments with high electronic noise.
Durability: With their robust construction, these cables are designed to withstand harsh industrial conditions, including exposure to chemicals and mechanical wear.
Flexibility: The fine-stranded copper conductors ensure that the cables can be easily manipulated and installed in tight spaces, offering great installation flexibility.
Safety: The insulation and sheathing materials used in YSLYCY cables are flame-retardant, contributing to the overall safety of the electrical systems.
TRVVP YSLYCY-JZ OZ braid screen Flex control cable Applications
YSLYCY cables are versatile and find applications in various sectors, including:
Control and Measurement Systems: Ideal for connections where interference protection is essential.
Industrial Automation: Used in the wiring of machinery and equipment where EMI could affect performance.
Data and Communication Networks: Ensures reliable data transmission in IT and telecommunications.
Building Management Systems: Suitable for systems controlling lighting, heating, and security in commercial and residential buildings.

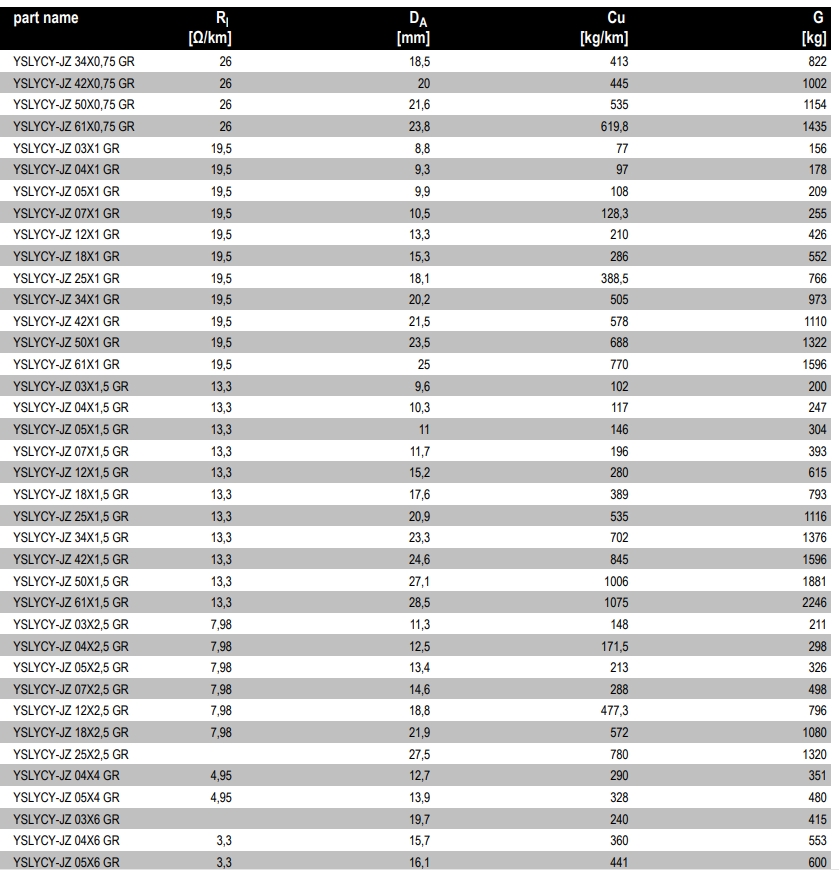

TRVVP YSLYCY-JZ OZ braid screen Flex control cable Specifications
YSLYCY cables come in a wide range of specifications to meet diverse application needs, with conductor sizes typically ranging from 0.5 mm² to 2.5 mm² and configurations from multi-core to multi-pair versions. The choice of screening (tinned copper wire braid or aluminum foil) can be selected based on the specific requirements for EMI protection.
YSLYCY cables represent a reliable and efficient solution for a wide array of industrial and commercial applications. Their construction is aimed at ensuring maximum protection against EMI, making them an ideal choice for environments where electrical noise is a concern. With their combination of durability, flexibility, and safety features, YSLYCY cables are designed to meet the rigorous demands of today's electrical systems.
Professionals seeking to optimize the performance and reliability of their electrical installations will find YSLYCY cables to be an invaluable asset. Understanding the specific characteristics and applications of these cables can help in selecting the most appropriate type for any given project, ensuring that electrical systems operate efficiently and safely in any environment，another similar cable,TRVV YSLY-JZ-600 flex control cable.
