Nickel insulated heat resistant wire

Fiberglass braid high temperature insulated heat resistant wire is made of high-quality pure nickel wire or nickel-plated copper wire, the inner layer is wrapped with high-temperature mica tape, then high-temperature-resistant glass fiber braided insulation, the middle layer is wrapped with high-quality high-temperature mica tape, and the outer layer is fiberglass braided sheath insulated, with four layers of fire resistance and high temperature resistance Insulation protection, safety guarantee, can be used in bends, will not burn when applied with external flames, and has no toxic gases. It is suitable for installation and connection of electrical circuits with AC rated voltage below 600V in high temperature environments,Compared to silicone rubber cable, this cable is resistant to higher temperatures, even close to 800-1000°c.

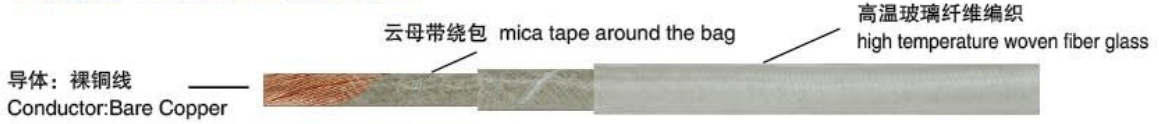

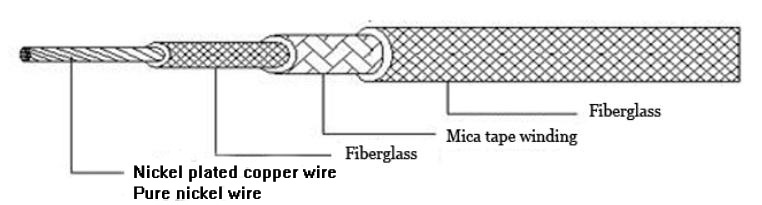

Fiberglass braid high temperature insulated heat resistant wire structure

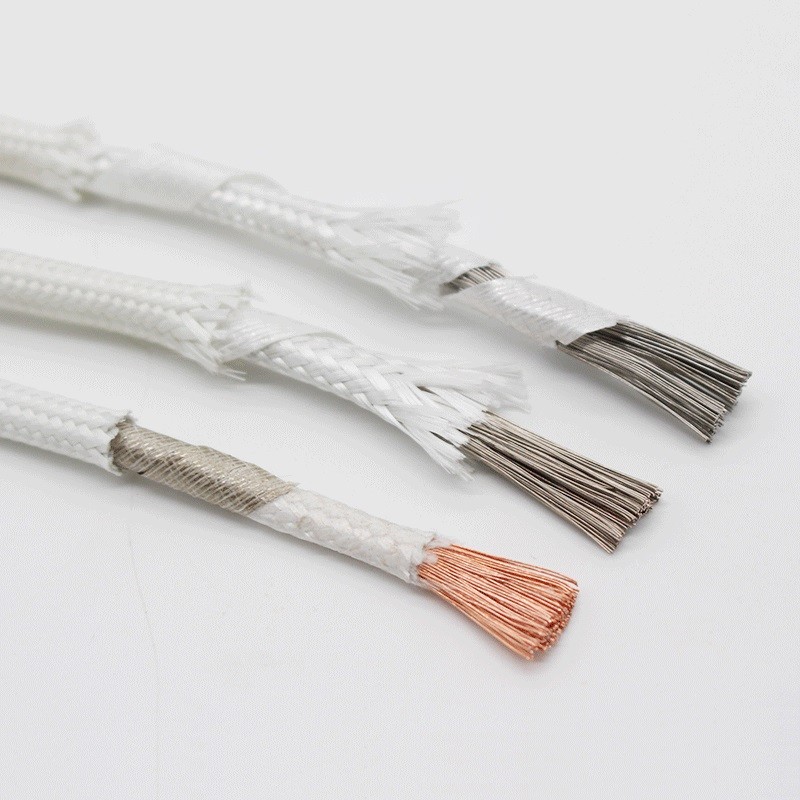

Conductor: bare copper wire, nickel-plated copper wire, pure nickel wire three conductors
GN500 bare copper wire conductor-fire-resistant cable---500 degrees
GN600 nickel-plated copper wire-fire-resistant cable---600 degrees
GN800 pure nickel wire-fire-resistant cable---800-1000 degrees
Insulation: fiberglass + mica wrapping + fiberglass braiding
Fiberglass braid high temperature insulated heat resistant wire Operating temperature range
GN500 bare copper wire conductor-fire-resistant cable---500 degrees
GN600 nickel-plated copper wire-fire-resistant cable---600 degrees
GN800 pure nickel wire-fire-resistant cable---800-1000 degrees

Fiberglass braid high temperature insulated heat resistant wire Scope of application: widely used in electromagnetic heating coils, metallurgy, petroleum, chemical industry, oil refining, natural gas and other special environments, various machinery manufacturing fields, required wires and cables in various electrical devices that require fire protection properties, and various electric heating Equipment, electric heating devices, etc.
