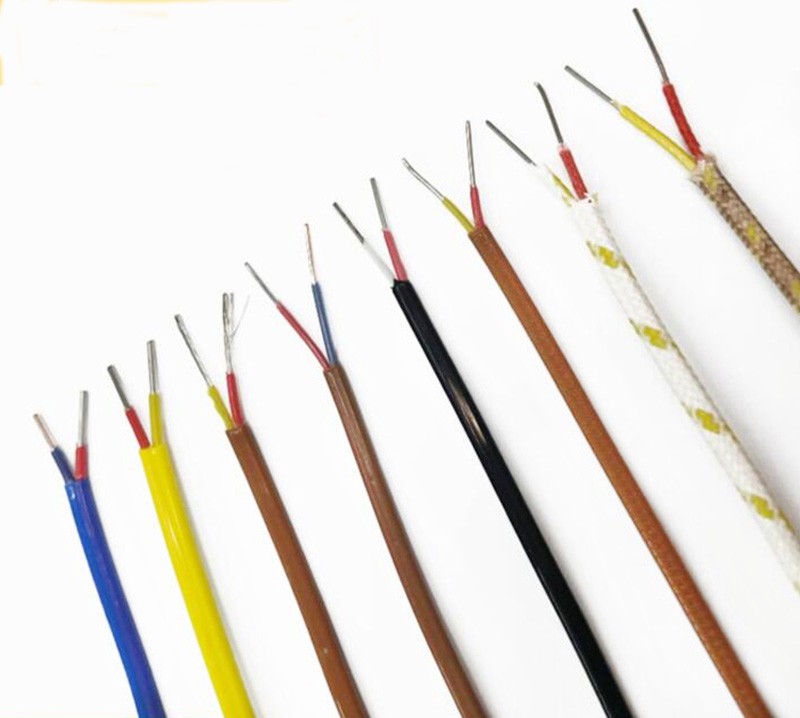

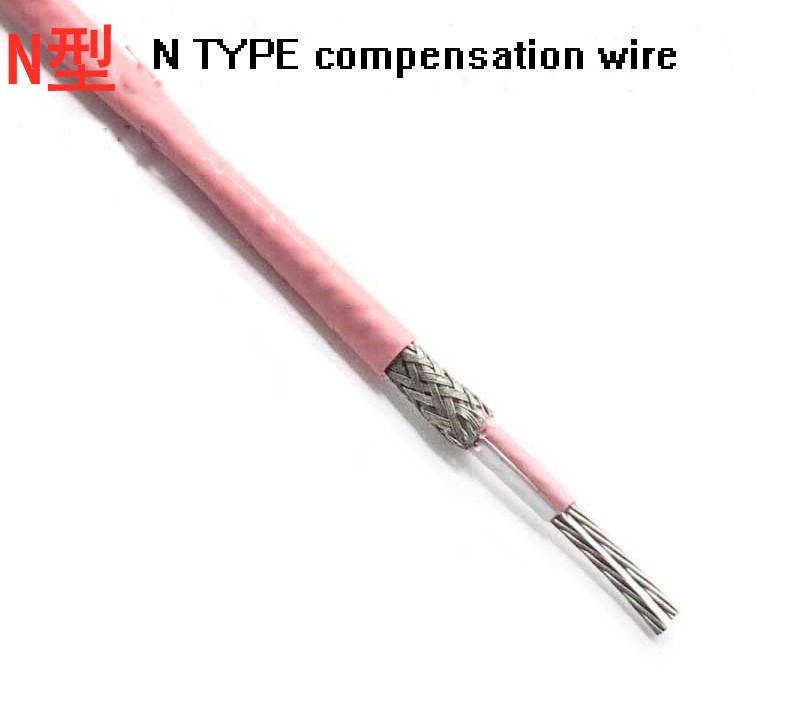

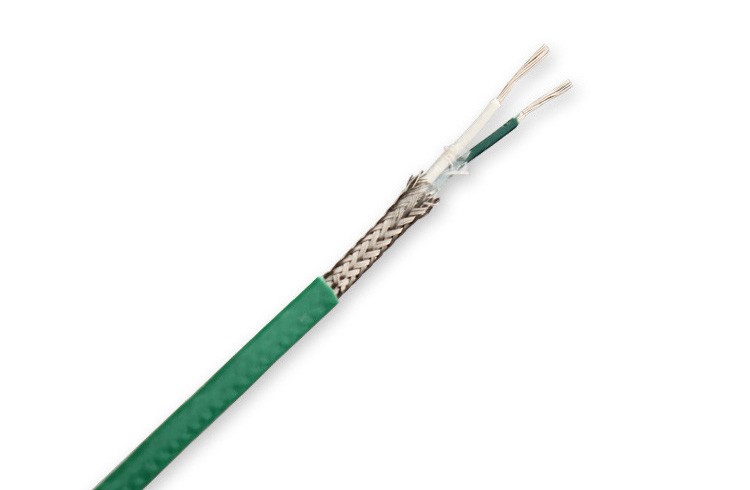

F46 F40 F26 FEP ETFE PFA Fluoroplastic high temperature resistant compensation wire have good high temperature resistance and can work in harsh environments with corrosive gases between -40°C and 200°C for a long time. It also has the characteristics of acid and alkali resistance, oil resistance and aging resistance, which can effectively ensure the connection and signal transmission between the thermocouple and the instrument. thermocouple compensation wire has been widely used in temperature measurement fields such as electric power, metallurgy, petroleum, and chemical industry,another heat resistance wire Glass fiber braided high temperature resistant compensation wire.
Compensation lines are divided into SC, KC, BC, NC, KX, EX, JX and WC3/25, WC5/26, etc./ according to varieties. The letter "C" represents the compensation type and "X" represents the extension type.
|
Equipped with thermocouple |
Graduation mark |
Compensation wire model |
Insulation and sheathing materials |
temperature range |
|
Nickel chromium-nickel silicon |
K |
KX-HFF |
F46 |
-40℃ to 200℃ |
|
Platinum Rhodium 10-Platinum |
S |
SC-HFF |
F46 |
|
|
Nickel-Chromium-Constantan |
E |
EX-HFF |
F46 |
|
|
Iron-Constantan |
J |
JX-HFF |
F46 |
|
|
Copper-Constantan |
T |
TX-HFF |
F46 |
When ordering, you must indicate the model, specifications, core cross-section, number of cores, shielding method and quantity
F46 F40 F26 FEP ETFE PFA Fluoroplastic high temperature resistant compensation wire code and meaning:
|
project |
code name |
Code meaning |
project |
code name |
Code meaning |
|
model |
SC |
Equipped with S index thermocouple compensation type compensation wire |
Heat resistance grade |
70℃ |
The maximum operating temperature is 70℃ |
|
RC |
Equipped with R index number thermocouple compensation type compensation wire |
105℃ |
The maximum operating temperature is 105℃ |
||
|
NC |
Equipped with N-gradation thermocouple compensation type compensation wire |
200℃ |
The maximum operating temperature is 200℃ |
||
|
NX |
Equipped with N-gradation thermocouple compensation type compensation wire |
275℃ |
The maximum operating temperature is 275℃ |
||
|
KCA |
Equipped with K index thermocouple compensation type compensation wire |
Insulation Materials |
PVC |
PVC |
|
|
KX |
Equipped with K index thermocouple compensation type compensation wire |
G |
Silicone Rubber |
||
|
EX |
Equipped with E-grading thermocouple compensation type compensation wire |
PP |
polypropylene |
||
|
JX |
Equipped with J index number thermocouple compensation type compensation wire |
F4 |
PTFE |
||
|
Tx |
Equipped with T-grading thermocouple compensation type compensation wire |
F46 |
polyperfluoroethylene |
||
|
Series code |
ZR |
Flame retardant cable |
Sheath material |
PVC |
PVC |
|
ia |
Intrinsically safe cable |
G |
Silicone Rubber |
||
|
Use categories |
G |
General use |
F4 |
PTFE |
|
|
H |
For heat resistance |
F416 |
polyperfluoroethylenepropylene |
||
|
Accuracy level |
S |
Precision level |
shielding material |
|
Can be omitted without shielding |
|
P1 |
tinned copper wire |
||||
|
/ |
Ordinary level |
P3 |
Aluminum plastic composite tape |
||
|
P2 |
Copper-plastic composite tape or copper tape |
||||
|
Specification |
|
2×Conductor cross-sectional area mm2 |
Conductor type |
|
Single strand conductor can be omitted |
|
R |
Stranded conductor |
F46 F40 F26 FEP ETFE PFA Fluoroplastic high temperature resistant compensation wire Technical indicators:
1. Model, alloy wire material and insulation color
|
Compensation wire model |
Equipped with thermocouple |
Thermocouple index number |
Compensation wire alloy wire |
Insulation coloring |
||
|
positive electrode |
negative electrode |
positive electrode |
negative electrode |
|||
|
SC |
Platinum Rhodium 10-Platinum Thermocouple |
S |
SPC (copper) |
SNC (copper nickel) |
red |
green |
|
RC |
Platinum Rhodium 13-Platinum Thermocouple |
R |
RPC (copper) |
RNC (copper nickel) |
red |
green |
|
KCA |
Nickel chromium-nickel silicon thermocouple |
K |
KPCA (Bronze) |
KNCA (Constantan) |
red |
blue |
|
KCB |
KPCB(iron) |
KNCB (copper nickel) |
red |
blue |
||
|
KX |
KPX (nickel chromium) |
KNX (Nickel Silicon) |
red |
black |
||
|
NC |
Nickel Chromium Silicon-Nickel Silicon Thermocouple |
N |
NPC (Iron) |
NNC (copper nickel) |
red |
Ash |
|
NX |
NPX (nickel chromium silicon) |
NNX (nickel silicon) |
red |
Ash |
||
|
EX |
Nickel Chromium-Copper Nickel Thermocouple |
E |
EPX (nickel chromium) |
ENX (copper nickel) |
red |
brown |
|
JX |
Iron-Copper Nickel Thermocouple |
J |
JPX(iron) |
JNX (copper nickel) |
red |
purple |
|
Tx |
Copper-Copper Nickel Thermocouple |
T |
TPX(copper) |
TNX (copper nickel) |
red |
white |
|
Use categories |
Accuracy level and marking |
Sheath coloring |
|||
|
Ordinary level |
Precision level |
Ordinary level |
Precision level |
||
|
General use |
G |
/ |
S |
black |
grey |
|
For heat resistance |
H |
/ |
S |
black |
yellow |
If you have a K-type compensation wire on site and are pursuing cost-effectiveness, this K-type is suitable for your use,K type Thermocouple cable KX/PVC/OSC/PVC.
