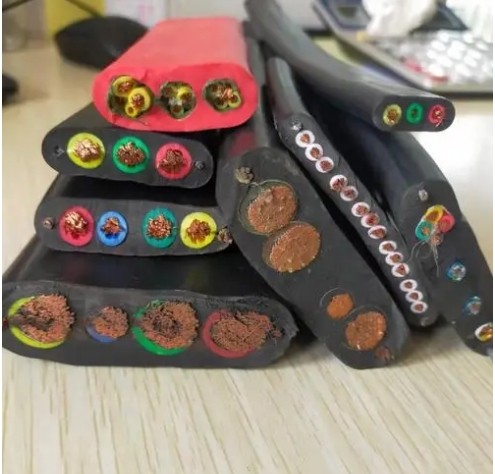

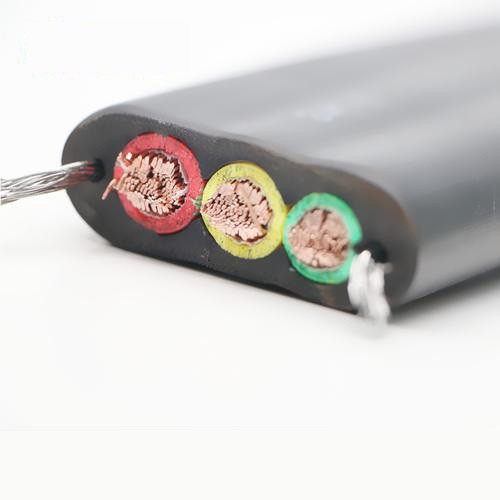

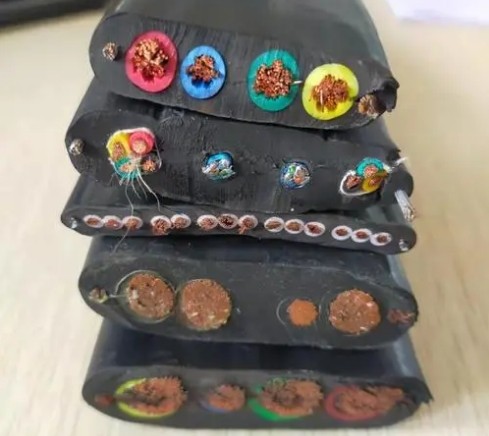

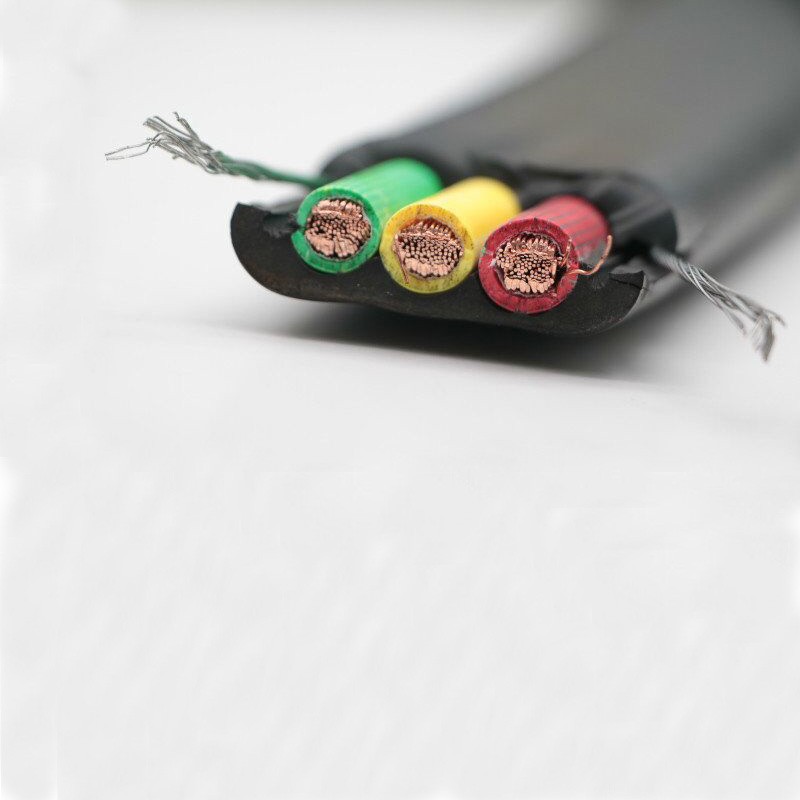

YVFBG Flat ribbon power cable with tensile steel wire

YVFBG Flat power cable with tensile steel wire widely used in mobile equipment such as cranes, trolleys, and transmission machinery. Industries such as metallurgy, electric power, shipping, logistics and transportation systems, and port machinery. The product is cold-resistant, soft, abrasion-resistant, and oil-resistant. The most important feature is that the built-in steel wire has good tensile effects. The bending radius is smaller than that of round cables, saving installation space. When the flat cable core wires are arranged in a single row and in a line: suspension length>40m, moving speed>2m/s, it is recommended to add load-bearing steel wire or spun yarn, the model is YVFBG flat cable,high temperature cable,YGGB YGCB silicone rubber flat cable.

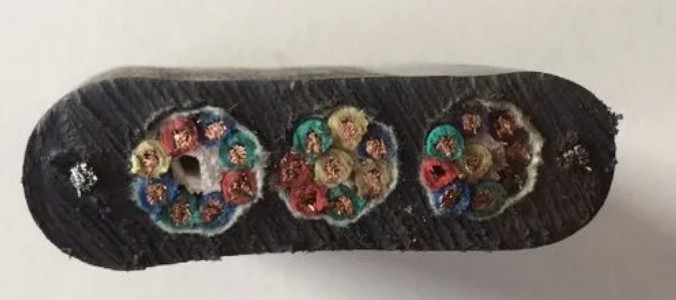

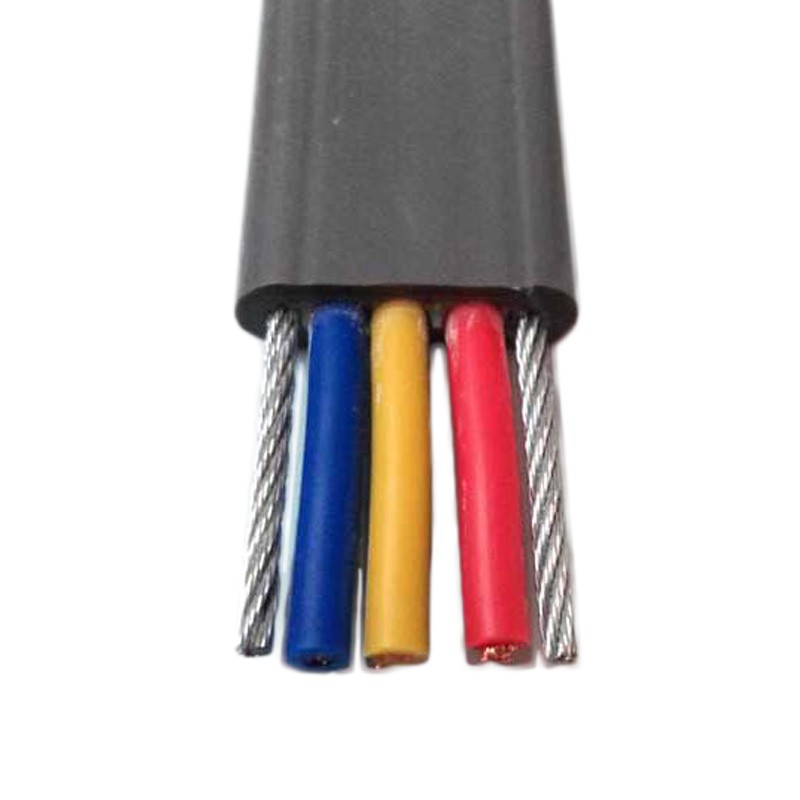

YVFBG Flat power cable with tensile steel wire structure:

Conductor: Multi-strand flexible oxygen-free copper wire meets DIN VDE 0295 level
Insulation: high-quality oil-resistant, flame-retardant nitrile PVC mixture, color: colored core or coded core, after more than 5 cores, G grounding yellow-green core

Sheath: high-quality oil-resistant, flame-retardant nitrile PVC mixture, color: black or gray

YVFBG Flat power cable with tensile steel wire Main Specifications
1. Finished cable conductor (R type) DC resistance (in line with GB3956 regulations).
2. The insulation resistance is not less than 50MΩ/KM at 20℃.
3. The finished cable does not break down when subjected to AC 50HZ3.5KV/5min voltage test.

YVFBG Flat power cable with tensile steel wire size

YVFBG Flat power cable with tensile steel wire can guarantee 1 million times of uninterrupted core bending under the state of no external force movement; operating temperature -10~80°C; mobile installation bending radius 15 times the cable outer diameter, fixed installation 7.5 times the cable outer diameter,.
