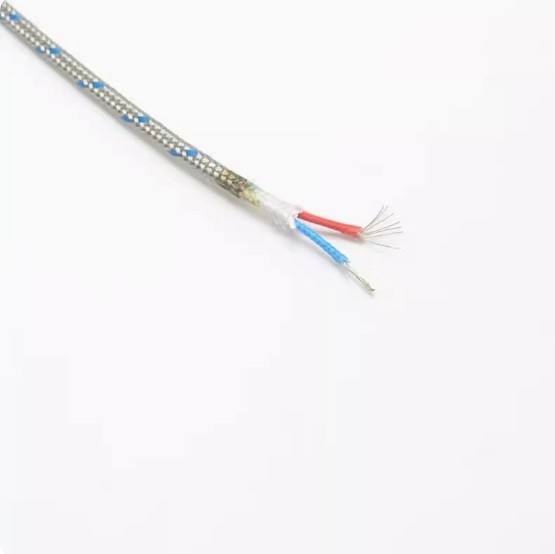

high temperature resistant compensation wire

The function of the Glass fiber braided high temperature resistant compensation wire is to extend the hot electrode, that is, the cold end of the mobile thermocouple, and connect it with the display instrument to form a temperature measurement system. The fiberglass braided high-temperature-resistant compensation wire adopts the national standard GB/T 4989-94 "Compensation Wire for Thermocouples" (equivalent to the IEC584-3 "Thermocouple Part 3 - Compensation Wire" standard), and the insulation layer and sheath are imported. High quality fiberglass woven and impregnated with paint. Operating temperature - 60-260°C. The product is mainly used in various temperature measurement devices and has been widely used in petroleum, chemical industry, metallurgy, electric power and fire protection and other departments.

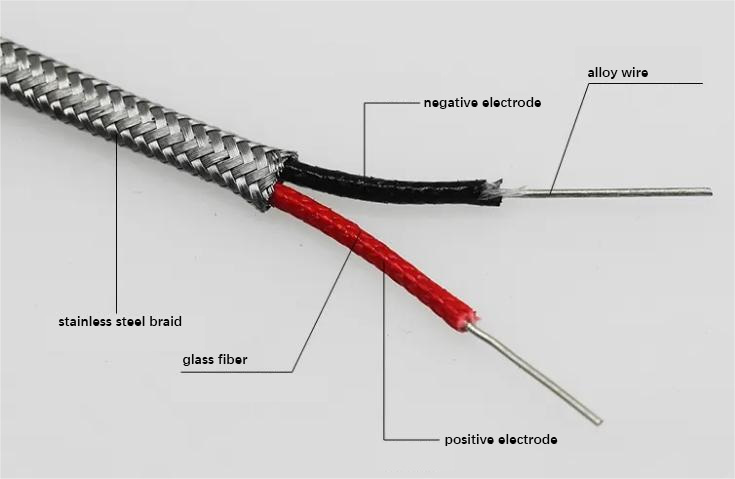

Glass fiber braided high temperature resistant compensation wire structure

The conductor material is: compensation wire alloy wire, K type, S type and other high temperature types
Measuring temperature: 0-800℃
Insulation sheath material: polytetrafluoroethylene + glass fiber braid
Ambient temperature resistance: 0-400℃
Note: Good fire resistance and high temperature resistance, glass fiber high temperature compensation wire

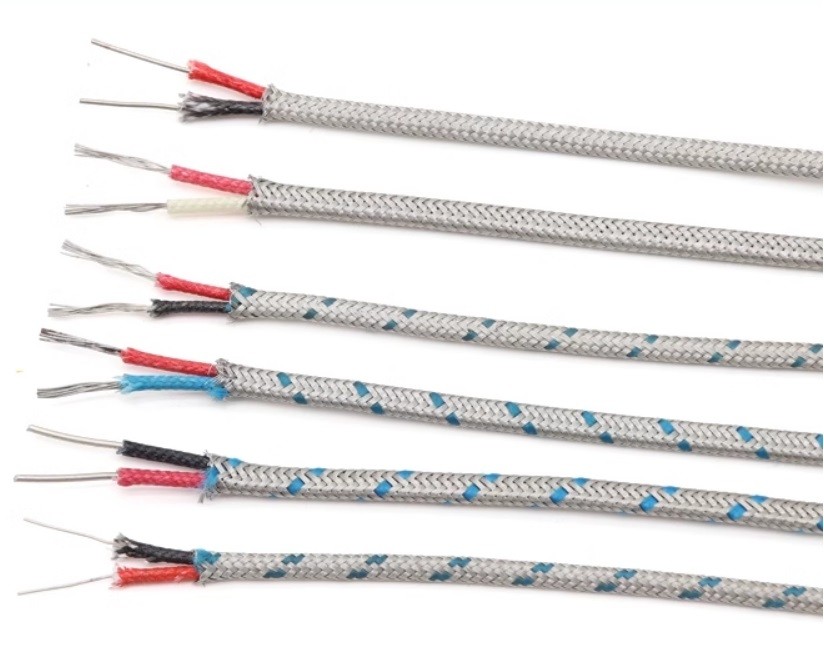

Common compensation wire models

Product specifications:
KX-HF4P2×1.5mm2
Conductor material: nickel chromium + nickel silicon
Measuring temperature: 0-1200℃
Insulation sheath material: polytetrafluoroethylene + glass fiber braid
The outer sheath is a metal shield
Ambient temperature resistance: 0-400℃
High temperature resistance and anti-static interference properties

Product specifications:
EX-HF4P2×1.5mm2
Conductor material: nickel chromium + nickel silicon
Measuring temperature: 0-800℃
Insulation sheath material: polytetrafluoroethylene + glass fiber braid
The outer sheath is a metal shield
Ambient temperature resistance: 0-400℃
High temperature resistance and anti-static interference properties

Product specifications:
KC-HF4P2×1.5mm2
Conductor material: nickel chromium + nickel silicon
Measuring temperature: 0-1000℃
Insulation sheath material: polytetrafluoroethylene + glass fiber braid
The outer sheath is a metal shield
Ambient temperature resistance: 0-400℃
High temperature resistance and anti-static interference properties

Product specifications:
SC-HF4P2×1.5mm2
Conductor material: nickel chromium + nickel silicon
Measuring temperature: 0-1600℃
Insulation sheath material: polytetrafluoroethylene + glass fiber braid
The outer sheath is a metal shield
Ambient temperature resistance: 0-400℃
High temperature resistance and anti-static interference properties

K type Thermocouple cable KX/PVC/OSC/PVC

Glass fiber braided high temperature resistant compensation wire specifications
