Special pvc flat cable H05VVH6-F

special pvc flat cable H05VVH6-F can be used as power and control cables, installed on cable tracks, handling machines, used in buildings, transportation systems, cranes, elevators, etc., suitable for severe bending and reciprocating motion occasions, and can withstand medium stress,NGFLGÖU-J Special Neoprene rubber flat cable.
special pvc flat cable H05VVH6-F Advantage
Flat cables require less space than round cables
Smaller bending radius

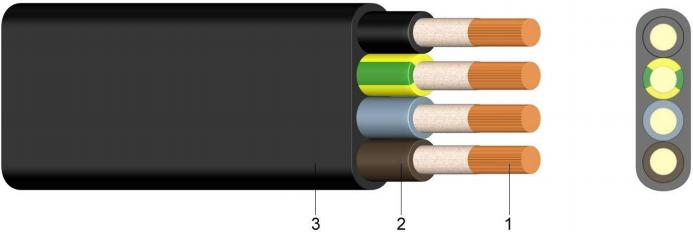

special pvc flat cable H05VVH6-F structure

1,Multiple strands of finely twisted strands of thin bare copper wire conductor, (conductor stranded, U0/U 300/500 V type, the filament conforms to VDE 0295 category 5 or IEC 60228 category 5 standards,U0/U 450/750 V type ultra-fine wire conforms to VDE 0295 category 6 or IEC 60228 category 6 (nominal conductor cross-section 10 mm²: fine stranded wire/category 5)
2,Core insulation: PVC (color can be customized according to customer requirements)
3,Outer sheath: PVC (color can be customized according to customer requirements)

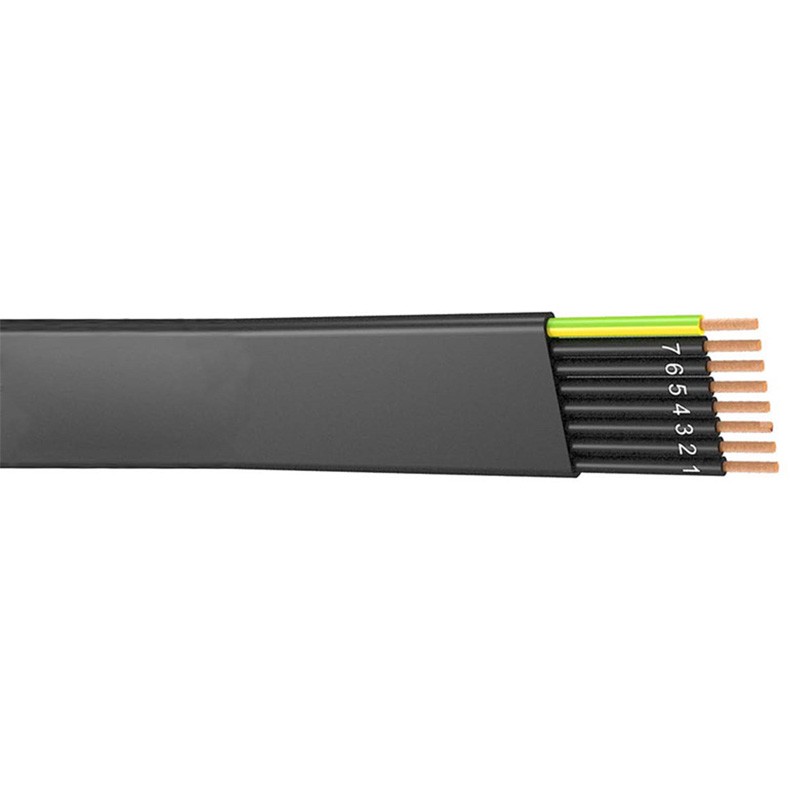

Core identification
≤ 5 cores: in line with VDE 0293-308 standard,6 cores and above: black cores and white numbers

special pvc flat cable H05VVH6-F characteristic

1，Bending radius
Flexible application: 10 × cable thickness
2，Rated voltage
≤ 1.0mm²: U0/U: 300/500 V
≥ 1.5 mm², U0 / U: 450 / 750V
3，Test voltage:3000 V

4，Grounding protection core wire

G = with yellow-green grounding protection core wire

X = without yellow-green grounding protection core wire,

5，Mobile applications: 0 °C to +70 °C (under 1.0 mm²),  -15 °C to +70 °C (above 1.5 mm²)

6，Conforms to VDE standard, can be used as elevator control cable, drape height can reach 35 m, running speed can reach 1.6 m/s
